Foot Inductive Switch

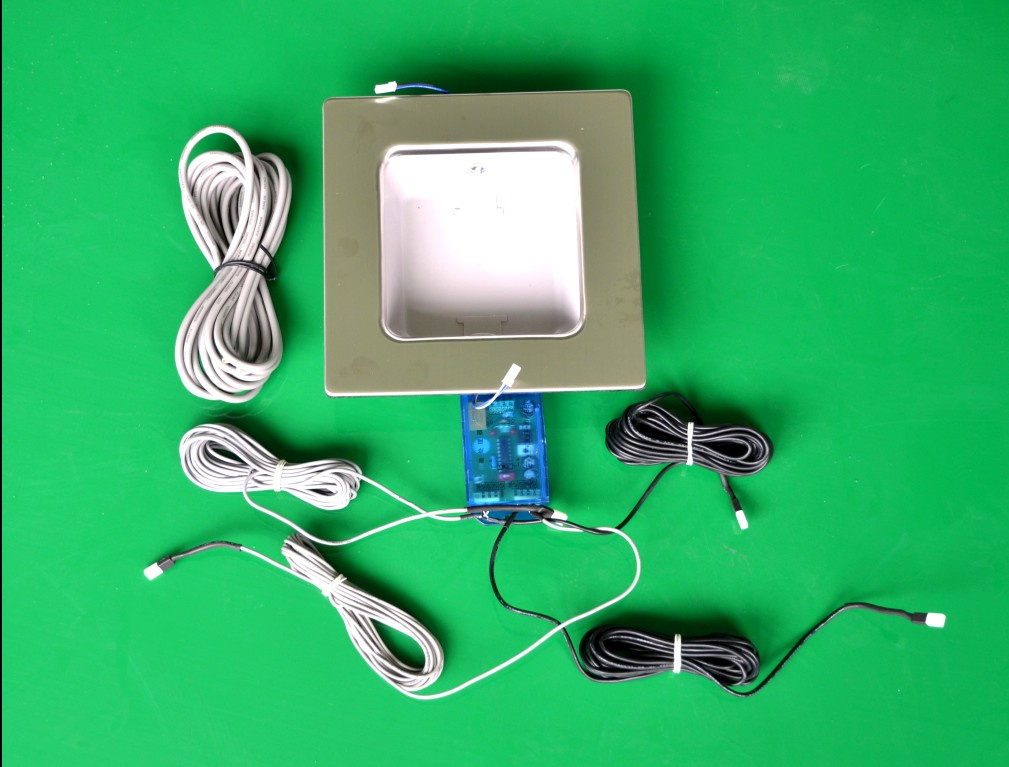

Name: Foot Inductive Switch
Brand: all-electronics-online.com
SKU: 695924802
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FIS-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Deper
Single Or Double Beam:	Double
Standard:	Standard
Size:	120 Type
Type:	Infrared Sensor Switch
Certification:	CE
Principle:	Infrared
Wires:	Two-Wires
Application:	Hospital

Product Description

Description
In some special places, foot induction mode is more convenient ,user cuts the beam to open the door.
Technical data

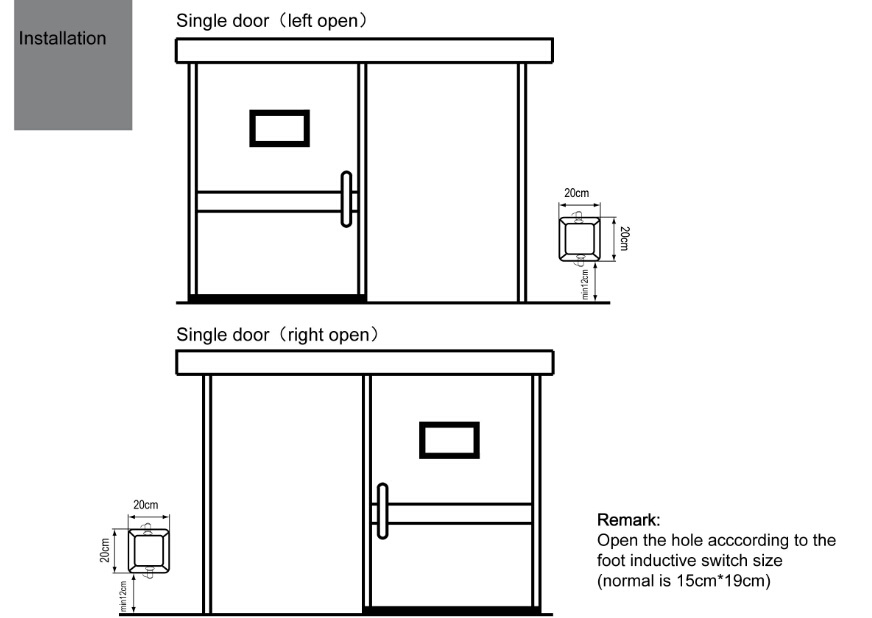

Installation hight: min 0.1m above the floor
Distance between beam: min 0.1m (reverse the beam)
Distance to the door face: 30 cm
Min range: 20 cm
Max range: 100 cm (installed at height 0.2m)
avertence angle : 8 °
Detection mode: cut off beam
Reaction time ( relay output): <40ms
Hold time (relay output): 300ms
Power voltage: DC 12-24 V
Power consumption: < 1w
Single display: each beam has a light on the controller box
Adjustment: twist the angle
Enviroment temperature: -20~ +50 ºC
Wire length: 5m
