| Power Consumption: |
82mA |
| Supervisory Signal: |
4.5mA |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Size: |
118 Type |
| Certification: |
CE |
| Application: |
Hospital |
Product Description
The Overall Characteristic of Foot Sensor Switch for Automatic Doors:
▪Adopt microcomputer control with exquisite design of stainless steel wire cover.
▪Installation with hidden screw hole, easy to be fixed and stable performance.
▪Widely be used in the operating room of hospital and laboratory to prevent hand pollution.
▪Detection mode: Receive the open signal by the truncation of infrared ray which operated by foot.
▪Active infrared ray of modulation-demodulation controlled by microcomputer.
▪This product widely be used in the operating room of hospital and laboratory. Featured with user-friendly control and preventing the hand pollution.
Working Principle of Foot Sensor Switch for Automatic Doors
* Tiptoe enter → the light beam will be cut off → signal is triggered → the door will open automatically → lock the door
Device Composed
a) Controller
b) Thur-beam
c) Connection cable
d) Bracket

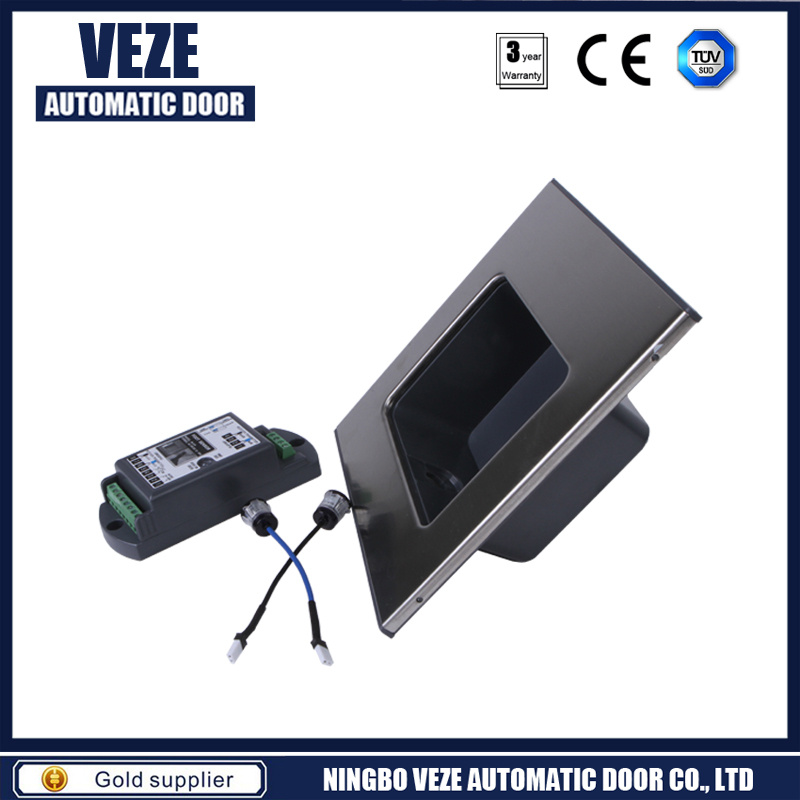

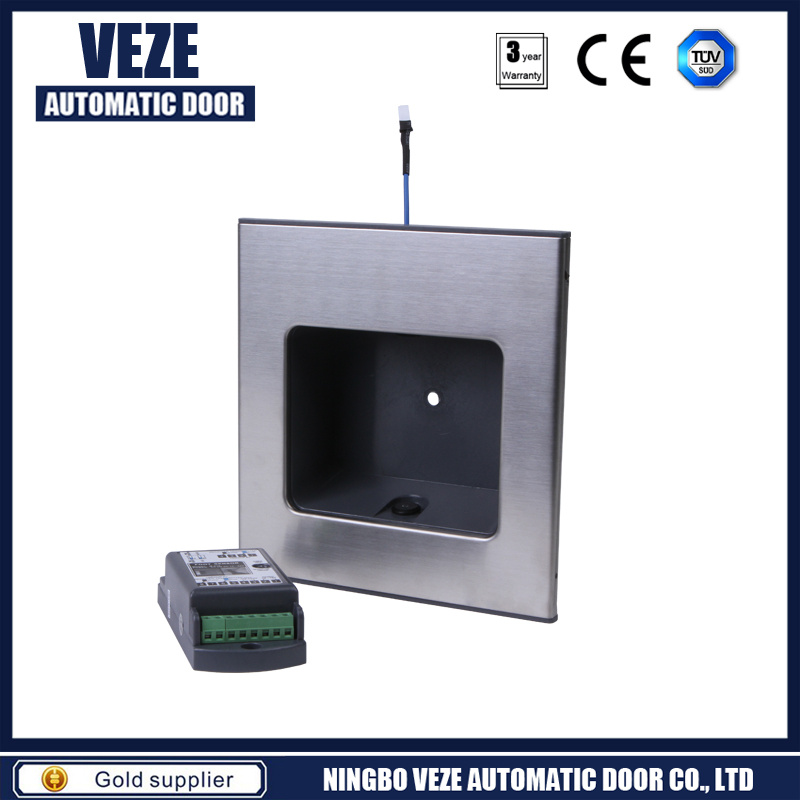

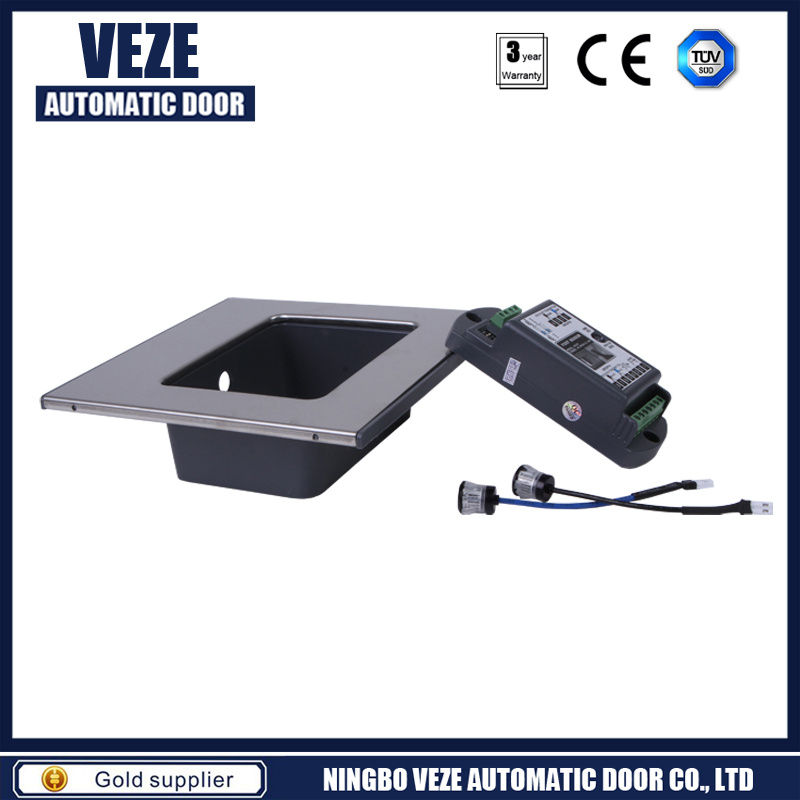

Picture of Foot Sensor Switch for Automatic Doors
The Main Technology Parametric
•Technical measures: Active infrared ray of modulation and demodulation
•Detection mode: Truncation of infrared ray by foot operated to produce the open signal.
•Recommended installation height: 0.3 m height from the ground.
•Reaction time: relay output ≤45ms
•Supply power: AC/DC 12-36V
•Power consumption: 82mA
•Supervisory signal: 4.5S MA
•Signal direction: Indicator with red light when infrared ray emitted and received effectively. Indicator with green light when the infrared ray truncated by foot operated.
•Operation temperature: -20ºC~+55ºC
•Interference immunity: Sunlight 81000LUX
•Incandescent lamp: 36000LUX
•Electric Microwave: Consist with 89/336/CEE criteria
•Appearance dimensions:
123(L)×50(W)×32(H)mm ( Main controller)
19mm×13mm(Electric eyes)
186mm×175mm×53mm(Bracket)
•Output signal: Relay NO signal contact
•Total Weight: About 1000G

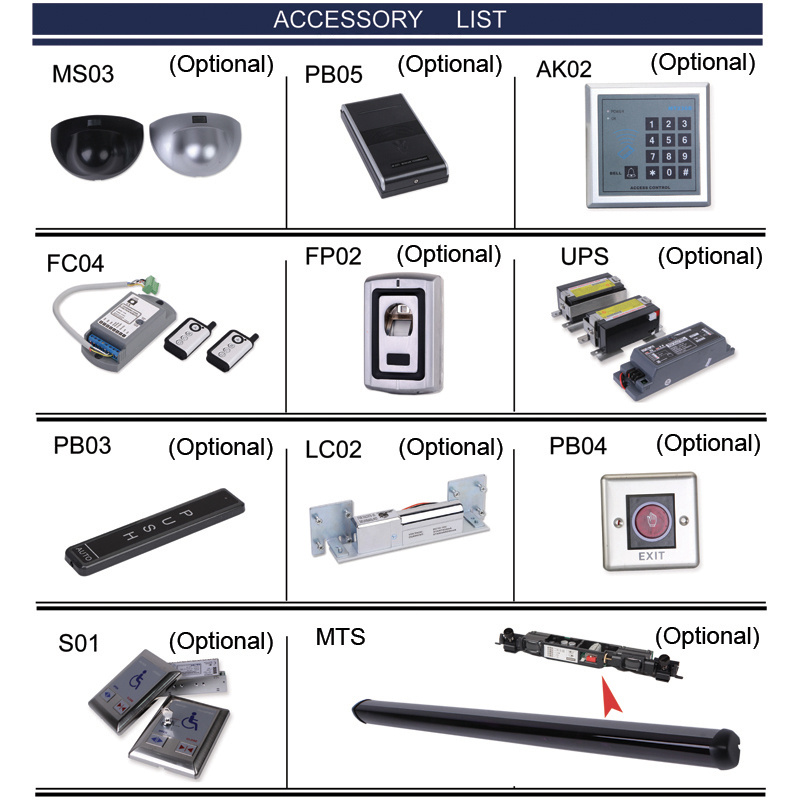

Accessory List & Optional Parts
Other Automatic Doors Accessories
1. Operation
The automatic door operator is to be fully electronic operator, housed in a fully anodised aluminum transom section.
2.Controller
The intelliget controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.
3.UPS
The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.
4.Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.
5.Tracking
The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.
6.Locking
Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.
