| Prod Model: |
AF-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coil Number: |
Autotransformer |
| Rated Frequency: |
50/60Hz |
| Rated Voltage: |
0.72kv |
| Hole Dia: |
22mm |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

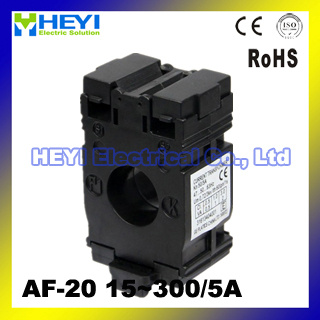

Description:The AF-20 Mini Current Transformer is a world famous mini design plastic current transformer, snap on body, be widely used in generators.
Features1) it's a kind compact current transformer, supplied with DIN rail clip and intergral hinged terminal cover.
2) The electrical transformer has a 22mm diameter aperture and is available with primary currents from 15A to 250A.
3) It complies with ICE60044-1, GB1208-2006.
Specification
Type |
Rated CurrentA | Rated Burden(VA) | Accuracy Class |
| AF-20 | 30/5 |
| 1 |
| 40/5 |
| 1 |
| 50/5 | 1 | 1 |
| 60/5 | 1 | 1 |
| 75/5 | 1.5 | 1 |
| 80/5 | 1.5 | 1 |
| 100/5 | 2.5 | 1 |
| 125/5 | 2.5 | 0.5 |
| 150/5 | 3 | 0.5 |
| 200/5 | 5 | 0.5 |
| 250/5 | 5 | 0.5 |
| 300/5 | 5 | 0.5 |
Rated Frequency | 50/60Hz |
| Rated test voltage | 3kV AC. (1 min) |
| Rated short-time thermal current(Ith) | 60In |
| Rated dynamic current, (Idyn) | 2.5Ith |
| Rated voltage,(Um) | 0.72Kv AC. |
| Continuous overload,(Id) | 1.2In |
| Operating temperature | -10°C~50°C |
| Housing self-extinguishing class | VO |
| Safety factor FS | FS 5 |
| Secondary current | 5A/1A |
How to Order?1.
Please let us know what kind of model, like Mes-40 100/5A.2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 6-10 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
