Force Sensor Jc-Ck01 (01) , Flat-Diaphragm Pressure Sensor, Force Pressure Sensor, High Temperature High Accuracy Pressure Sensor

Name: Force Sensor Jc-Ck01 (01) , Flat-Diaphragm Pressure Sensor, Force Pressure Sensor, High Temperature High Accuracy Pressure Sensor
Brand: all-electronics-online.com
SKU: 836842235
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 62-90/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC-CK01(01)
Measuring Medium:	Gas Liquid

Product Description

Features AND Application

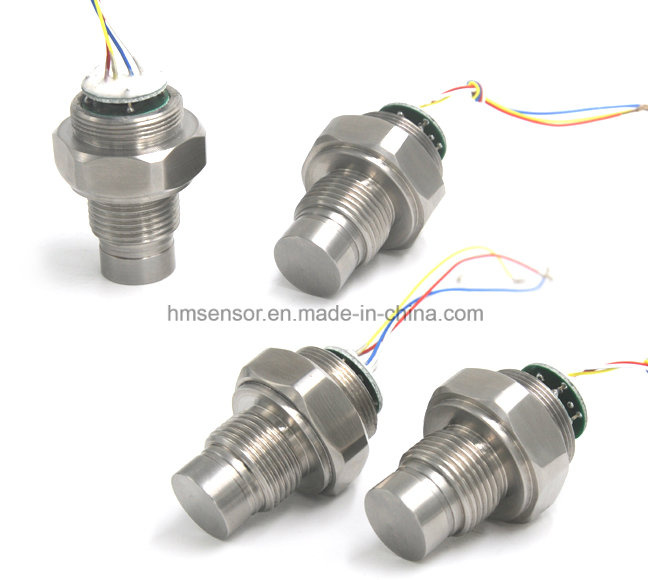

JC-CK01(01) cavity-free (flush film) force sensor using high-precision foil strain gauge, no cavity measuring diaphragm, especially for measuring the viscosity of the liquid. Has a good anti-vibration ability. Can be equipped with a variety of unique amplifier circuit, such as anti-interference type, high temperature type, intrinsically safe explosion-proof, etc., especially for oil field logging, pharmaceutical, textile and the other viscous industrial site which is easy to be pulgged, and has been applicated very well in the domestic oil field.

Product Features Product Application
*High temperature, high pressure * Oil downhole equipment
*High accuracy, high stability * Aerospace
*Anti-vibration, anti-impact, corrosion-resistant * Medicine, biochemistry, fermentation system
stainless steel structure * Other automatic control and testing system

Product Specifications

Measuring medium	Gas and liquid compatible with stainless steel
Measuring range	0~1MPa,5MPa…200MPa
Pressure type	Gauge pressure
Overload pressure	1.35times(≤15MPa); 1.2times(≥15MPa)
Destroy stress	2times(≤10MPa); 1.5times(≥10MPa)
Power Supply	5~10V
Signal output	1~2mV/V
Accuracy	0.5%FS;0.25%FS;customized
Zero temperature error	0.5%FS/10ºC
Full-scale temperature error	0.5%FS/10ºC
Compensated temperature	O~85ºC
Operating temperature	-20~85ºC
Insulation resistance	≥500MΩ
Load capacity	≥[(power voltage-6.5V)/0.02A]Ω
Thread	M20×1.5,NPT1/2,customized
Electrical Interface	DIN plug;Aviation plug;direct lead, customized
Mechanical life	≥5 millions Pressure cycle
Long-term stability	≤±0.25%FS/year

Ordering information

JC-CK01(01) Force sensor
	Code	Pressure range	Pressure type
	17K	17KPa	G
	35K	35KPa	G
	70K	70KPa	G
	100K	100KPa	G,A
	200K	200KPa	G,A
	350K	350KPa	G,A
	700K	700KPa	G,A
	1.4M	1.4MPa	G,A,S
	2.1M	2.1MPa	G,A,S
	3.5M	3.5MPa	A,S
	7M	7MPa	A,S
	17M	17MPa	A,S
	35M	35MPa	A,S
	60M	60MPa	A,S
		Code	Power Supply
		C	1.5mA
		V	5V(TYP),customized
			Code	Temperature compensation method
			R	Resistance compensation
				Code	Electrical connections
				2	Silicone rubber flexible wire

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

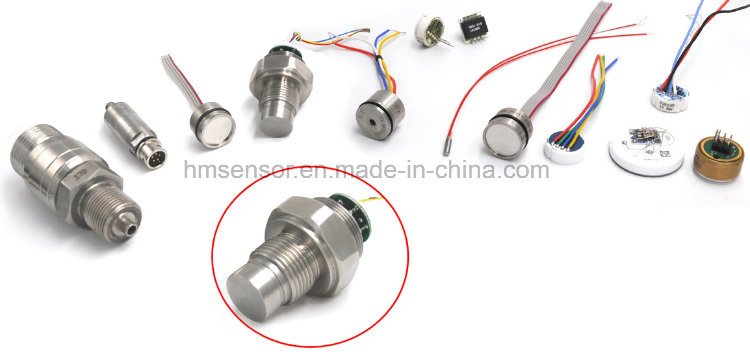

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
