Fourth Generation Fuel Level Sensor Fuel Consumption Monitoring

Name: Fourth Generation Fuel Level Sensor Fuel Consumption Monitoring
Brand: all-electronics-online.com
SKU: 698000902
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	US $ 80/Piece
Trade Terms:	FOB,CIF,CPT
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Fuel Level Sensor
Overall Dimension:	100mm to 1500mm
Collection Principle:	Capacitance
Power Consumption:	0.13W/5V, 0.19W/12V, 0.38W/24V
Use Of The Environment:	Work Temperature:-40c~+80c
Detection Of Liquid Type:	Diesel, Bio Diesel, Kerosene, Gasoline, etc.
Type:	Capacitance
Output Signal Type:	Ditital/Analog, RS232/RS485
Feature:	High Precision
Material:	Aluminum Alloy
Certification:	CE, FCC

Product Description

fourth generation Fuel level sensor fuel consumption monitoring

Products Introduction.

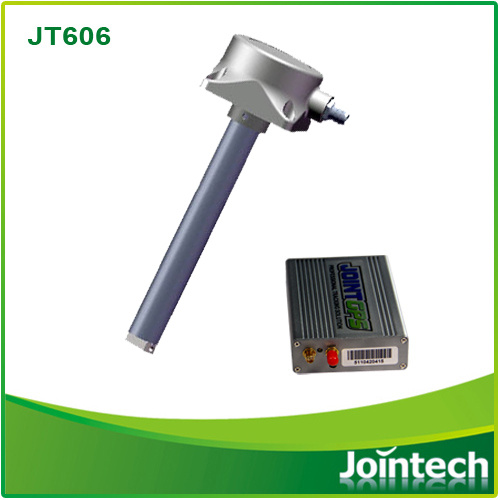

JT606X is our fifth generation fuel sensor for fuel level detecting and fuel consumption monitoring. It is on the basis of the fourth generation of JT606, add more function such as: higher waterproof performance, avoid human damage factor, convenient colibration.

Product parameter:

Item	Performance parameters
Collection principle	Capacitance
Size	100mm to 1500mm
Electrical parameters	Input DC:4-70V
Power Consumption	0.13W/5V, 0.19W/12V, 0.38W/24V
Signal output (can be customized)	Voltage output:0-5V /Digital output:RS-232 \RS-485 /Analog resistant output:10-500Ω /Current output: 4-20mA
Communication baud rate	2400,4800,9600,57600,115200
Detection of liquid type	Diesel, bio diesel, kerosene, gasoline, etc.
Material	Aluminum alloy
Protection class	IP67

Product features:

Capacitance fuel sensor, with high accuracy 0.5% and high resolution 1mm
Can be cut off freely in spot to match with different size fuel tank
Easy installation, just need to drill one hole on the fuel tank
Multiple output: RS232, RS485, Voltage (0-5V), Current (4-20mA), Resistance (10 ~ 500Ω)
Wide range power input: 4-70V

Our software for real time fuel consumption monitoring.

Real time fuel level data, such as: remained fuel level, fuel fuel consumption chart.
Alarm function, low fuel level alarm, abnormal fuel consumption alarm, device damaged alarm, etc.
management report, include adding times, adding fuel volume, abnormal times. You can download it to excel document.

Application:

It is widely used for remote fuel consumption monitoring and management, such as:
Logistics fleet
truck fleet
heavy machin
Base station generator
