FPC Flex PCB 0.15mm Board Thickness with Yellow Soldermask
| Price: |
US $ 0.56/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-276-V2.76 |
| Board Thickness: |
0.15mm +/-10% |
| Tg Value Of Board Material: |
60ºC |
| Surface Finish: |
Immersion Gold |
| Surface Cu Thickness: |
Surface Cu Thickness |
| Coverlay Colour: |
Yellow, 25 Um |
| Color Of Silkscreen: |
White |
| Mininum Trace (Mil): |
4 Mil |
| Minimum Gap(Mil): |
4 Mil |
| RoHS Required: |
Yes |
| Workmanship: |
Compliance with Ipc-a-600h & Ipc-6013c Class 2 |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Wi Fi Antenna |
Product Description

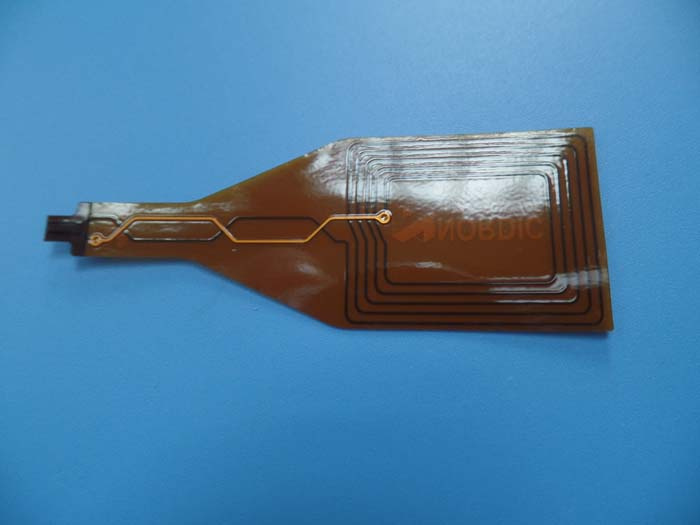

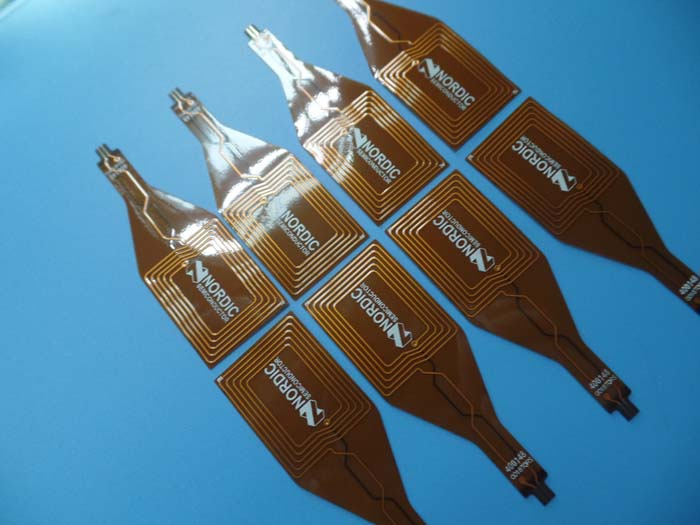

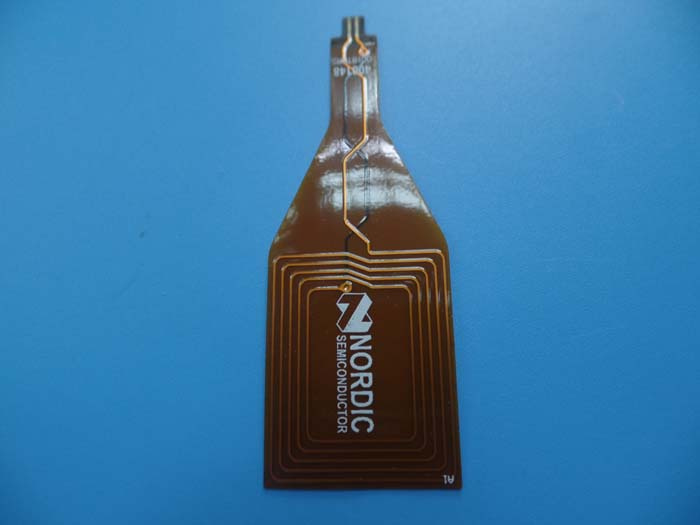

Fpcb 2 Layer Flexible circuit board with Immersion Gold FPC in Wi Fi Antenna
Commodity Introduction
This is a type of flexible printed circuit for the application of Wi Fi Antenna. It's a 2 layer board at
0.15mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using suppli
-ed Gerber data. Immersion gold is applied on the pads. Stiffner is applied on the connector part.
Parameters & Data Sheet| Number of Layers | 2 |
| Board Type | Flexible Circuit |
| Board Thickness | 0.15mm +/-10% |
| Board Material | Polyimide (PI) 50 um |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | ≥20 um |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 um |
| Stiffener | 200 um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 4 mil |
| Minimum Gap(mil) | 4 mil |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds,3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H&IPC-6013C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 21.120 | 21.110 | 21.500 | 21.120 | 22.120 | 21.120 | 21.348 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 21.15 | ±0.13 | 21.12 | 21.14 | 21.15 | 21.13 |
| 2 | 58.93 | ±0.13 | 58.92 | 59.91 | 58.93 | 58.92 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.500 | ±0.075 | Y | via | via | via | via |
The Stackup of FPCB with 0.5mm Polyimide 1oz by Bicheng
Learn PCB and Buy PCB
Metal core PCB, LED PCB
Metal core PCB's are thermal management circuit boards which use a base metal material as the
heat dissipater part of the PCB. They are used in high heat generating application like LED lighting
in the area of high power LED lighting, Automotive Interior, Exterior Lighting,Parking Garage
Lighting, LED spot light etc.
Bicheng provides metal core PCB (MCPCB) as follows:
1) Single sided, double sided and multi layers.
2) Insulated metal substrate (IMS PCB) and Metal core PCB (MCPCB)
3) High thermal conductivity to 3W/MK
4) Heavy copper up to 4oz
5) Proceeding thickness: 0.4-6.0mm thick
6) Plate through hole (PTH≥20μm)
7) BGA (minimum pad at 14 mils), Impedance control (+/-10)
8) V-Groove, Punch, CNC mill
9) Long strips, composite aluminum
10) ENIG, HASL, OSP and Immersion tin
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
