FPC Heavy Copper 2 Oz Flexible PCB with Yellow Soldermask
| Price: |
US $ 0.61/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-1827-V16 |
| Board Thickness: |
0.30mm |
| Copper Thick: |
70 Um |
| Coverlay Colour: |
Yellow |
| Stiffener Thickness: |
0.2mm |
| Color Of Silkscreen: |
White |
| Peeling Test Coverlay: |
No Peeling |
| Surface Finish: |
Immersion Gold |
| RoHS Required: |
Yes |
| Function: |
100% Passed Test |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
AC Power Source |
Product Description
FPC Heavy Copper 1.5 oz Flexible PCB with Yellow soldermask and Immersion Gold
Commodity Introduction

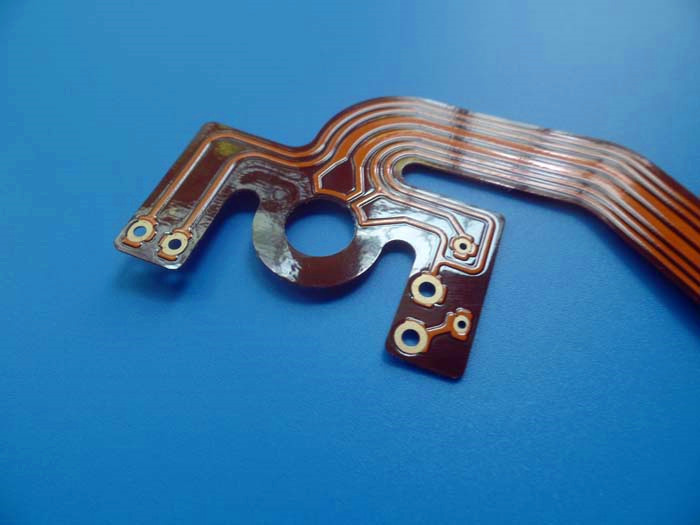

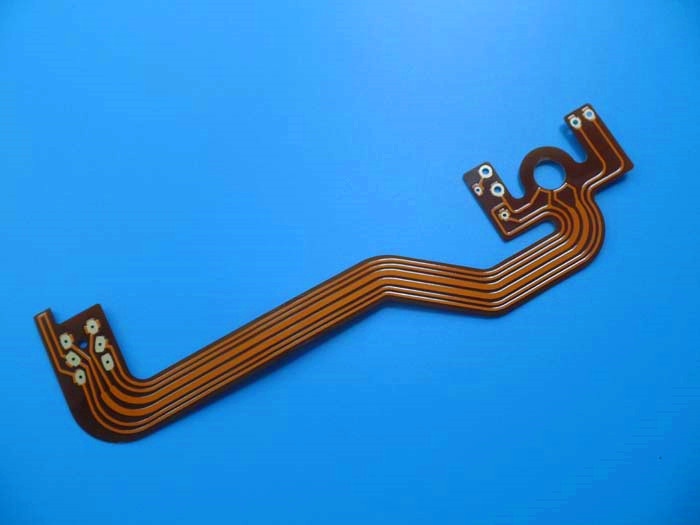

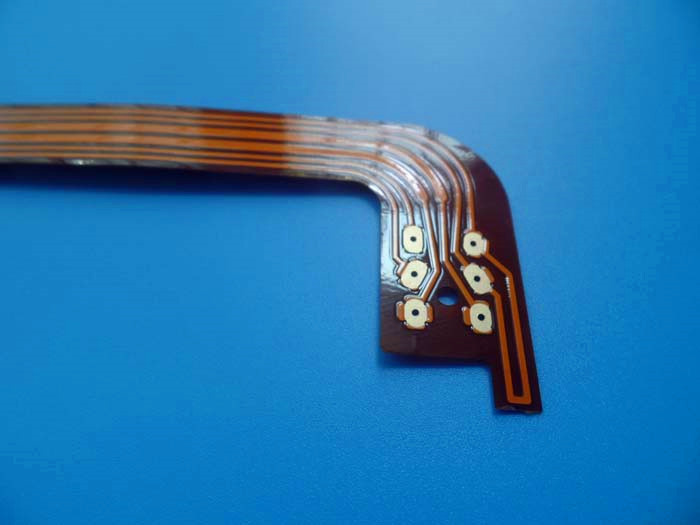

This is a type of flexible printed circuit for the application of AC Power Source. It's a 2 layer FPC at
0.3mm thick with 2oz copper. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2
using supplied Gerber data. FR-4 sd stiffner is applied on the back side.
Parameter & Data Sheet| Size of Flexible PCB | 130.66 X 40.67mm |
| Number of Layers | 2 |
| Board Type | Flexible PCB |
| Board Thickness | 0.30mm |
| Board Material | Polyimide 50µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | ≥20 µm |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 70 µm |
| | |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | FR-4 |
| Stiffener Thickness | 0.2mm |
| | |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds,
3 cycles. No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
