FPC PCB 0.1mm Thick Single Sided Board with Immersion Gold
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-394-V3.94 |
| Board Thick: |
0.1mm |
| Surface Finish: |
Immersion Gold |
| Surface Cu Thickness: |
1 Oz |
| Coverlay Colour: |
Yellow |
| Color Of Silkscreen: |
White |
| RoHS Required: |
Yes |
| Thickness of Coverlay: |
200 Um |
| Thermal Stress: |
No Blistering |
| Workmanship: |
Ipc-6013c Class 2 |
| Function: |
100% Pass Electrical Test |
| Structure: |
Single-Sided FPC |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Material: |
Polyimide (Pi) |
| Application: |
Antenna |
| Insulation Materials: |
Polyimide (Pi) |
Product Description

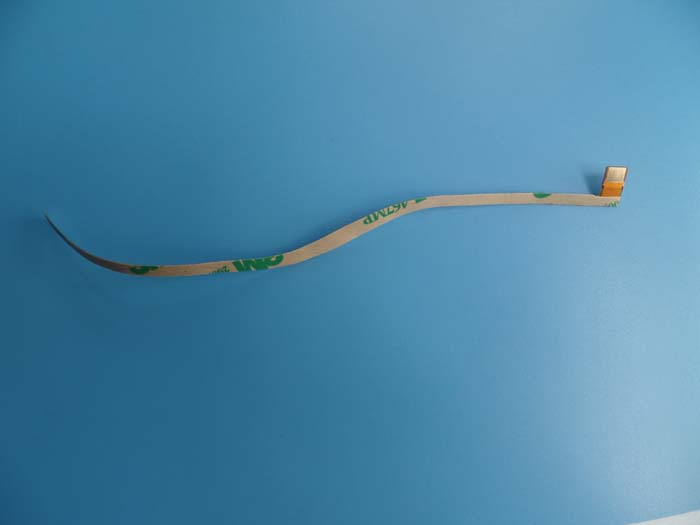

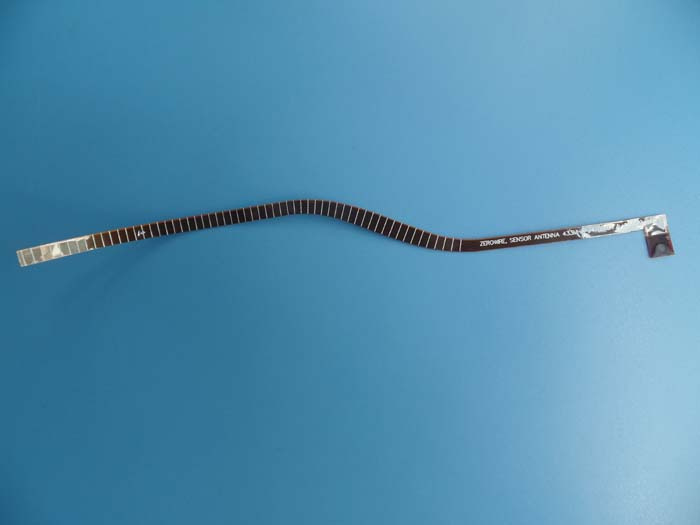

FPC PCB 0.1mm thick single sided board with immersion gold for Antenna
Commodity Introduction
This is a type of flexible PCB for the application of Antenna. It's a single sided board at 0.1mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameter & Data Sheet| Number of Layers | 1 |
| Board Type | Flexbile cirucit |
| Board Thickness | 0.1mm +/-10% |
| Board Material | Polyimide (PI) 25um |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Coverlay Colour | Yellow |
| Number of Coverlay | 1 |
| Thickness of Coverlay | 25um |
| Stiffener | 200um |
| 3M Tape | Yes |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Whtie |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | N/A |
| Minimum Gap(mil) | N/A |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Learn PCB: PCB Classification
Classification by layers: It's divided into a single sided PCB, double sided PCB and multilayer PCB.
The Common multilayer board is generally 4 layers or 6 layers, complex multilayer board up to
dozens of layers.
Single Sided Boards are the most basic parts of PCB. Components are concentrated on one side,
the wire track is focused on the other side (SMD components and wires for the same side, then
the other side of the through-hole components). Because the wire appears only in one side, so
this kind of PCB is called single sided.
It has many strict restrictions in the design on the line (because of only one side, each wire must
not cross and goes around its own path), so this type of circuit board is used at the early stage of
circuit.
