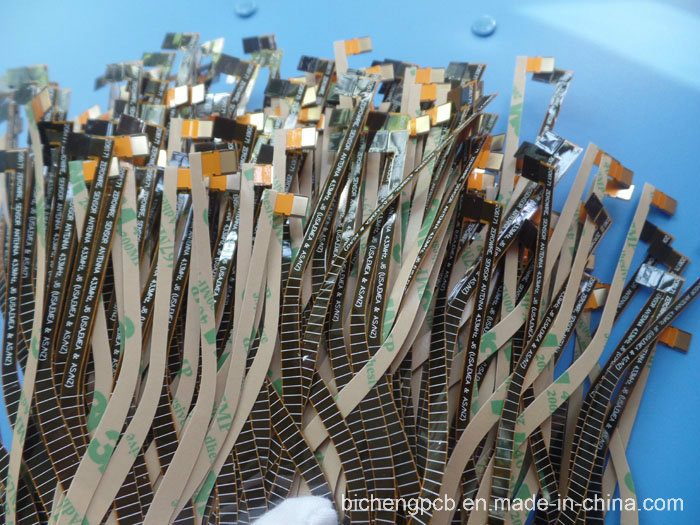

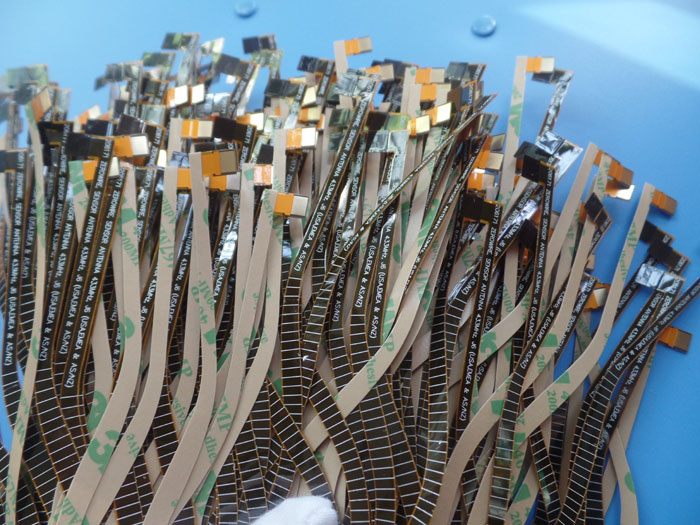

FPC PCB Single Sided Flexible Board Mass Production
| Price: |
US $ 1.10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-480.1757-V1.1 |
| Board Thickness: |
0.1mm +/-10% |
| Board Material: |
Polyimide (Pi) 25 Um |
| Tg Value Of Board Material: |
60ºC |
| Surface Cu Thickness: |
35 Um (1 Oz) |
| Thickness Of Coverlay: |
25 Um |
| Stiffener: |
200 Um |
| Famability: |
94-V0 |
| Thermal Shock Test: |
Pass, -25ºC±125ºC, 1000 Cycles. |
| Thermal Stress: |
Pass |
| 3m Tape: |
Yes |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Application of Antenna |
| Insulation Materials: |
Polyimide |
| Brand: |
Bicheng |
Product Description
Parameters & Data Sheet| Number of Layers | 1 |
| Board Type | Flexbile cirucit |
| Board Thickness | 0.1mm +/-10% |
| Board Material | Polyimide (PI) 25 um |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1 oz) |
| |
| Coverlay Colour | Yellow |
| Number of Coverlay | 1 |
| Thickness of Coverlay | 25 um |
| Stiffener | 200 um |
| 3M Tape | Yes |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | N/A |
| Minimum Gap(mil) | N/A |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
