Fr4 Materials Microwave Module with RoHS Certification

Name: Fr4 Materials Microwave Module with RoHS Certification
Brand: all-electronics-online.com
SKU: 784072555
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	US $ 2-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HW-09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	6-24 V
Output Voltage:	5V
Distance:	10m
Angle:	180*360
Frequency:	10.525GHz
Delay Time:	2s
Color:	Green
Warranty:	2 Years
Weight:	0.01g
Material:	Fr4

Product Description

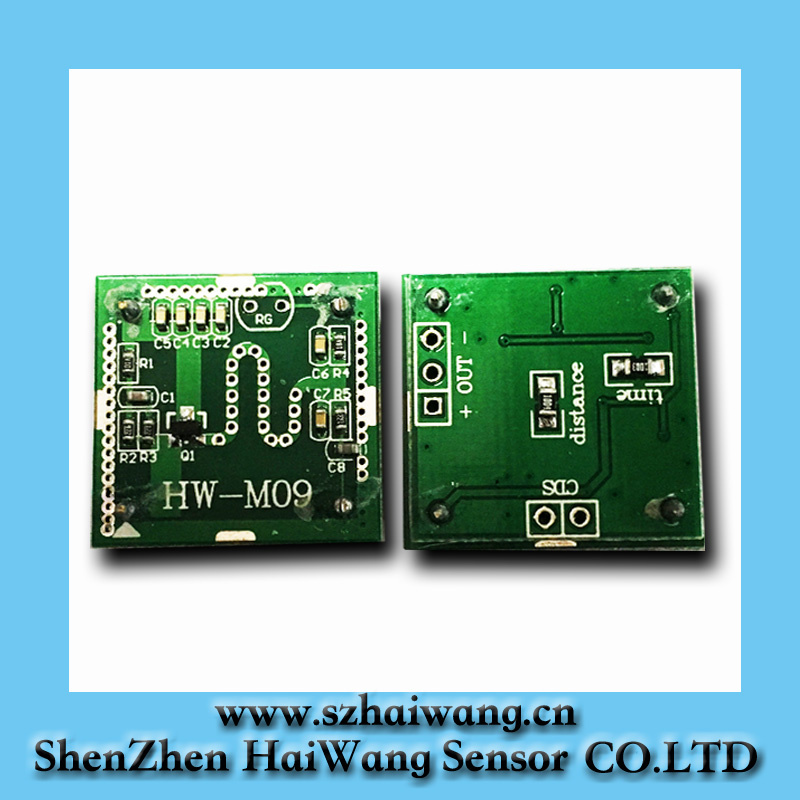

FR4 Materials Microwave Module with RoHS Certification

Working Principle
The HW-M09 Microwave Module is adopted the planar antennas to transmit and receive the signals. The moving objects are targets like people and vehicles. After inducting the targets, the HW-M09 Microwave Module would output the voltage signals and turn into active sensors. The induction angle is 180 *360 degree on the front of ball.

Where to use
The HW- M09 Microwave Module is widely used in security guard monitory video, LED illumination, power switch, garage, corridor, road, automatic door control system and other places.

Feature
1.       No impact on temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
2.       Wide coverage without blind zone because of its field pattern emission.
3.       The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
4.       The signals can go through glass, door, wall and other obstacles.
5.       Professional design of the microwave with flat antenna, low-power , ROSH and high product consistency.

Dimension

Model	HW-09
Input Voltage	6-24V
Output Voltage	5V
Current	5mA
Effective Distance	10m
Size	22226mm
Weight	0.01g
Angle	180*360

All the dimensions above can be customized.

Warm note
1. Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
electric shock.
2. Avoid being installed in the rain, to prevent damage or affect the lifetime.
3. Better install far away from the place of the magnetic field or the conductor to avoid wrong
actions.
