| Prod Model: |
BIC-0824V3 |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Processing Technology: |
HASL |
| Base Material: |
Copper Clad Laminate |
| Brand: |
Bicheng |
Product Description
Bicheng Double Sided PCB Shenzhen High Precision PCB supplier
Commodity Introduction

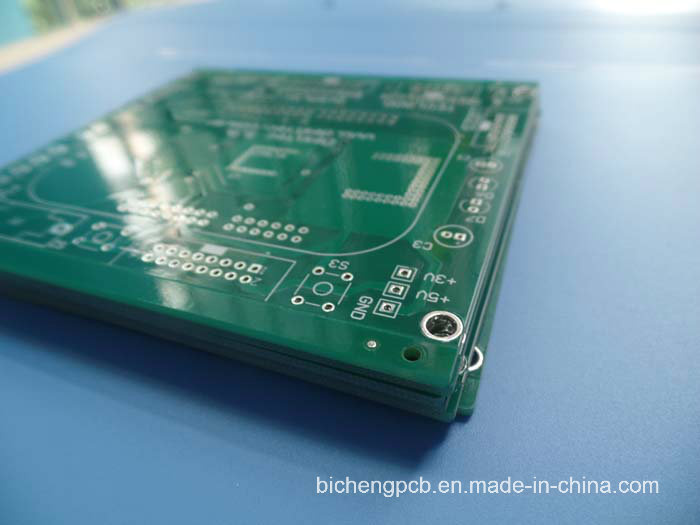

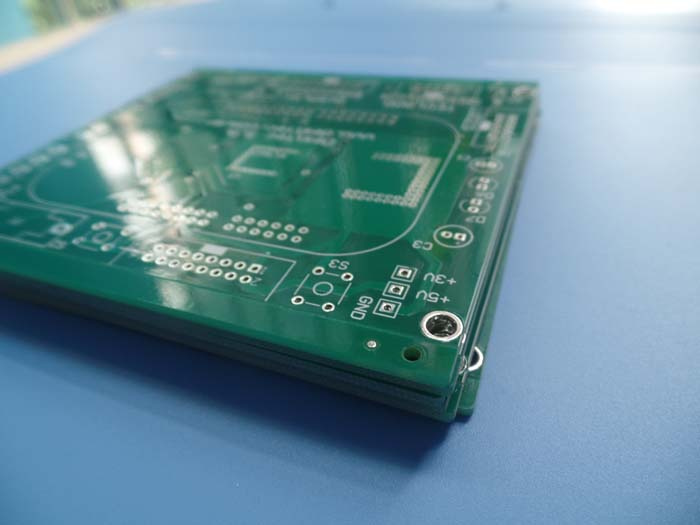

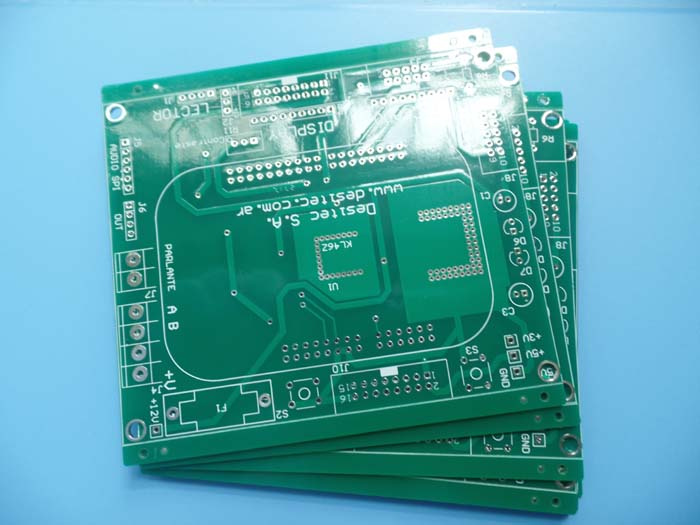

This is a type of FR-4 PCB for the application of intercom systems. It's a double sided board at 1.6mm thick with HASL Lead Free pad finish. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.
Parameter & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Whie |
| Number of Silkscreen | 2 |
| |
| Mininum Trace (mil) | 7.87 mil |
| Minimum Gap(mil) | 5.9 mil |
| |
| Surface Finish | HASL Lead free |
| RoHS Required | Yes |
| Warpage | 0.22% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 25.799 | 24.599 | 24.659 | 26.299 | 25.579 | 25.209 | 25.357 |
| 2 | 24.847 | 23.647 | 23.707 | 25.347 | 24.627 | 24.257 | 24.405 |
| 3 | 25.164 | 23.964 | 24.024 | 25.664 | 24.944 | 24.574 | 24.722 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 105.79 | ±0.15 | 105.77 | 105.80 | 105.59 | 105.78 |
| 2 | 98.65 | ±0.15 | 98.66 | 98.66 | 98.60 | 98.67 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.500 | ±0.075 | Y | 0.500 | 0.475 | 0.525 | 0.500 |
| 2 | 0.600 | ±0.075 | Y | 0.600 | 0.575 | 0.625 | 0.600 |
| 3 | 0.700 | ±0.075 | Y | 0.700 | 0.675 | 0.725 | 0.700 |
| 4 | 0.800 | ±0.075 | Y | 0.800 | 0.775 | 0.825 | 0.800 |
| 5 | 1.000 | ±0.075 | Y | 1.000 | 0.975 | 1.025 | 1.000 |
| 6 | 1.100 | ±0.075 | Y | 1.100 | 1.075 | 1.125 | 1.100 |
| 7 | 1.200 | ±0.075 | Y | 1.200 | 1.175 | 1.225 | 1.200 |
| 8 | 1.250 | ±0.075 | Y | 1.250 | 1.225 | 1.275 | 1.250 |
| 9 | 1.850 | ±0.075 | Y | 1.850 | 1.825 | 1.875 | 1.850 |
| 10 | 4.000 | ±0.05 | N | 4.000 | 3.975 | 4.025 | 4.000 |
| 11 | 4.320 | ±0.075 | Y | 4.320 | 4.295 | 4.345 | 4.320 |
