French Waterproof Socket 051101

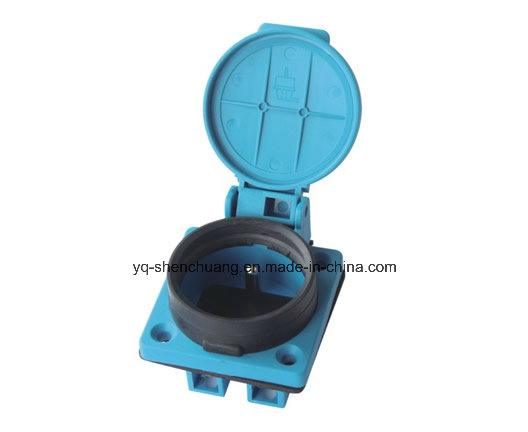

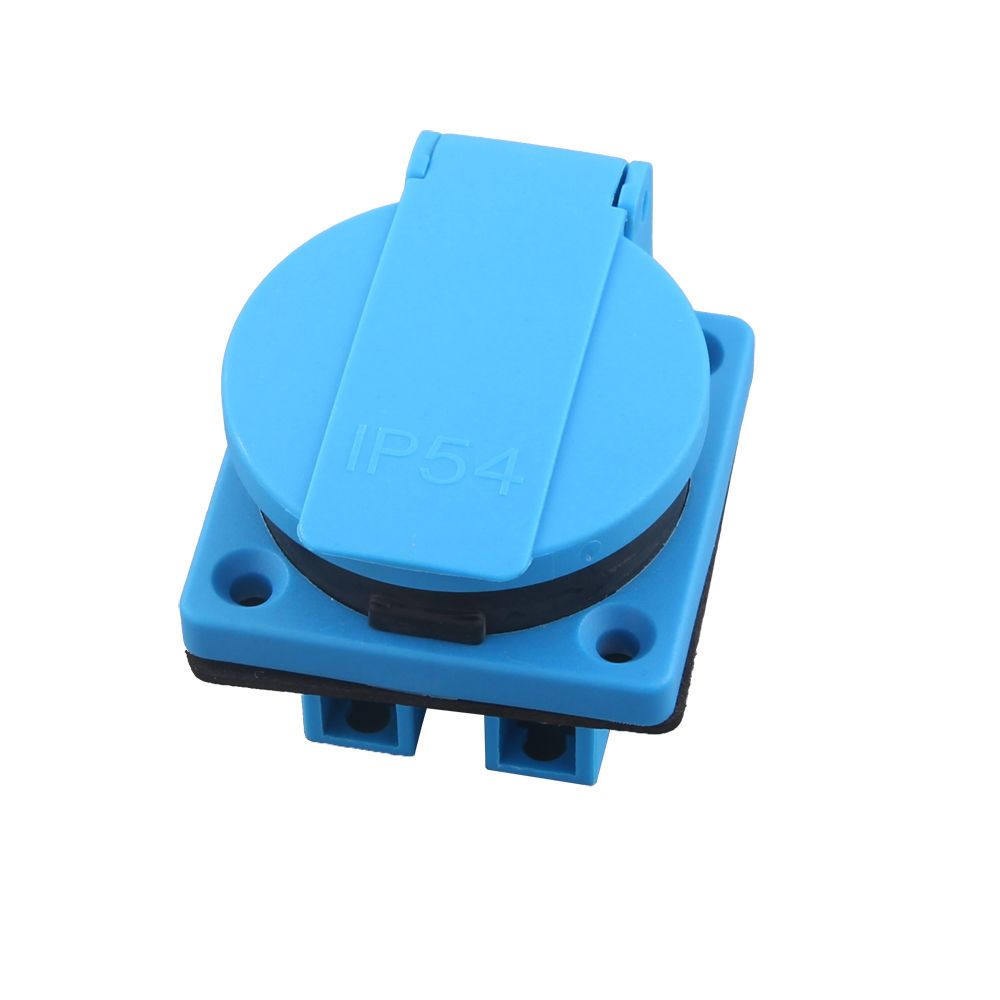

Name: French Waterproof Socket 051101
Brand: all-electronics-online.com
SKU: 719006732
Availability: InStock
Rating: 5 (118 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	051101
Grounding:	Standard Grounding
Type:	Without Switch
Application:	Industrial
Certification:	RoHS
Customized:	Customized
Condition:	New
Hole-Digit:	2 Digits
IP Rating:	IP54
Color:	Blue

Product Description

Product Name: French waterproof socket
Product Model 051101
Rated Current: 16A
Rated voltage: 250V
Interface mode: 2P+E
Insulation Resistance: ≥5MΩ
Electrical strength: AC 2000V 50HZ
Protection class: IP54
The main material: PA66ZR01
Color Standard color: blue; or according to customer requirements

Application
They are widely used in Ironmaking and Steelmaking,Generator industry, Petroleum Chemical Industry, Electricity, Electronics, railway, Construction Site, Airports, mine, post-mining land, water treatment plant and port, Pier,market, hotel.

Features
This product is exquisitely crafted by using Nylon6 or Polypropylene,which are both featured in waterproof, dust proof, as well as corrosion proof including the abrasion proof. In addition, this product is also very durable with long lasting lifespan and superior stability.
Testing and Quality Control "Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands' product

Certification: RoHs

Shenchuang Electrical is an electrical company of invention, production and integration. We concentrate on manufacturing solar panel fairy lights, solar panel lamps and electric starter lock switch, high-current switching, American NEMA socket, plug series, German socket, , plug series, South Africa socket, plug series etc...

Shenchuang Electrical has been dedicating itself to the research and development since its inception. It has strong technical strength and complete tesing equipment. Many products have passed international safety certification organizations such as the famous U. S. "UL", Canada "cUL", German "VDE" "TUV", Australia"SAA" and the ISO90001 quality system certification. It is also widely used in the generator industry, machine tool equipments, Electric vehicle charging piles, factory production lines, construction sites, airport and docks etc. With reasonable price, superior quality and excellent services won the praise and trust of new and old customers. The products have exported to Europe, America and Southeast Asia and other regions. We also support production to Honda, YAMAHA, Generac, Cunmmins, TTI, CPI, BS, ETQ

And other multinational companies. Shenchuang Electrical has become a leader of Chinese generators supporting industry!

Our company adhere to the guidelines of "quality for survival, technology for development. ". We believe that we can achieve new heights with sincerity, ethics technology, creation, mangement.
