Frost Protection Cable Anti-Freeze Pipe Cable Heat Tracing Cable GS Ce Approved
| Price: |
US $ 1.2-6/Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
SHPT-16W/M-230V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thermostat: |
6 to 13 Degree |
| Heating Wire Shape: |
Flat |
| Coated: |
PVC |
| Power Line: |
2m,Black |
| Diameter: |
5*13.2mm |
| Voltage: |
230V |
| Heating Cable Type: |
Two Conductors |
| Insulation: |
XLPE |
| Protection Degree: |
Ipx68 |
| Power: |
16W/M |
Product Description

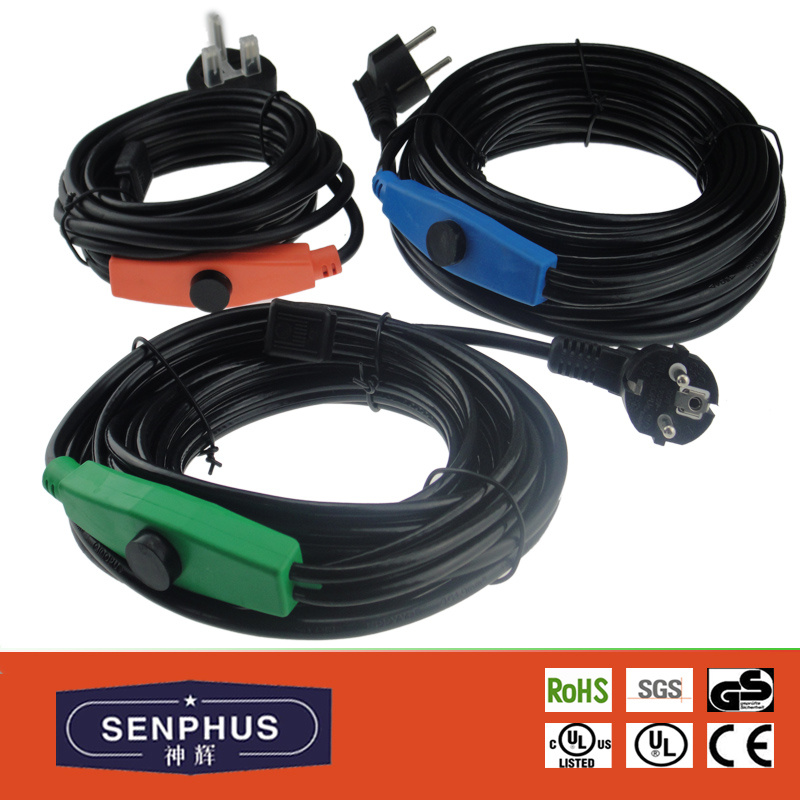

Frost Protection Cable Anti-freeze Pipe Cable Heat Tracing Cable GS CE Approved
Senphus antifreeze water pipe heating cable are mainly for North America and Europe.
We have UL, GS and CE certificate (according to the new rule of EMV-Directive 2014/30/EU) at present.Feature
1. The length of Antifreeze Water Pipe Heating Cable are from 1 m to 49m
2. Input Voltage: 230V-50/60 Hz
3.Rated Power: 16W/M
4.Length of Power Cable 2m with Thermostat 3 to 16 degree (blue,green and orange etc),Self-regulating cable
5.Safe and Energy Conservation
Frost-proof water pipes with this heating cable
calibre |
15mm |
22mm |
28mm |
35mm |
42mm |
48mm |
60mm |
76mm |
Without pipe insulation |
-20°C. |
-13°C. |
-10°C. |
-7°C. |
-5°C. |
-4°C. |
-3°C. |
-2°C. |
With 13mm pipe insulation |
-45°C. |
-45°C. |
-40°C. |
-40°C. |
-35°C. |
-30°C. |
-25°C. |
-20°C. |
Antifreeze Water Pipe Heating Cable Specification
No. |
Description |
Power(w) |
Color |
Voltage |
1 |
1m |
16 |
black |
230v |
2 |
2m |
32 |
black |
230v |
3 |
4m |
64 |
black |
230v |
4 |
8m |
128 |
black |
230v |
5 |
12m |
192 |
black |
230v |
6 |
14m |
224 |
black |
230v |
7 |
18m |
288 |
black |
230v |
8 |
24m |
384 |
black |
230v |
9 |
37m |
592 |
black |
230v |
10 |
49m |
784 |
black |
230v |
Note: |
16w/m; power cord:2m,230v |
Installation:
1 first unwind the heating cable. The cable must never be connected to the power line when it is wound up.
2 if the cable is too inflexible because of low temperatures, unwind it and put it for some minutes into the plug.
3 afterwards you can pass the cable.
4 the area around the pipe where you want to connect it with the cable must be accessibly and non-attached.
5 the heating cable can not be passed behind walls
6 put the thermostat with the round black contact area tightly on the coolest point of the pipe and fix it with insulating tape.
7 finally put the whole cable on the pipe and fasten it every 30~60cm with insulating tape.
8 attention: the cable must be fastening straight on the pipe
9 now you can check if your cable works.
10 afterwards insulate the water pipe and the heating cable with mineral rock wool or foam. Attention: never use more than 13mm of this material to insulate.
11 in general the heating cable must be protected against mechanical damage or biting.
12 the heating cable can not be put into liquids.
13 finally plug the cable into a 230V main plug.We can do the product without thermostats(6 to 13 degree), because there are very heavy snow in winter in some Europe place, then the customers need more heat pipe heating cable, and we suggest the pipe heating cable without thermostats one.
Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.
We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.
Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.
Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.
Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!
OEM is welcome! !
