| Prod Model: |
G10, G11, EPGC202, EPGC203, EPGC308 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Size: |
1220X2450mm |
| Other Size: |
1020X2040mm |
| Insulation Class: |
B, F, H Class |
| Thickness Range: |
0.5mm - 100mm - up |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
20KV~100KV |
| Application: |
Insulation Constructure Component |
| Certification: |
ISO14001, Ohsas18001, ISO10012, Cnas |
| Color: |
Green |
| Brand: |
Dongfang |
Product Description

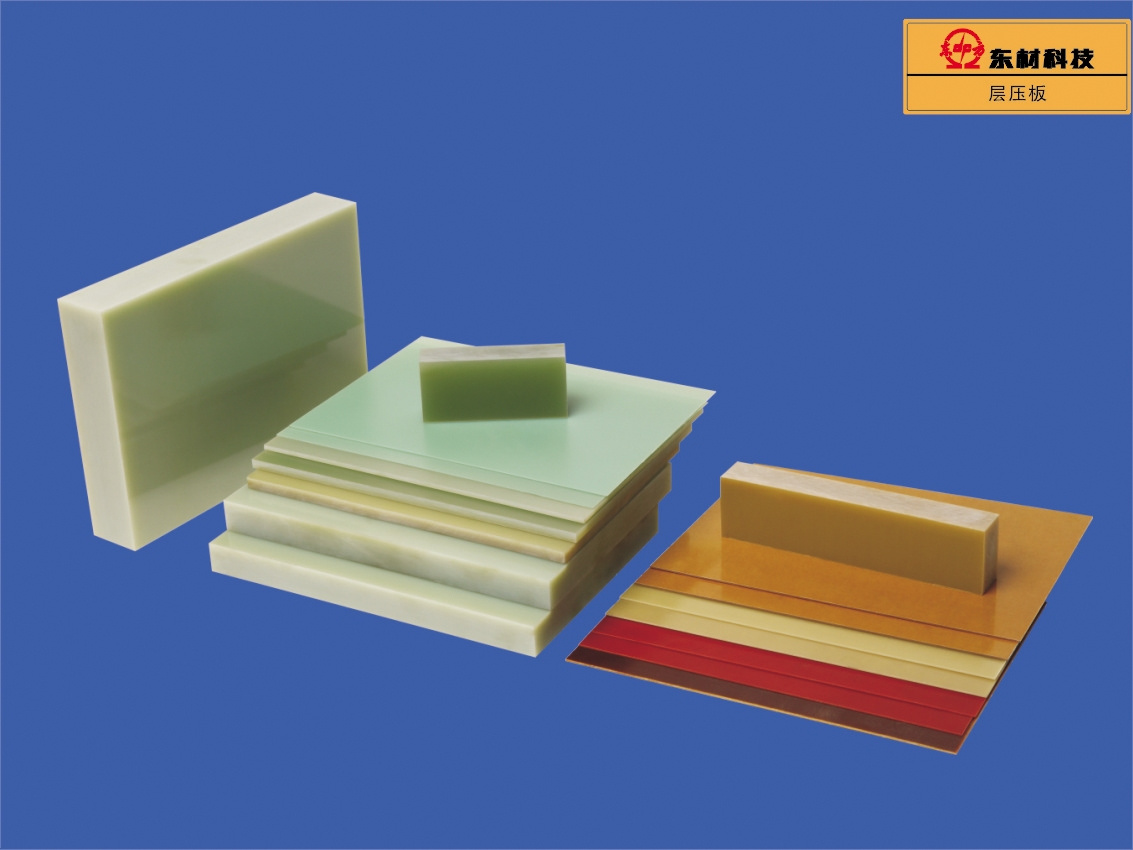

EPGC series Epoxy Glass Cloth Base Rigid Laminated Sheet consists of woven glass cloth impregnated with epoxy thermosetting resin, laminated under high temperature and high pressure. The woven glass cloth shall be alkali-free and treated by silane coupler.EPGC series (heat resistant: B~H), produced as per IEC60893-3-2, possess excellent mechanical strength under middling temperature or thermal state, stable electric property in high humidity. EPGC202 and EPGC204 also have flame retardant property. The sheets also passed toxic and hazardous substance detection (SGS Report). Used for B~H-class electrical motors,electrical equipments as insulating structural components, which has flame resistance requirements or not, or other ways. The classification and type (see Table 1). Table 1 Classification and Feature | Type | Application & Classification |
| Heat resistant |
|
|
|
|
|
| EPGC201 (G10) | For mechanical, electric equipments and electrons. With | high | B | 130ºC |
| strength under middling temperature. |
|
|
|
|
|
| EPGC202 (FR4) | Similar to EPGC201, owning stated flame retardant. |
| B | 130ºC |
| EPGC203 (G11) | For mechanical, electric equipments and electrons. With | the | F | 155ºC |
| highest strength under middling temperature. |
|
|
|
|
|
| EPGC204 (FR5) | Similar to EPGC203, owning stated flame retardant. |
| F | 155ºC |
| EPGC205 | Similar to EPGC203, made of roving glass fabrics. |
| H | 180ºC |
| EPGC306 | Similar to EPGC203, owning higher CTI. |
| F | 155ºC |
| EPGC307 | Similar to EPGC205, owning higher CTI. |
| F | 155ºC |
| EPGC308 | Similar to EPGC203, owing good thermal stability. |
| H | 180ºC |
1 Performance Requirements for Sheets 1.1 Appearance The surface of sheet shall be flat and smooth, free of air bubbles, wrinkles or cracks and reasonably free of other small imperfections such as scratches, dents, etc. The edge of sheet shall be tidy and be free of delaminations and cracks. The color shall be substantially uniform, but a few stains are permissible.1.2 Dimension and allowed deviation | 1.2.1 Thickness and its deviation of Sheets | Table 2 |
|
| mm |
| Nominal | Deviation |
|
|
| Nominal | Deviation |
|
| Thickness | EPGC201/202, EPGC203/204 | EPGC205 |
|
| Thickness | EPGC201/202, EPGC203/204 | EPGC205 |
| EPGC306/308 | EPGC307 |
|
| EPGC306/308 | EPGC307 |
|
|
|
|
| 0.4 | +/-0.10 | - |
|
| 12.0 | +/-0.94 | +/-2.40 |
| 0.5 | +/-0.12 | - |
|
| 14.0 | +/-1.02 | +/-2.60 |
| 0.6 | +/-0.13 | - |
|
| 16.0 | +/-1.12 | +/-2.80 |
| 0.8 | +/-0.16 | - |
|
| 20.0 | +/-1.30 | +/-3.00 |
| 1.0 | +/-0.18 | - |
|
| 25.0 | +/-1.50 | +/-3.50 |
| 1.2 | +/-0.20 | - |
|
| 30.0 | +/-1.70 | +/-4.00 |
| 1.5 | +/-0.24 | - |
|
| 35.0 | +/-1.95 | +/-4.40 |
| 2.0 | +/-0.28 | - |
|
| 40.0 | +/-2.10 | +/-4.80 |
| 2.5 | +/-0.33 | - |
|
| 45.0 | +/-2.30 | +/-5.10 |
| 3.0 | +/-0.37 | +/-0.50 |
|
| 50.0 | +/-2.45 | +/-5.40 |
| 4.0 | +/-0.45 | +/-0.60 |
|
| 60.0 | - | +/-5.80 |
| 5.0 | +/-0.52 | +/-0.70 |
|
| 70.0 | - | +/-6.20 |
| 6.0 | +/-0.60 | +/-1.60 |
|
| 80.0 | - | +/-6.60 |
| 8.0 | +/-0.72 | +/-1.90 |
|
| 90.0 | - | +/-6.80 |
| 10.0 | +/-0.82 | +/-2.20 |
|
| 100.0 | - | +/-7.00 |
Note: For sheets of nominal thickness not listed in this Table, the allowed deviation shall be the same as the next greater thickness
1
| 1.2.2 Length and Width of Sheets (see Table 3) |
|
| Table 3 | mm |
| Width x Length |
| Deviation |
|
|
|
| 1220 x 2440 |
| +/-25 |
1.3 Bending Deflection for Sheets (see Table 4) 1.4 The sheets shall be free of cracks and scraps when such machining as sawing, drilling, lathing and milling is applied. 1.5 Physical, mechanical and dielectric performance (see table 5) Table 5 | No. | Properties |
|
| Units |
| EPGC201 | EPGC202 | EPGC203 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Standard | Typical | Standard |
| Typical | Standard | Typical |
| 1 | Water absorption (2mm) |
|
| mg |
| ≤20 | 8 | ≤20 | 9 | ≤20 | 9 |
| 2 | Flexual strength, | At room temp | MPa |
| ≥340 | 460 | ≥340 | 500 | ≥340 | 450 |
| perpendicular to laminations |
|
|
|
|
|
|
|
|
|
|
|
| 155ºC+/-2ºC |
| --- | --- | --- | --- | ≥170 | 240 |
| (lengthwise) |
|
|
|
| 3 | Impact strength, |
|
| kJ/m2 |
| ≥33 | 53 | ≥33 | 51 | ≥33 | 50 |
| parallel to laminations, Charpy, notch |
|
|
|
|
|
|
|
|
|
|
|
| Electric strength, |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 | perpendicular to laminations | kV/mm |
| ≥11.8 | 17 | ≥11.8 | 17 | ≥11.8 | 18 |
| in transformer oil at 90ºC+/-2ºC |
|
|
|
|
|
|
|
|
|
|
|
| Electric strength, |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 | parallel to laminations |
|
| kV |
| ≥35 | 48 | ≥35 | 45 | ≥35 | 45 |
| in transformer oil at 90ºC+/-2ºC |
|
|
|
|
|
|
|
|
|
|
|
| 6 | Dielectric dissipation factor 1MHz | --- |
|
| ≤0.04 | 0.02 | ≤0.04 | 0.02 | ≤0.04 | 0.021 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 | Dielectric permittivity | 1MHz | --- |
|
| ≤5.5 | 4.8 | ≤5.5 | 4.7 | ≤5.5 | 4.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 8 | Insulation resistivity after immersion | MΩ | ≥5.0x104 | 2.1x107 | ≥5.0x104 |
| 6.8x106 | ≥5.0x104 | 4.9x107 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9 | Flammability |
|
| --- |
|
| --- | --- | V-0 |
| V-0 | --- |
| --- |
| 10 | Temperature Index |
|
| --- |
|
| ≥130 | ≥130 | ≥155 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table 5 | (Continued) |
|
|
|
|
|
|
| No. | Properties |
|
| Units |
|
| EPGC204 | EPGC306 | EPGC308 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Standard | Typical | Standard |
| Typical | Standard |
| Typical |
| 1 | Water absorption (2mm) |
|
| mg |
|
| ≤20 | 11 | ≤20 |
| 8 | ≤20 |
| 9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2 | Flexual strength, | At room temp |
| MPa |
|
| ≥340 | 480 | ≥340 |
| 460 | ≥340 |
| 500 |
| perpendicular to laminations |
|
|
|
|
|
|
|
|
|
|
|
|
| 155ºC+/-2ºC |
|
|
| ≥170 | 260 | ≥170 |
| 280 | - |
| 270 |
| (lengthwise) |
|
|
|
|
|
|
| 3 | Impact strength, |
|
| kJ/m2 |
|
| ≥33 | 51 | ≥33 |
| 53 | ≥33 |
| 51 |
| parallel to laminations, Charpy, notch |
|
|
|
|
|
|
|
|
|
|
|
|
| Electric strength, |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4 | perpendicular to laminations |
| kV/mm |
|
| ≥11.8 | 16 | ≥11.8 |
| 17 | ≥11.8 |
| 17 |
| in transformer oil at 90ºC+/-2ºC |
|
|
|
|
|
|
|
|
|
|
|
|
| Electric strength, |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 | parallel to laminations |
|
| kV |
|
| ≥35 | 45 | ≥35 |
| 48 | ≥35 |
| 45 |
| in transformer oil at 90ºC+/-2ºC |
|
|
|
|
|
|
|
|
|
|
|
|
| 6 | Dielectric dissipation factor 1MHz |
| --- |
|
| ≤0.04 | 0.018 | ≤0.04 |
| 0.02 | ≤0.04 |
| 0.02 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 | Dielectric permittivity | 1MHz |
| --- |
|
| ≤5.5 | 4.7 | ≤5.5 |
| 4.8 | ≤5.5 |
| 4.7 |
|
|
|
|
|
|
|
|
|
|
|
|
| 8 | Insulation resistivity after immersion |
| MΩ |
| ≥5.0x104 | 3.7x106 | ≥5.0x104 |
| 2.1x107 | ≥5.0x104 | 6.8x106 |
| 9 | Comparative tracking index |
| --- |
|
| --- | --- | 600 |
| 600 | --- |
| --- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 10 | Flammability |
|
| --- |
|
| V-0 | V-0 | --- |
| V-0 | --- |
| --- |
| 11 | Temperature Index |
|
| --- |
|
| ≥155 | ≥155 | ≥180 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2
| Table 4 | Bending Deflection for Sheets | mm |
| Thickness |
| Bending Deflection |
|
|
|
|
|
| 3.0~6.0 |
| ≤10 |
|
| >6.0~8.0 |
| ≤8 |
|
| >8.0 |
| ≤6 |
|
2 Referee Test Methods 2.1 Appearance: By visual observation. 2.2 Mechanical Machining: The machining of sheets shall comply with JB/Z 141-1979. 2.3 Density: Shall comply with GB 1033-1986 A. The weight of specimen shall be 2~50g. 2.4 Others shall be as per GB 5130-1985 (IEC60893-2:1992). 3 Inspection, Mark, Packing, Transportation and Storage 3.1 The inspection items for Routine Test shall include Clause 1.1, 1.2, 1.3 and Item 3 & 5 of Table 3. The items in Clause 1.1, 1.2, 1.3 should be checked one by one.3.2 The sheets shall be stored in a place where temperature is no higher than 40ºC, and be placed horizontally on a bedplate with a height 50mm or above. Keep away from fire, heat (heating apparatus) and direct sunshine. The storage life of sheets is 18 months from the date of leaving factory. If the storage duration is over 18 months, the product also could be used after being tested to be qualified. 3.3 Others shall accord with the stipulations of GB/T1305-1985. 4 Remarks and Precautions for Handling and Use 4.1 Machining shall comply with JB/Z141-1979 because the sheets have inherent difference in attribute from metal. 4.2 A high speed and small depth of cutting shall be applied when machining because of sheets¡ weak thermal conductivity.4.3 Machining and cutting this product will release much dust and smoke. Suitable measures should be taken to ensure dust levels are within acceptable limits during operations. Local exhaust ventilation and use of suitable dust/particle masks is advised.4.4 The sheets are subject to moisture after being machined, a coating of insulating vanish is recommended.Dongfang laminate glass fabric with epoxy resin under hear and pressure,
Thus acquire good thermal, mechanical and electrical insulation properties for the finishedmateral. Applicaion: Generators, motors, electrical equipments, low temperature equipments, medical equipments, air separation equipments, cryogenic equipments, tankers...
