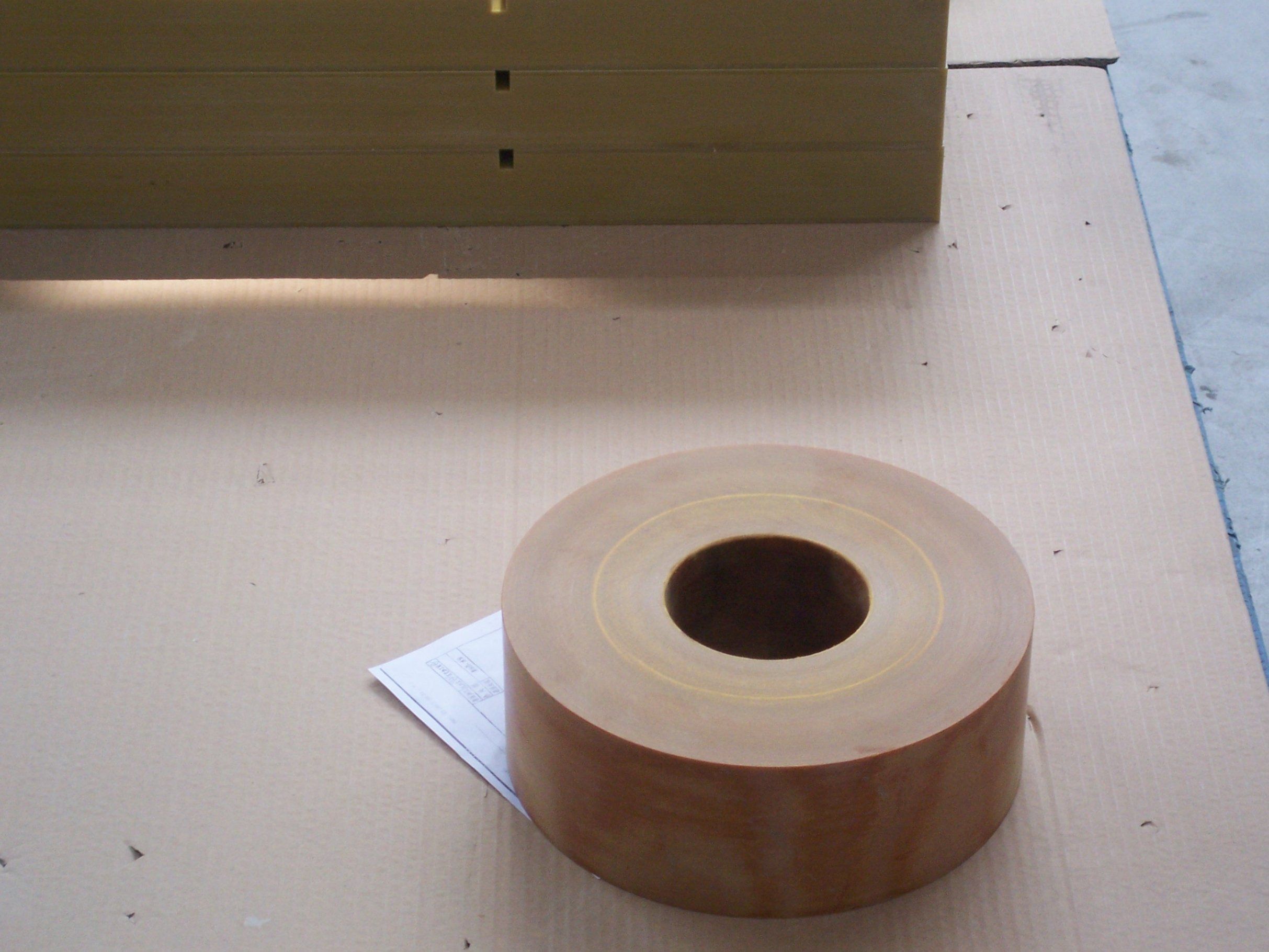

Machined FRP Parts for Cryogenic Insulation

Name: Machined FRP Parts for Cryogenic Insulation
Brand: all-electronics-online.com
SKU: 718901792
Availability: InStock
Rating: 5 (102 reviews)

Price:	US $ 9.8kg
Min Order:	50kg
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	200 200
Maximum Voltage:	20KV~100KV
Application:	Cryogenic
Type:	Insulation Spacer
Certification:	ISO14001,Ohsas18001,ISO10012,CNAS
Color:	Yellow, Green, Brown
Brand:	Dongfang

Product Description

To laminate the individual materials ( like glass fabric, cotton fabric, glass mat ) with proper resin under heat and pressure, thus acquire good thermal, mechanical and electrical insulation properties for the finished material.

Application: Generators, motors, electrical equipment, low temperature equipment, medical equipment, air separation equipment, cryogenic equipment, tankers...
Performance of Rigid Laminated Tubes

Type Properties	3648 Epoxy glass cloth tube	D410 Polyamino-imide glass cloth tube	D411 Diphenyl ether glass cloth tube	EPGC21 Epoxy glass cloth tube	EPGC22 Epoxy glass cloth tube
Density (g/cm3)	1.45	1.71	1.67	-	-
Thermal stability (24h) (ºC)	-	-	-	-	-
Water absorption (%)	-	-	0.6	-	-
Flexural strength (N/mm2)	321 MPa	310 MPa	210 MPa	-	476
Buckling strength (MPa)	-	-	-	-	-
Compressive strength (N/mm2)	201 MPa (axis direction)	96 MPa	-	393 MPa (axis direction)	312 MPa (axis direction)
Pressive strength (MPa)	-	-	85 MPa	-	-
Shear strength (MPa)	-	29	11	-	-
Normal	2.1x1012	6.7x1013	Volume resistivity (Ω·m)	-	-	-
After 24 hr in water	1.7x109	1.8x1010
Insulating resistance, parallel to laminations (Ω)	Normal	1.4x1012	5.7x1013	-	-	-
After 24 hr in water	4.9x108	6.2x109	7.6x1010	5.2x1010
Dissipation factor	-	-	0.2	-	-
1.5~2.5mm	1.5mm 14	Voltage endurance, perpendicular to laminations, at 90ºC¡ 2ºC in transformer oil for 5min (kV)	18kV pass	2mm10	Dielectric strength, perpendicular to laminations (wall thickness: 2mm) 12.3 MV/m	Dielectric strength, perpendicular to laminations (wall thickness: 2mm) 13.7 MV/m
2.5~3.5mm	2.0mm 16
3.5~4.5mm	2.5mm 18
4.5~6mm	3.0mm 20
6~9mm	-
20s step by step 55	20s step by step 57	Voltage endurance, parallel to laminations, at 90ºC¡ 2ºC in transformer oil for 5min (kV)	25	30	-
1min, 40kV	1min, 40kV

Sichuan Dongfang Insulating Material Co., Ltd. ( Dongfang for short ) is the key subsidiary company of Sichuan EM Technology Co., Ltd. ( EMT for short ). EMT is a public company which specializes in R&D, manufacturing and selling chemical new materials. It devotes itself in providing safe and environment-friendly new material solution to create an even better life for society.

EMT headquarter, which owns 9 subsidiaries, locates in Sichuan Mianyang City, Sichuan Province. The company sticks to the developing principle of "Technology Supports Enterprise, Hard Work Promotes Industry". By relying on National Insulation Material Engineering Center, National Technology Center and Post-Doctoral Research Center as well as depending a high-quality R&D team which consists of doctors and masters, EMT sticks to the self-development road and prioritizes in developing insulation film, optical film, new insulation material products, environment-friendly FR material and fine chemicals. The company can provide service for various industries including new energy, smart power grids, consumer electronics, panel display, electrical engineering and electric apparatus and military projects. With excellent performance and good reputation, EMT exports to over 40 countries and regions and has established long-term stable cooperation with many enterprises.

By sticking to the development road of systematic innovation, relevance technology, diversified products and professional service, EMT is on the way to a global supplier in new material industry.
