| Prod Model: |
6650, NKN, NHN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
| Max. Width: |
900mm-1800mm |
| Thickness: |
0.18mm - 0.50mm |
| Application: |
Dry Transformer Coil Insulation |
| Type: |
Insulation Film |
| Chemistry: |
Hybrid Insulation |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
10KV~20KV |
| Material: |
Polyaramid Paper/Polyester Film |
| Certification: |
ISO14001, Ohsas18001, ISO10012, Cnas |
| Color: |
Natural Color |
| Brand: |
Dongfang |
Product Description

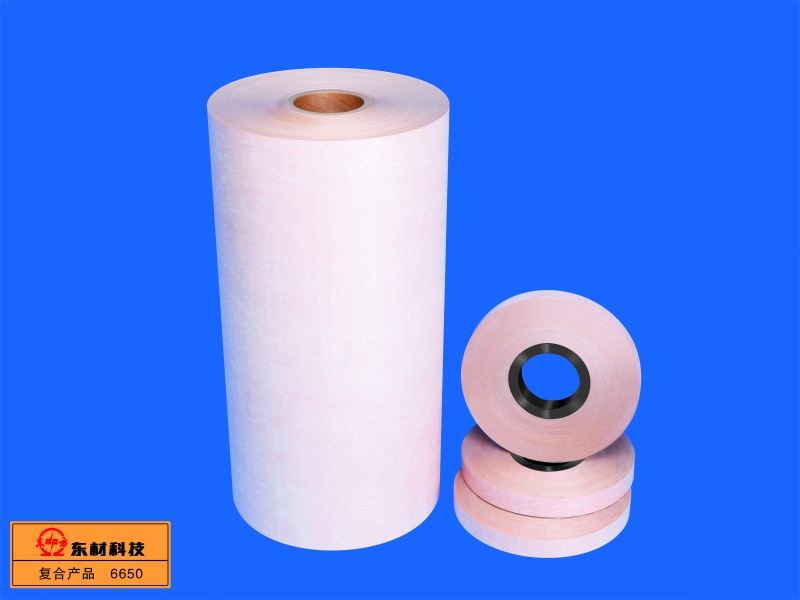

6650 Polyimide film/polyaramide fibre paper flexible laminate (NHN) is a three-layer flexible laminate in which each side of polyimide film (H) is bonded with one layer of polyaramide fibre paper (Nomex). 6650 is presently the most advanced electric insulating flexible laminate. It has excellent thermal resistance, dielectric property and mechanical property. It is used for slot insulation, inetrphase insulation, interturn insulation and liner insulation in H class electrical motors and electrical appliances and it can also be used in some special places in Class B or F motors. 6650 passed SGS test for toxic and hazardous substance detection.
1 Technical requirements
1.1 Appearance requirement should accord with stipulations of Part I: Definition & General Requirement, Electrical
Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).
1.2 Dimension:
Nominal width:900 mm+/-10mm. Nominal weight: 50+/-5kg /Roll.
The splices shall not be more than 3 in a roll.
The standard values for 6650 are shown in Table 1 and relevant typical values shown in Table 2.
2 Test method
As per the stipulations in Part II: Test Method, Electrical Insulating Flexible Laminates, GB/T 5591.2-2002
(MOD with IEC60626-2: 1995).
Testing for thermal resistance shall be as per the relative stipulations in JB3730-1999.
3 Packing, Transportation and Storage
3.1 6650 is supplied in rolls, sheet or tape and packed in cartons or/and pallets.
3.2 6650 should be stored in clean & dry warehouse with temperature below 40ºC. Keep away from fire, heat and direct sunshine.
3.3 The other requirements shall accord with the stipulations in Part I: Definition & General Requirement, Electrical
Insulating Flexible Laminates, GB/T 5591.1-2002 (MOD with IEC60626-1: 1995).
4 Application and Remarks
According to customer¡ request, we can produce two-layer laminate NH.
1
Table1: Standard values for 6650 (NHN) | No. |
|
|
|
| Properties |
|
| Unit |
|
|
|
|
| Standard values |
|
|
|
|
|
| 1 |
|
| Nominal thickness |
|
|
|
|
| mm | 0.15 |
| 0.18 | 0.20 | 0.23 | 0.25 |
| 0.30 | 0.35 |
|
| 2 |
|
| Thickness tolerance |
|
|
|
|
| mm | +/-0.02 |
| +/-0.03 |
|
|
|
| +/-0.04 |
|
|
| 3 |
|
| Grammage (only for reference) |
|
| g/m2 | 155 |
|
| 195 | 210 |
| 230 | 300 |
| 335 |
| 370 |
|
|
|
|
|
|
| MD |
| Not folded |
|
|
|
| ≥140 |
| ≥160 | ≥160 | ≥180 | ≥210 |
| ≥250 | ≥270 |
| 4 | Tensile strength |
| After folded |
| N/10mm | ≥100 |
| ≥120 | ≥120 | ≥130 | ≥180 |
| ≥180 | ≥190 |
|
|
|
|
|
|
| TD |
| Not folded |
| ≥80 |
| ≥100 | ≥100 | ≥110 | ≥140 |
| ≥160 | ≥170 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| After folded |
|
|
|
| ≥70 |
| ≥90 |
| ≥90 |
| ≥80 | ≥120 |
| ≥130 | ≥140 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
|
| Elongation |
| MD |
| % |
|
|
|
|
|
|
|
| ≥10 |
|
|
|
|
|
|
|
| TD |
|
|
|
|
|
|
|
|
|
| ≥8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
| Breakdown voltage |
| Not folded |
|
| kV | ≥9 |
|
|
|
| ≥10 |
|
|
| ≥12 |
|
|
| After folded |
|
| ≥8 |
|
|
|
| ≥9 |
|
|
| ≥10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
| Bonding property at room temp. |
| - |
|
|
|
|
|
| No delamination |
|
|
| 8 |
|
| 200ºC+/-2ºC, 10min |
|
|
|
| - |
| no delamination, no bubble, no adhesive flow |
|
| Bonding property at 200ºC+/-2ºC, 10min |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 9 |
| Temperature index of heat-resistance in a long term (TI) | - |
|
|
|
|
|
|
|
| ≥180 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table1: Typical values for 6650 (NHN) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| No. |
| Properties |
|
| Unit |
|
|
|
|
|
| Standard values |
|
|
|
|
|
| 1 |
|
| Nominal thickness |
|
| mm | 0.15 |
| 0.18 |
|
| 0.20 |
| 0.23 |
| 0.25 |
| 0.30 |
| 0.35 |
|
| 2 |
|
| Thickness tolerance |
|
| mm |
| 0.005 |
| 0.010 |
|
|
|
|
|
|
| 0.015 |
|
|
|
| 3 |
|
| Grammage |
|
| g/m2 |
| 160 |
| 198 |
|
| 210 |
| 235 |
| 310 |
| 340 |
| 365 |
|
|
|
|
|
|
|
|
|
| Not folded |
|
|
| 162 |
| 180 |
|
| 200 |
| 230 |
| 268 |
| 350 |
| 430 |
|
| 4 |
|
| Tensile strength |
| MD |
| After folded | N/10mm | 157 |
| 175 |
|
| 195 |
| 200 |
| 268 |
| 340 |
| 420 |
|
|
|
|
|
|
| Not folded | 102 |
| 115 |
|
| 130 |
| 150 |
| 170 |
| 210 |
| 268 |
|
|
|
|
|
|
| TD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| After folded |
|
|
| 100 |
| 105 |
|
| 126 |
| 150 |
| 168 |
| 205 |
| 240 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5 |
|
| Elongation |
|
| MD |
| % |
|
|
|
|
|
|
| 20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| TD |
|
|
|
|
|
|
|
| 18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6 |
|
| Breakdown voltage |
|
| Not folded |
| kV |
| 11 |
| 12 |
|
| 14 |
| 15 |
|
|
| 15 |
| 15 |
| 15 |
|
|
|
|
| After folded |
|
| 10 |
| 11 |
|
| 12 |
| 12 |
|
|
| 13 |
| 13.5 |
| 13.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7 |
|
| Bonding property at room temp. |
| - |
|
|
|
|
|
| No delamination |
|
|
|
|
|
| 8 |
|
| 200ºC+/-2ºC, 10min |
|
|
| - |
| no delamination, no bubble, no adhesive flow |
|
|
|
| Bonding property at 200ºC+/-2ºC, 10min |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
