FTP Cat 5 LAN Cable with Messenger 0.5mm for Outdoor Use

Name: FTP Cat 5 LAN Cable with Messenger 0.5mm for Outdoor Use
Brand: all-electronics-online.com
SKU: 839012415
Availability: InStock
Rating: 4.8 (101 reviews)

Price:	US $ 1-100BOX
Min Order:	100BOX
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT5E
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 5
Certification:	VDE
Model:	FTP Cat5e
Brand:	Cx-Cable

Product Description

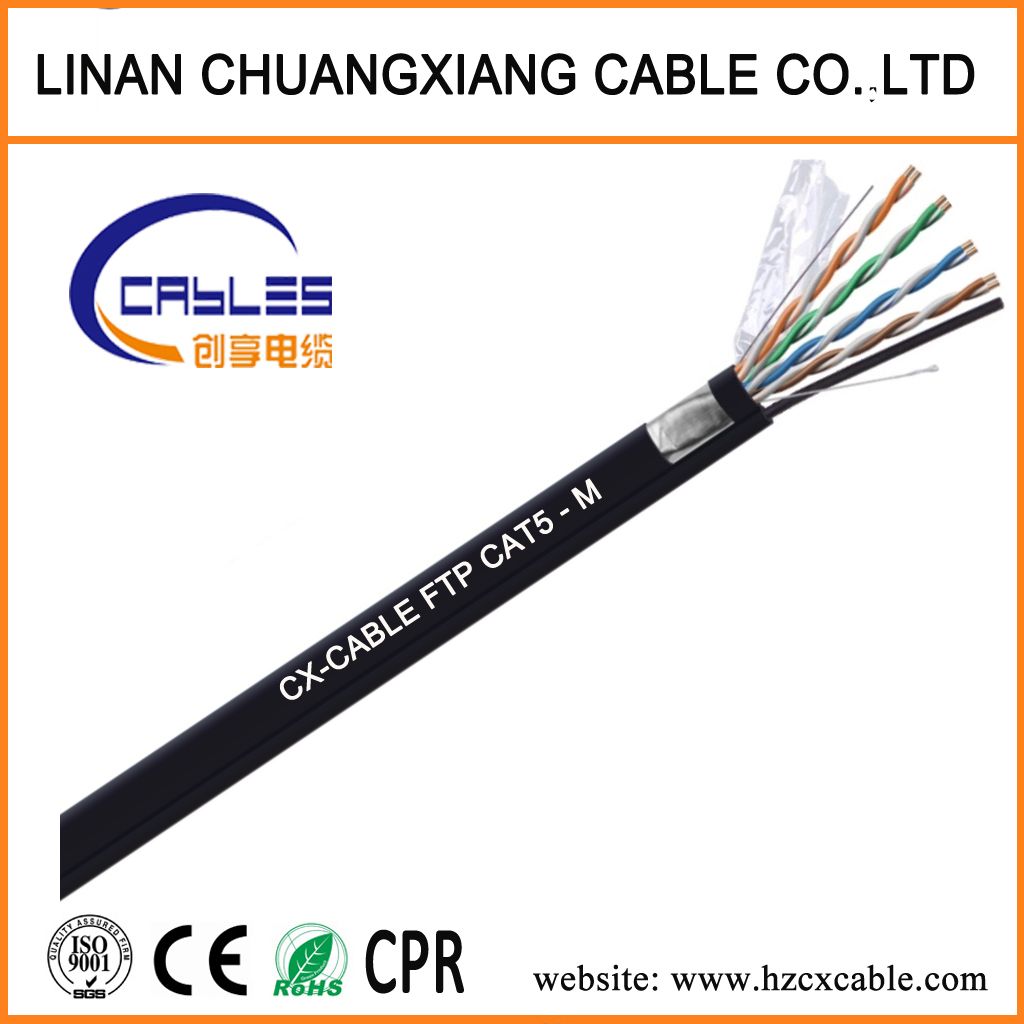

FTP Cat 5 LAN Cable with Messenger 0.5mm for outdoor Use

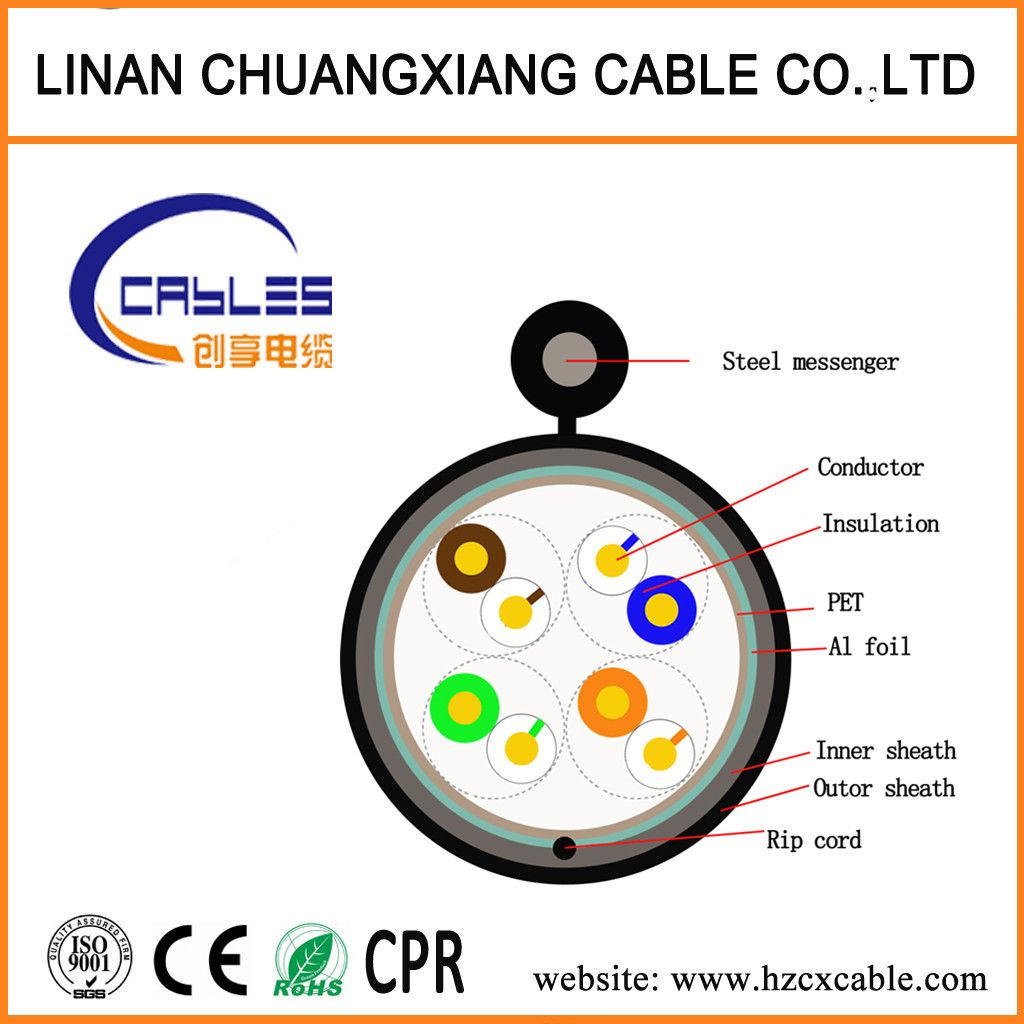

Construction:

Type	FTP CAT6 420.57
Conductor	0.57±0.01mm Bare copper
Insulation	1.0mm HDPE
Total number of insulated conductor	8, twisted in 4 pairs
Color code	white-blue/blue,white-orange/orange, white-green/green,white-brown/brown
Individual pair shield	none
Overall shield	PET+AL FOIL
Drain wire	none
Sheath	7.5mm PVC

Options: Jelly Compound, Jacket: UV, RoHS complied.

Application:
1 Meets or exceeds requirements of ANSI/TIA-568-C.2
Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance.
3 Used in station and all networking requirement(ISDN),ATM155Mbps,100Mbps TPDDI.
4 Certification: ISO9001; CE; ROHS; CPR
5 Standard: UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2,ISO/IEC 11801,YD/T1019-2013

Electrical Performance:

Impedance 1.0-100.0MHz (ohms)	100±15
D.C, Resistance @20ºC(ohms/km)	≤9.5
D.C. Resistance Unbalance(%)	Max 2.5
Insulation Resistance	>5000MΩ*KM
Rated Temperature	70ºC

Technical Performance:

Frequency (MHz)	Return loss (dB)	Attenuation (dB/100m)	NEXT (dB)	FEXT (dB)
1	20.00	2.00	74	66
4	23.01	3.80	65	54
10	25.00	6.10	59	46
16	25.00	7.60	56	42
20	25.00	8.50	54	40
31.25	23.64	10.7	51	36
62	21.54	15.5	47	30
100	20.11	19.80	44	26

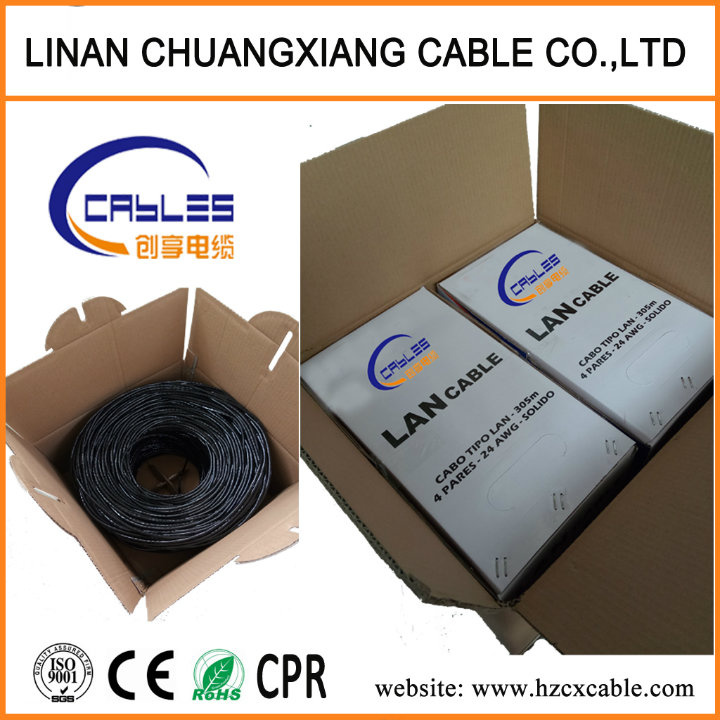

Cable Packing Details:
Network LAN Cable FTP CAT6

305m/pull box/Outer Carton
100M/pull box
500m/wooden reel/box
