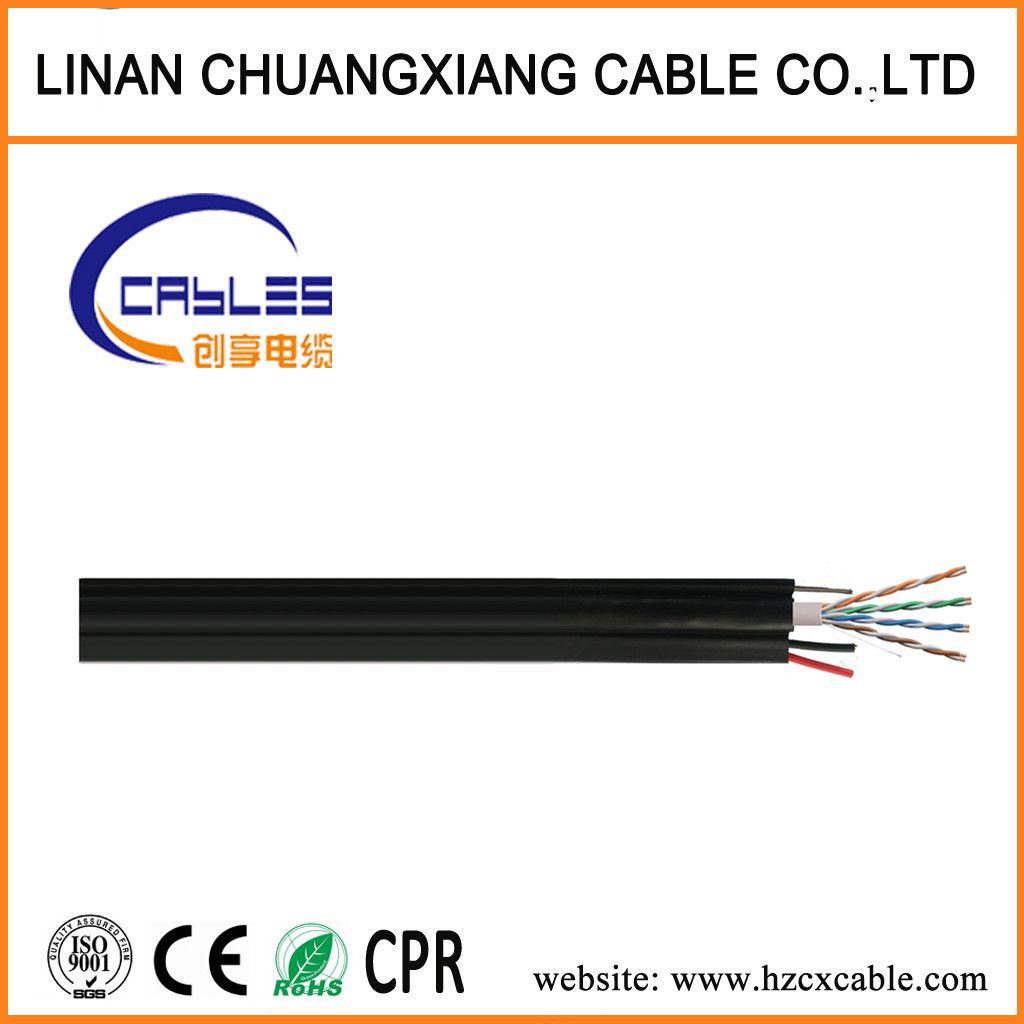

Outdoor Cat5e UTP Power Cable with Messenger

Name: Outdoor Cat5e UTP Power Cable with Messenger
Brand: all-electronics-online.com
SKU: 838783235
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	US $ 1-100BOX
Min Order:	100BOX
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT5E
Color:	Customers′request
Test:	Fluke Link
Type:	Bare
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PE
Certification:	VDE
Brand:	Cx-Cable

Product Description

LAN CABLE UTP CAT5e indoor use

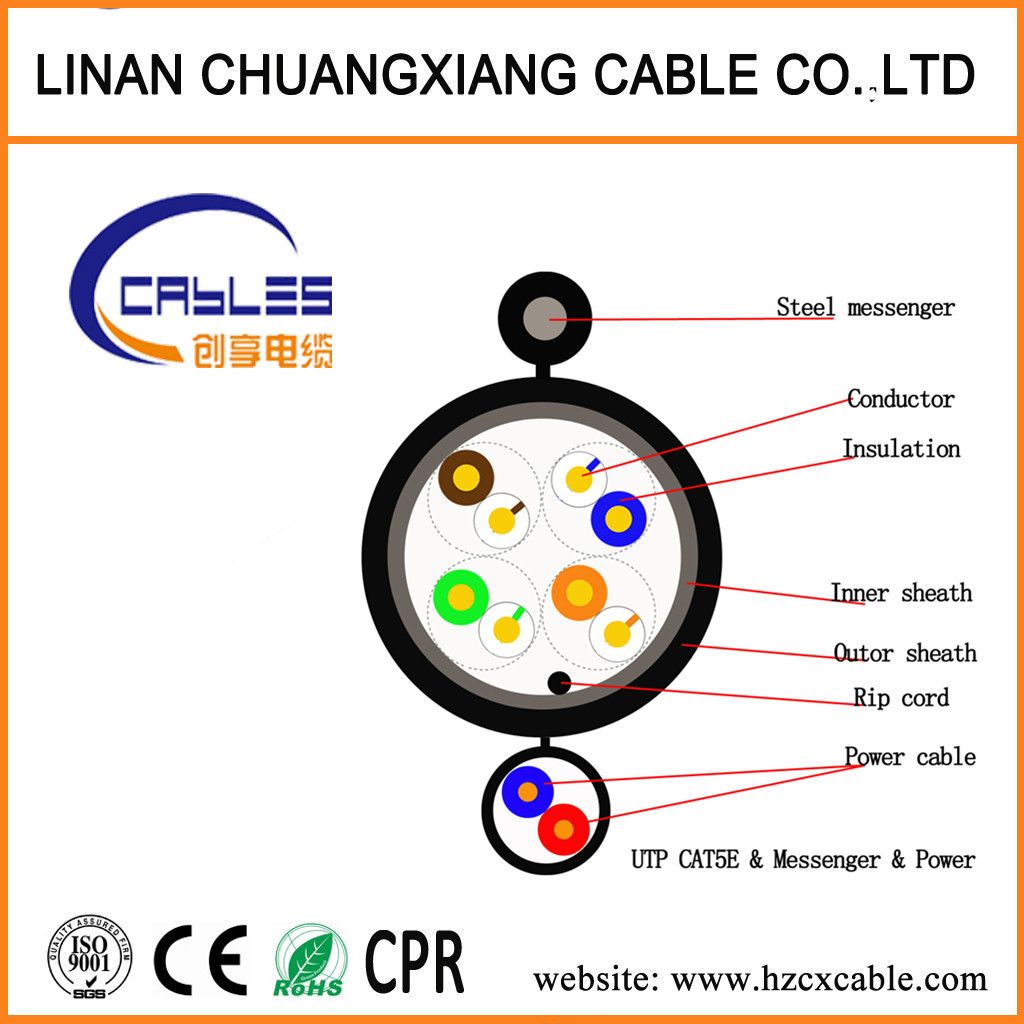

Construction:

Type	UTP CAT5e 420.51
Conductor	0.51±0.01mm Bare copper
Insulation	0.92mm HDPE
Total number of insulated conductor	8, twisted in 4 pairs
Color code	white-blue/blue,white-orange/orange, white-green/green,white-brown/brown
Individual pair shield	none
Overall shield	none
Drain wire	none
Sheath	6.1mm PVC

Options: Jelly Compound, Jacket: UV, RoHS complied.

Application:
1 Meets or exceeds requirements of ANSI/TIA-568-C.2
Category 5e and ISO 11801 2nd Edition Class D channel standards
2 Third party tested to Category 5e channel compliance.
3 Used in station and all networking requirement(ISDN),ATM155Mbps,100Mbps TPDDI.
4 Certification: ISO9001; CE; ROHS; CPR
5 Standard: UL758,UL1581,UL444,TIA/EIA-568,CSA C22.2,ISO/IEC 11801,YD/T1019-2013

Electrical Performance:

Impedance 1.0-100.0MHz (ohms)	100±15
D.C, Resistance @20ºC(ohms/km)	≤9.5
D.C. Resistance Unbalance(%)	Max 2.5
Insulation Resistance	>5000MΩ*KM
Rated Temperature	70ºC

Technical Performance:

Frequency (MHz)	Return loss (dB)	Attenuation (dB/100m)	NEXT (dB)	FEXT (dB)
1	20.00	2.10	64	63.8
4	23.01	4.30	55	51.7
10	25.00	6.60	49	43.8
16	25.00	8.20	46	39.7
20	25.00	9.20	44	37.7
31.25	23.64	11.80	42	33.8
62	21.54	17.10	37	27.6
100	20.11	22.00	34	23.6

Cable Packing Details:

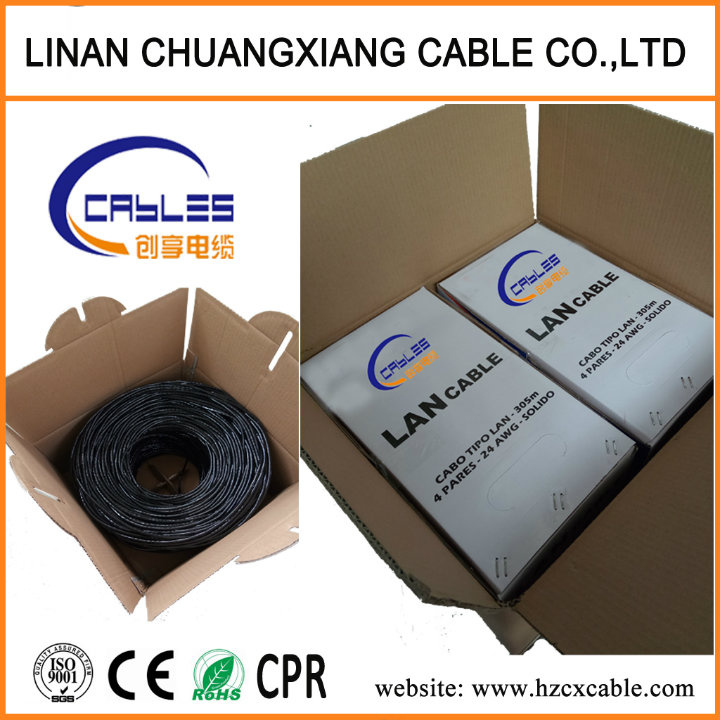

Network LAN Cable UTP Cat5e Indoor

300m/pull box/Outer Carton
100M/pull box
500m/wooden reel/box
