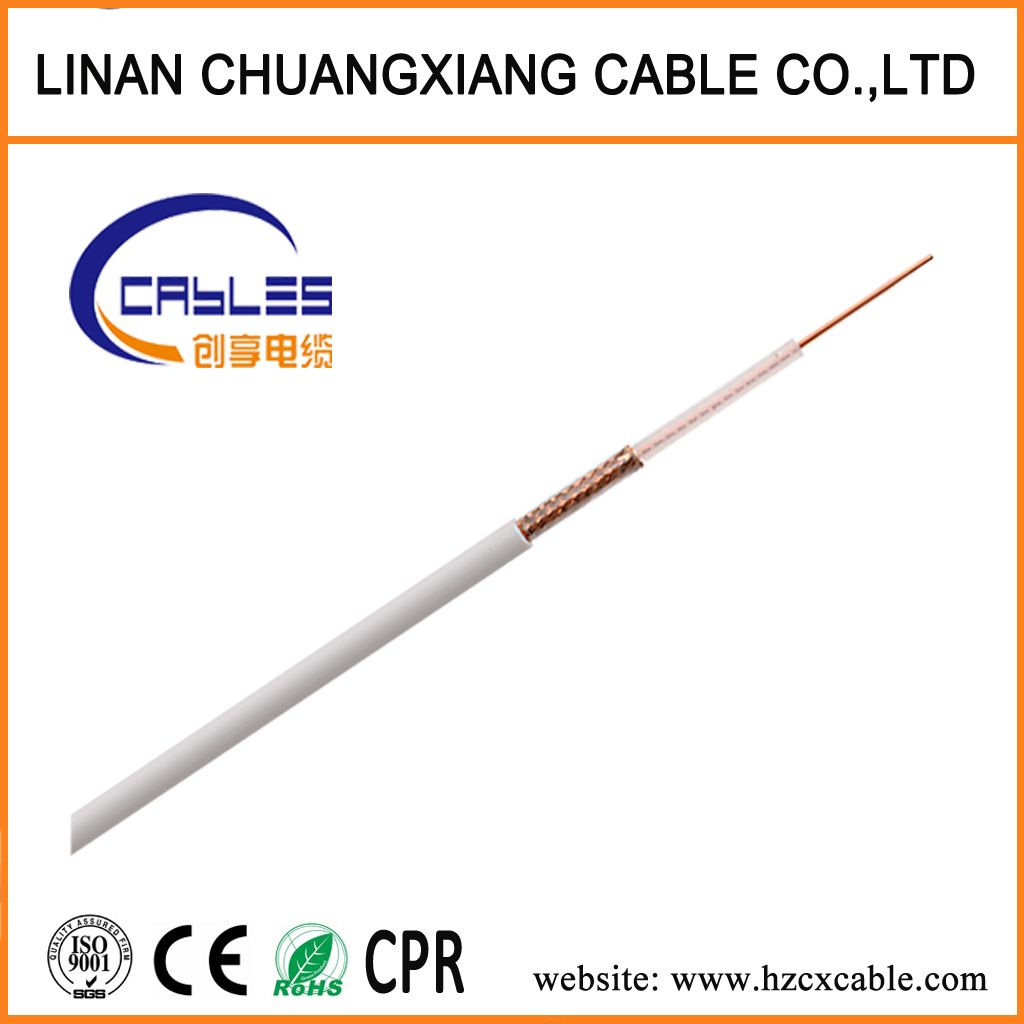

50ohm Rg58 Coaxial Cable

50ohm Rg58 Coaxial Cable
Price: US $ 0.07-0.25/Meter
Min Order: 15000/Meter
Pay Type: L/C,T/T,D/P
Center Conductor: 19X0.18mm Solid Copper/20 AWG Solid Copper
Dielectric: 2.95mm Solid PE
Shield: Bonded/Double/Al Foil
Braid Coverage: 40%-100% Bc/Tc/Al-Mg
Jacket: 5.08mm PVC
Jacket Thickness: 0.762mm
Application: Coaxial Cable
Cover Material: PVC
Certification: UL
Model: Rg58
Wire Core Material: Bc/CCS
Brand: Cx-Cable
Type: Coaxial Cable
Conductor Material: Bc/CCS

Product Description




50ohm Cable RG58 coaixal cable



Discription:


Type50ohm cable RG58 coaixal cable
Conductor19X0.18mm Solid Copper/20 AWG Solid Copper
Insulation2.95±0.05mm Foam PE
ShieldBonded/Double/AL Foil
Braid Coverage40%~100% BC/TC/AL-MG
Jacket5.08±0.01mm PVC


Electrical Performance:
Sparker Test2000VAC
Dielectric StrengthConductor to Shield : 1500 VDC
Impedance50±3 Ohm
Capacitance28.5±3 pF/Ft (Nom.)
Velocity of Propagation66%
DCRConductor: 10.55 ohms/1000Ft   Shield: 4.1 Ohms/1000Ft
SRL15dB (10 to 300 MHz) 100% Swept Test

Technical Performance:
Frequency
(MHz)
Maxinum Attenuation
(dB/100m)    @68o F. (20ºC.)
10.44
101.42
503.10
1004.50
2006.80
40010.0
70014.0
90016.0
100017.0


Contact Informations:
Vicki
Mob:0086 13282823725
Tel:0086 571 61107876   Fax:0086 571 61107877

Http:
www.hzcxcable.com
Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.

Our company supplies different kinds of Cables with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the cables with good quality at the reasonable price.

Our main products are LAN cable and coaxial cable. Every year, we will attend three or four exhibitions in the whole world to extend our cable business. Now, our main market is Africa, , the Middle East, and also Asia. We look forward to have the customers alll over the world.

Waiting for your contact and visit.
