Linan Chuangxiang Cable Co., Ltd. >> 50ohm Cable Rg8 Coaxial Cable

50ohm Cable Rg8 Coaxial Cable

50ohm Cable Rg8 Coaxial Cable
Price: US $ 0.5-0.9/Meter
Min Order: 15000/Meter
Pay Type: L/C,T/T,D/P
Center Conductor: 7*0.724mm Bc/CCS
Dielectric: 7.2mm Foam PE
Shield: Bonded/Double/Al Foil
Braid Coverage: 40%-100% Bc/Tc/Al-Mg
Jacket: 10.3mm PE/PVC
Jacket Thickness: 1.09mm
Application: Coaxial Cable
Cover Material: PVC
Certification: UL
Conductor Material: Bc/CCS
Type: Coaxial Cable
Wire Core Material: Bc/CCS
Model: Rg8
Brand: Cx-Cable

Product Description

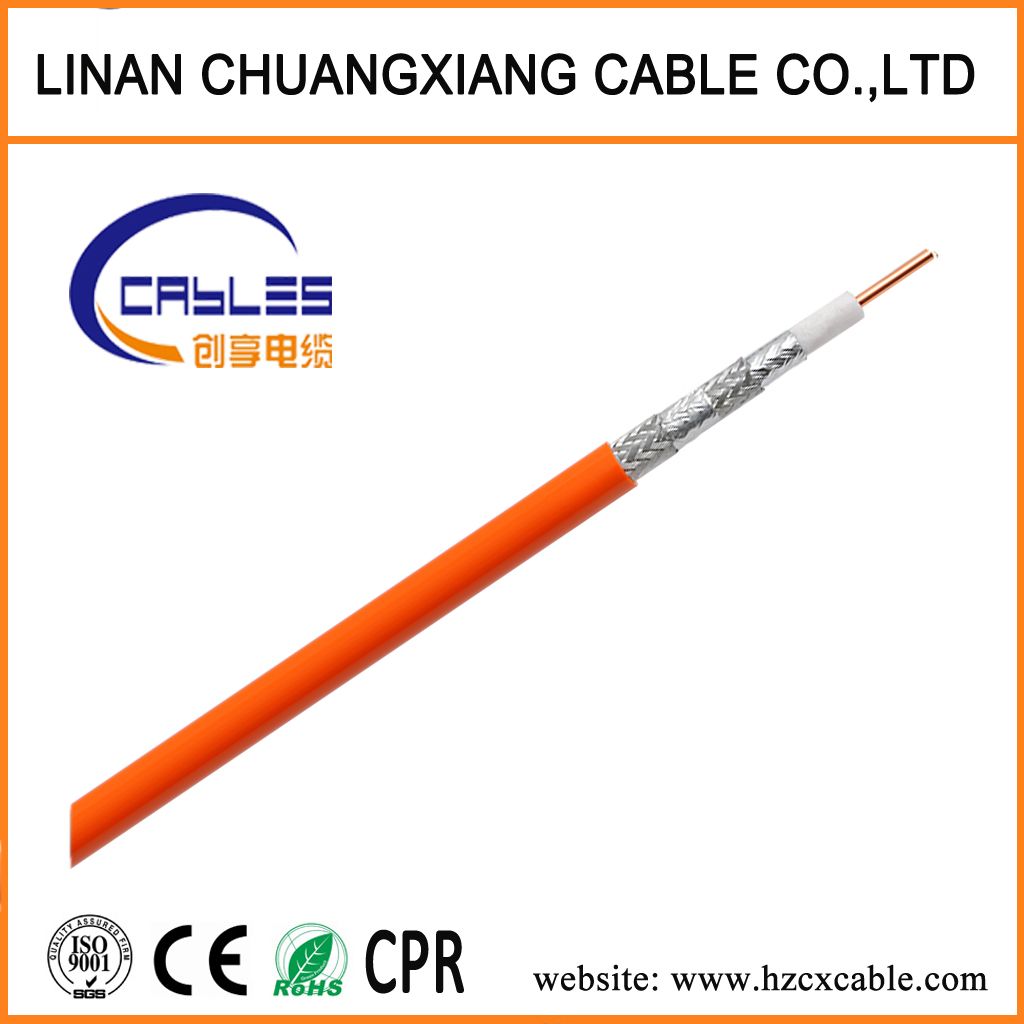

50ohm Cable RG8 coaixal cable



Discription:


Type50ohm cable RG8 coaixal cable
Conductor7*0.724mm BC/CCS
Insulation7.2±0.05mm Foam PE
ShieldBonded/Double/AL Foil
Braid Coverage40%~100% BC/TC/AL-MG
Jacket10.3±0.01mm PVC


Electrical Performance:
Impedance50±3 Ohm
Capacitance57 pF/Ft (Nom.)
Velocity of Propagation83%

Technical Performance:
Frequency
(MHz)
Maxinum Attenuation
(dB/100m)
503.90
1005.90
2008.90
40013.80
90022.0
100025.2

Minimum Return Loss(dB)
1-1000Mhz                        23
1000-2250Mhz                 19
