Linan Chuangxiang Cable Co., Ltd. >> 75ohm Cable Rg59 Coaxial Cable

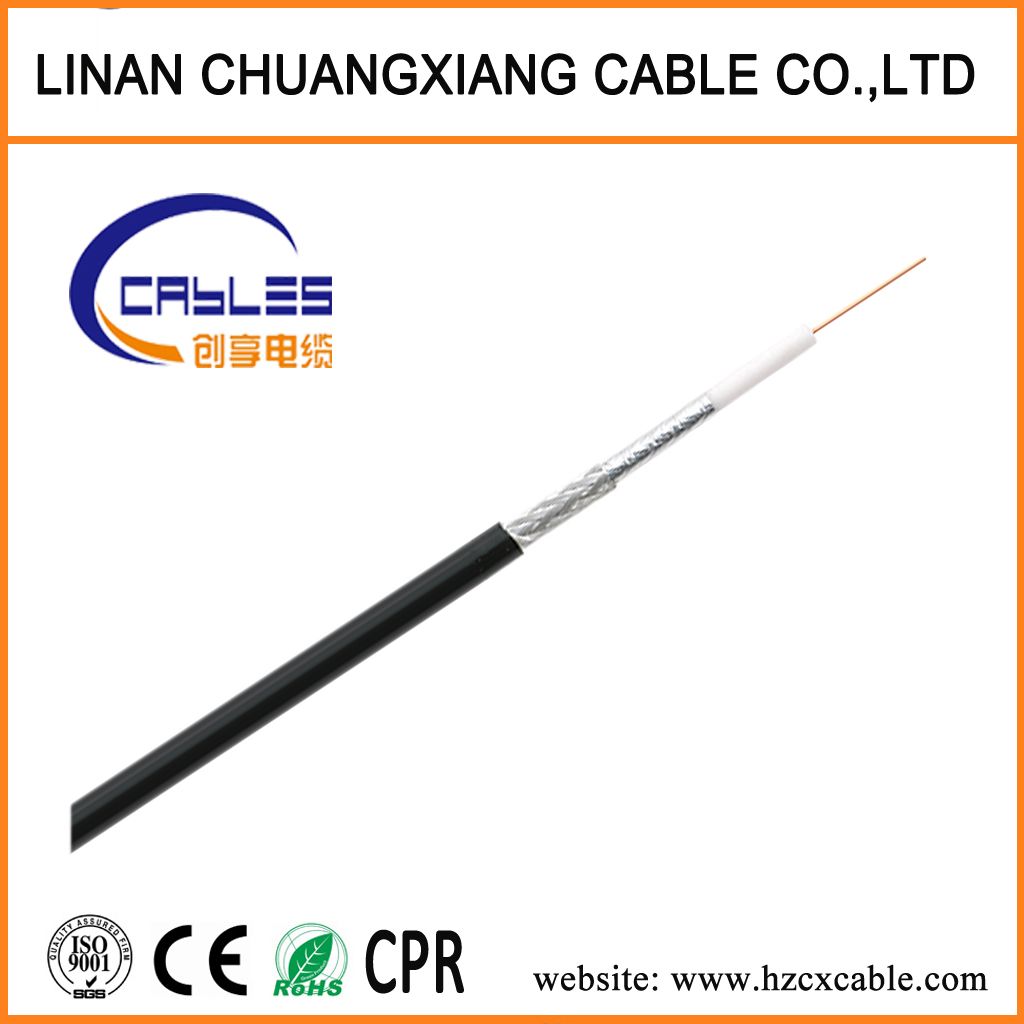

75ohm Cable Rg59 Coaxial Cable

75ohm Cable Rg59 Coaxial Cable
Price: US $ 0.07-0.25/Meter
Min Order: 15000/Meter
Pay Type: L/C,T/T,D/P
Center Conductor: 0.81mm Copper/Copper Clad Steel
Dielectric: 3.66mm Foam PE
Shield: Bonded/Double/Al Foil
Braid Coverage: 40%-100% Al
Jacket: 6.10mm PVC
Jelly/Apd: Per Customers' Special Requirement
Application: Coaxial Cable
Cover Material: PVC
Certification: UL
Conductor Material: Bc/CCS
Type: Coaxial Cable
Wire Core Material: Bc/CCS
Model: Rg59
Brand: Cx-Cable

Product Description




75ohm Cable RG59 coaixal cable



Discription:


Type75ohm cable RG59 coaixal cable
Conductor0.81±0.01mm Bare copper
Insulation3.66±0.05mm Foam PE
ShieldBonded/Double/Al Foil
Braid Coverage40%-100% Al
Jacket6.10±0.01mm PVC


Electrical Performance:
Impedance75±3 Ohm
Capacitance54±3 pF/m
Velocity of Propagation85% (min)
Return Loss20dB min (5-2300MHz)

Technical Performance:
Frequency
(MHz)
Maxinum Attenuation
(dB/100ft.)
Frequency
(MHz)
Maxinum Attenuation
(dB/100ft.)
50.864005.10
552.054505.40
832.455005.70
1873.605505.95
2113.806006.20
2504.107506.97
3004.458657.52
3504.8010008.12


Contact Informations:
Vicki
Mob:0086 13282823725
Tel:0086 571 61107876   Fax:0086 571 61107877

Http:
www.hzcxcable.com
Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.

Our company supplies different kinds of Cables with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the cables with good quality at the reasonable price.

Our main products are LAN cable and coaxial cable. Every year, we will attend three or four exhibitions in the whole world to extend our cable business. Now, our main market is Africa, , the Middle East, and also Asia. We look forward to have the customers alll over the world.

Waiting for your contact and visit.
