| Prod Model: |
DSC-FTP Cat5e Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| FTP Outdoor Cat5e Cable: |
0.51mmcca, Cu |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
UL |
| Model: |
FTP Outdoor Cat5e Cable |
| Brand: |
FTP Outdoor Cat5e Cable |
Product Description
FTP Cat5e Cable with CE,ISO,ROSH Certification
FTP Cat5e Cable
UTP Cat5e, Cat5e UTP,FTP Cat5e,SFTP Cat5e,Lan Cable,Network Cable,Data Cable
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or projec.
1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc
Cat5e Lan Network Cable Construction: FTP Cat5e Cable
Item |
Conductor |
Number Of Pairs |
Shielding |
Drain Wire |
O.D. |
Cat5e UTP Cable |
0.51mm
BC/CCA |
4 |
Non |
Non |
5.1mm Jacket
ROHS,UV,LSZH,UL,Reach |

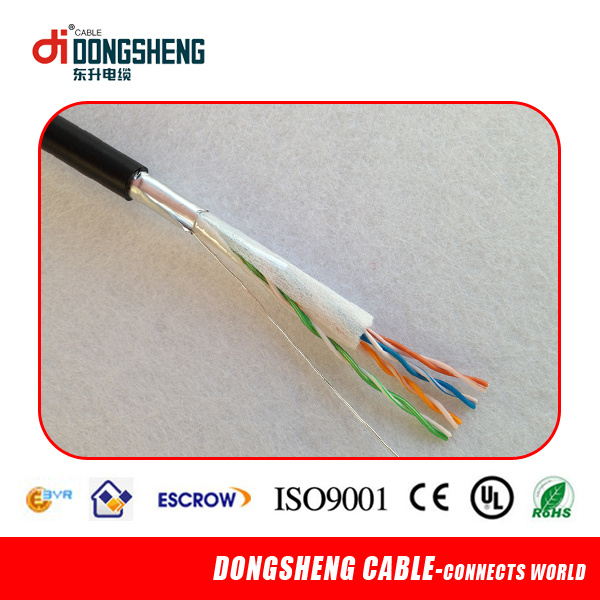

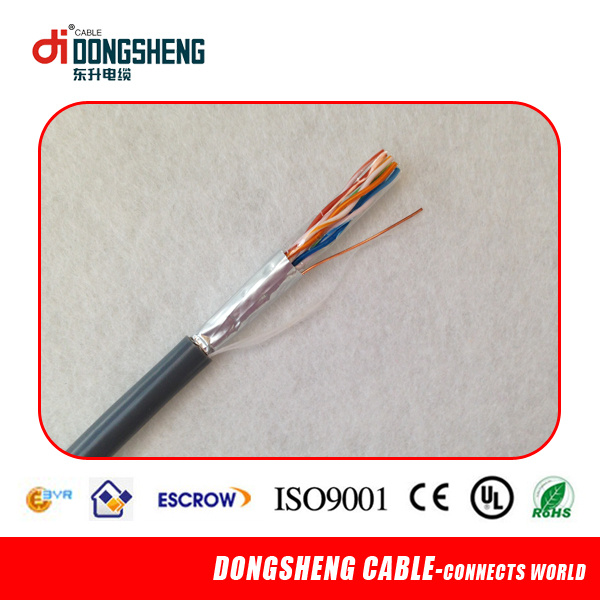

Cat5e FTP Cable |
0.51mm
BC/CCA |
4 |
Aluminum Foil |
Yes |
5.8mm
ROHS,UV,LSZH,UL,Reach |

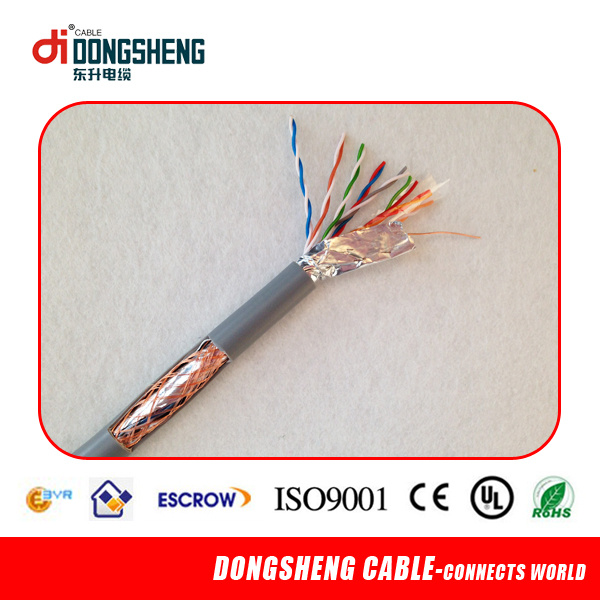

Cat5e SFTP Cable |
0.51mm
BC/CCA |
4 |
Aluminum Foil + Alloy Braiding |
Yes |
6.2mmJacket
ROHS,UV,LSZH,UL,Reach |
Cat5e UTP
Outdoor Cable |
0.51mm
BC/CCA
|
4 |
Non |
Non |
6.2mm Jacket
ROHS,UV,LSZH,UL,Reach |

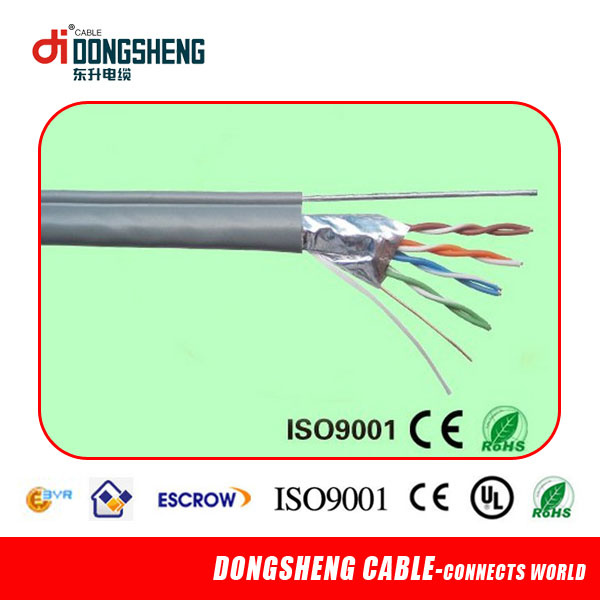

Cat5e FTP
Messenger Cable |
0.51mm
BC/CCA
|
4 | Aluminum Foil | Yes | 6.0mm JacketROHS,UV,LSZH,UL,Reach |
Cat5e UTP Cable Technical Performance(100m),UTP Cat5e Cable
Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Applications: Cat5e UTP Cable, UTP Cat5e Cable
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Packing: 2000m/wooden drum or 3000m/wooden drum, Customer's requirement also be welcomed
