FTP Cat5e RJ45 Plugs Modular

Name: FTP Cat5e RJ45 Plugs Modular
Brand: all-electronics-online.com
SKU: 646036865
Availability: InStock
Rating: 4.5 (48 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	by air / by sea / by courier
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RJ45 plug (A901B)
Plug:	RJ45 Plug
Gold-Plated:	Gold, 3u and 50u
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	GS
Condition:	New

Product Description

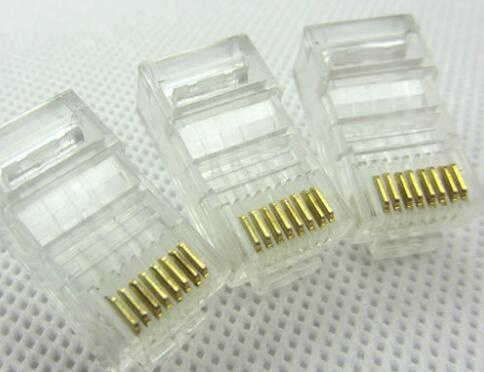

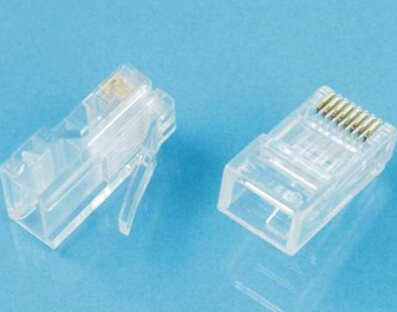

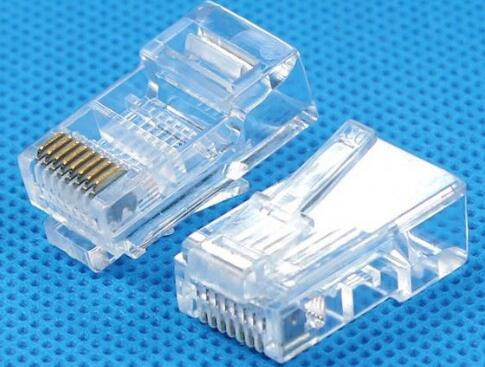

FTP Cat5e RJ45 Plugs Modular
RJ45 Plug

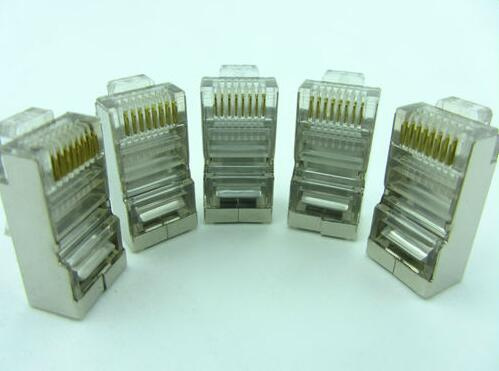

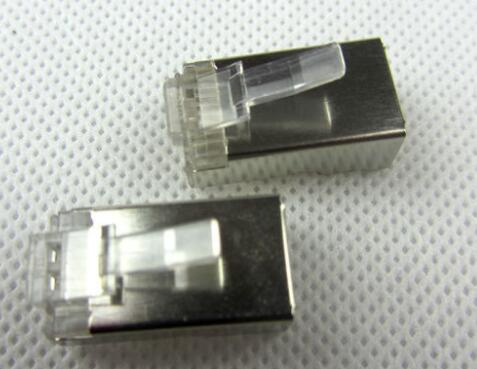

Cat.5e Modular plug 8P8C 3U-50U shielded

Specifications :

With UL mark
Voltage: 250V AC at 2A (maximum)
Dielectric withstand voltage: 500V AC
Insulation resistance: 100mΩ
Termination-resistance: 20mΩ (maximum)
Environment testing

Mechanical :

Cable to plug tensile strength: 20kg(minimun)
Durability: 200 mating cycles

Materials and finishing :

Housing: polycarbonate, UL94V-0 or UL94V-2
Color: transparent or others
Contact blade: phosphor bronze
Conductor: stranded and solid wire, 24 and 26AWG
Gold plating: 3mu and 50u inches

PLUG SPECIFICATIONS

1.Electrical Test:
A. Dielectric Withstanding Voltage test 1000V/DC
B. Insulation Resistance: >500MΩ.
C. Contact Resistance:<20mΩ

2.Gold Plate Inspection:
Per MIL-G-45204C
TYPE II (99% pure gold minimum)
Grade C+(KNOOP HARDNESS RANGE 130~250)
Class 1(50 microinches minimum thickness)

3.Mechanical:
A. Cable-to-plug tensile strength-20LBs(89N) min.
B. Durability:2000 mating cycles.

4.Material & Finish:
A. Housing Material: Polycarbonate(PC.)
94V-2(For UL 1863 DUXR2)
B. Contact blade: Phosphor Bronze
a. High strength copper alloy [JIS C5191R-H(PBR-2)].
b.100 microinches nickel under plated & Gold selected.
Operating Temperature:-40 ºC~+125ºC
