FTTH 1 Core Drop Fiber Drop Cable with Sc/APC

Prod Model:	Drop Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Aerial
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Strengthen Material:	Steel Wire/FRP
Outer Sheath Material:	LSZH/PVC
Application:	Probe
Certification:	ISO9001
Type:	Glass Fiber
Connection Structure:	Optical Fiber
Brand:	OEM or Tw-Scie
Sheath Material:	LSZH/PVC

Product Description

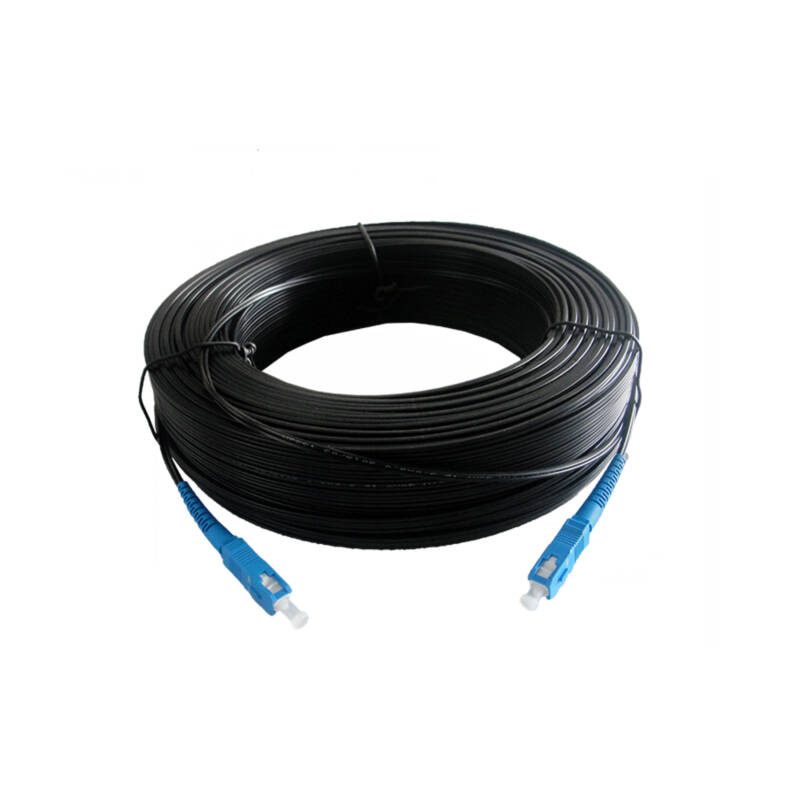

                    FTTH 1 Core Drop Fiber Drop Cable with SC/APC

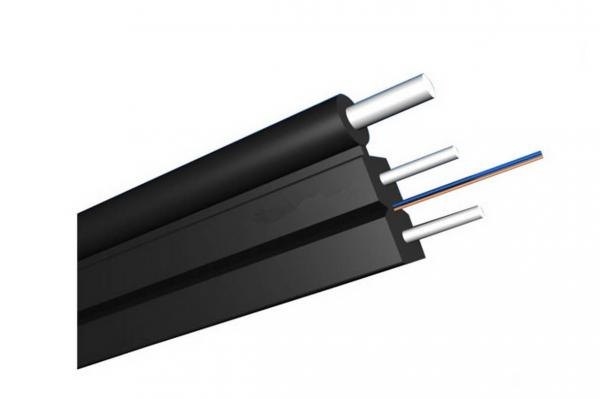

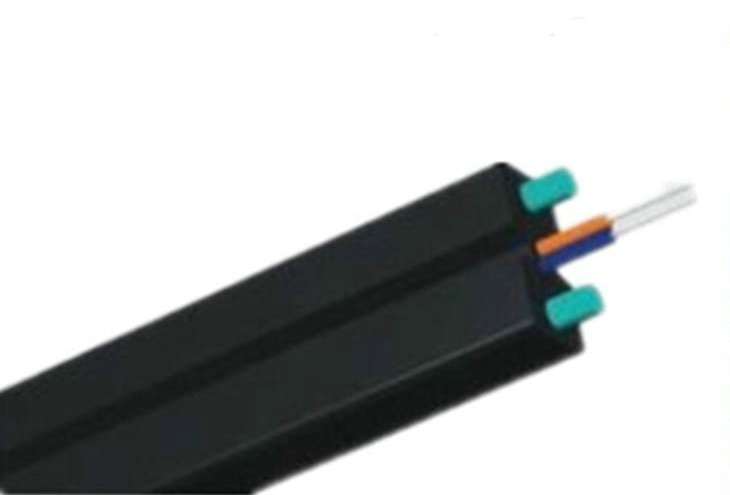

The 250um colored coating fiber is positioned in the centre. Two parallel FIber Reinforced Plastics (FRP)are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color UV and flame resistant LSZH sheath.

1. Product Construction:
Fiber:
1-4 fibers
250um colored coating fiber
Strength Member:
Steel wire or FRP (Fiber glass reinforced plastic)
Messenger Member:
Phosphatized steel Wire or zinc-coated wire
Outer Jacket:
UV and flame resistant LSZH
Features:
Good UV and flame resistant.
Bow type flat structure.
Compact, soft, flexible, easy to install.
Fig8 self-supporting design.
Designed for use with cheap attachment hardware.
Applications:
Used in access network or as access cable from outdoor to indoor in customer premises .
Used as access building cable in premises distribution system,
Especially used in indoor or outdoor aerial access cabling.

2. Options:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber

3. Optical Characteristics

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5


4. Structure and Technical Specification

Fiber Count	Cable Diameter          (mm)	Cable Weight         (kg/km)		Tensile Strength        (N/100mm)		Crush Resistance                 (N/100mm)
				Short Term	Long Term	Short Term	Long Term
1-4	5.2*2.0	18		600	300	2200	1000

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
          more information.
         2.The cable core use the colored coating fiber of 250μm.
         3.The tensile and crush of the cable are accordance with the values in the table when the strength member of  FRP and Steel are used.

5. Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.

6. Shipping & Delivery
We will send the products within 15 days.
We ship small batched by air, or large orders by container.

7. Return and Warranty:
All products have been tested before ship out
All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers
