FTTH 12/24core Flat Fiber Optical Cable with FRP Strength Member

Prod Model:	GYFXTY-FL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Armored:	No Armored
Fiber Type:	G652D
Fiber Material:	Doped Silica
Strength Member:	Two Parallel FRP
Material Of Jacket:	HDPE/Lszh /Flame Retardant Sheath
Tube:	Central Loose Tube
Bend Radius:	Static 10*Cable-D: Dynamic 20*Cable-D
Applications:	Aerial, Conduit, Underground
Fiber:	Single Mode
Certificate:	ISO9001 Tlc RoHS
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Brand:	Efon
Sheath Material:	PE/Lszh Sheath/Flame Retardant PE/Anti-Rodent PE

Product Description

                 G657A ADSS 2/12/24 core Single Mode Flat Optical Cable for Outdoor(GYFXY-3)

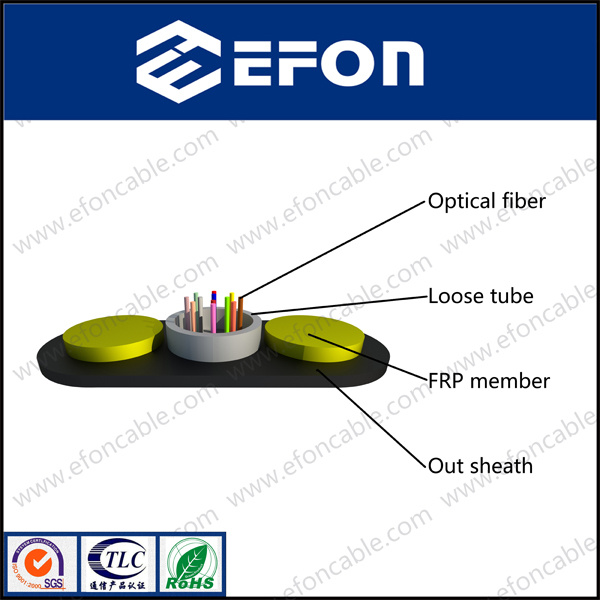

Description


 The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. Water blocking yarn wrapped which used for waterproof resistance. Two FRP(Kevlar) strength  member provide high tensile resistance. Outer sheath is made of UV resistance PE jacket. All  dielectric cable construction allows hanging on electric poles and power lines with up to 12KV.


Feature
All-dielectric cable construction
Flat cable, Unitube design. Up to 12fibers.
Suitable for outdoor and indoor usage
Compact structure, small size and light weight.
Water blocking, UV resistance, High and low temperature resistance.
Adopt strict process and raw materials control guarantee the lifespan more than 30 years.

Application:

For laying inside buildings, in risers, attics, basements, sewers and pipelines.
It's a good choise for last mile FTTX project.
Fiber optic Cable for Aerial


PRODUCTION LINE

PACKAGING


Products Standard

Mechanical Performance:
Max Tension Performance:    IEC 60794-1-2-E
Max. Operation Tension:       IEC 60794-1-2-E1
Crush Test:                          IEC 6079 -1-2-E3
Impact Test:                        IEC 60794-1-2-E4
Repeated Bending:                 IEC 60794-1-2-E6
Torsion Test:                       IEC 60794-1-2-E7
Cable bend:                          IEC 60794-1-2-E11A
Attenuation Coefficient:         ITU-T G. 652
Structural Test:                    IEC-60793-1-20
Environmental Performance
Temperature Cycling:           IEC 60794-1-2-F1
Water Penetration:                IEC 60794-1-2-F5B
Filing Compound Flow:         IEC 60794-1-E14


Technical Parameters

Fiber Count		2-8	10-12	14-24
Diameter of Strengthen member (FRP)		2x1.5mm
Reinforcing material		Fiber glass yarn/Kevlar yarn
Diameter of Loose tube(mm)		2.1	2.1	As requirement
Diameter of Cable(mm)		5.2*9.3	5.2*9.3
Gross weight(Kg/Km)		40	40
Min. bending radius		Static 30xD     Dynamic 40xD
Max. tensile force, N		Short term/ Long term   1000N/400N
Max Crush Resistance(N/100mm)		Short term/ Long term   1000N/300N
Allowable Temperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C
