FTTH 2 Cores Singlemode Fiber Optic Drop Cable

Prod Model:	FTTH
Model No:	GYTS Outdoor Loose Tube Fiber Optic Cable
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,as Your Requiremen
Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Blue, Orange, Green, Brown etc
Central Strength Member:	Steel Wire or FRP
Single Armour Material:	Corrugated Steel Tape
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Duct,Aerial
Application:	Outdoor Loose Tube Fiber Optic Cable
Certification:	Reach, Tlc etc.
Type:	Single-Mode or Multi-Mode Fiber
Connection Structure:	Outdoor Loose Tube Fiber Optic Cable
Allowed Lateral Pressure:	Short Term 1000n; Long Term 300n
Allowed Tensile Strength:	Short Term 1500n; Long Term 600n
Core:	2-288 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / LSZH PE

Product Description

Flat Optical Fiber Cable GJXFH SZH Sheath Fiber Optic Drop Cable




1. Description

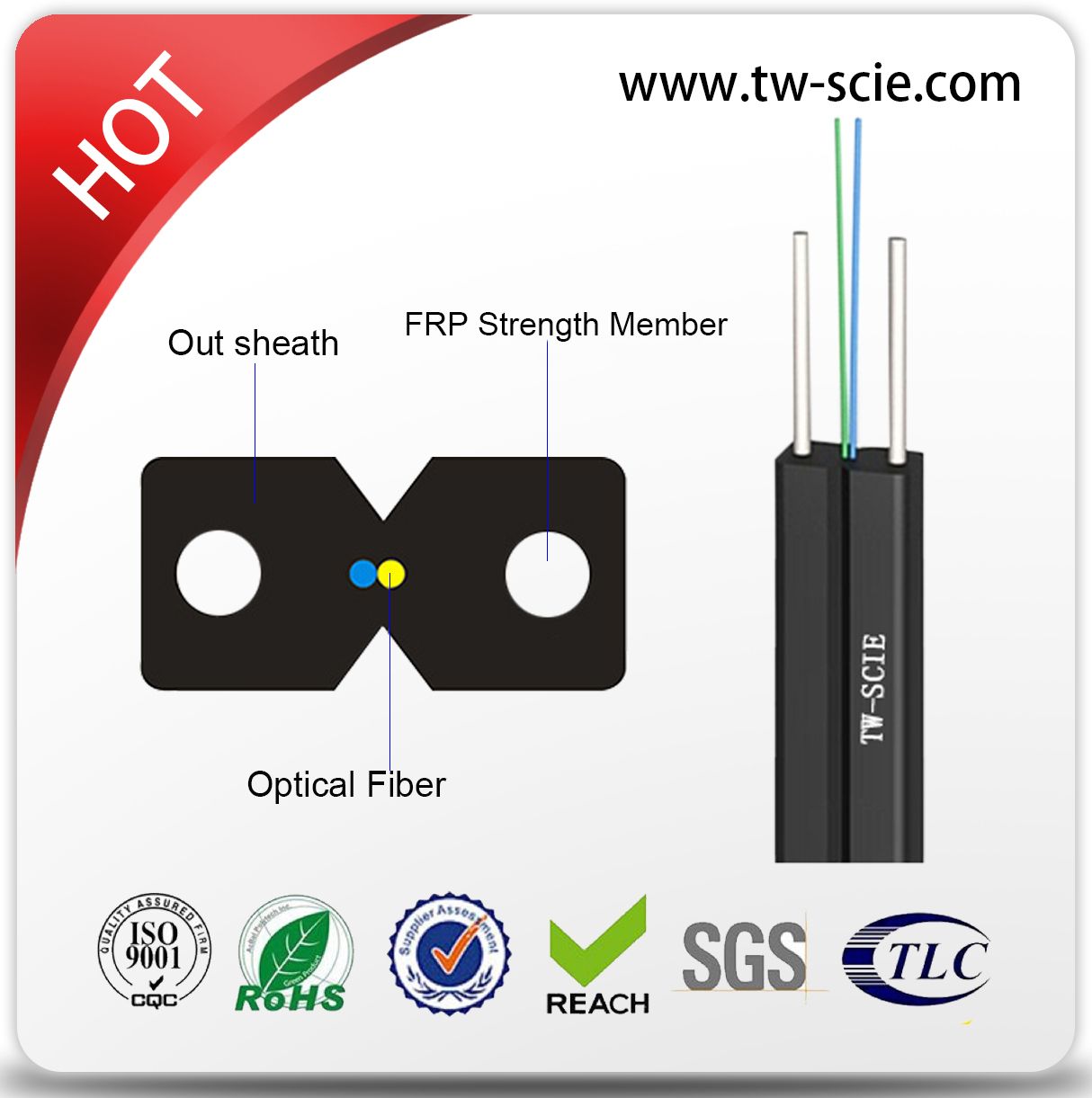

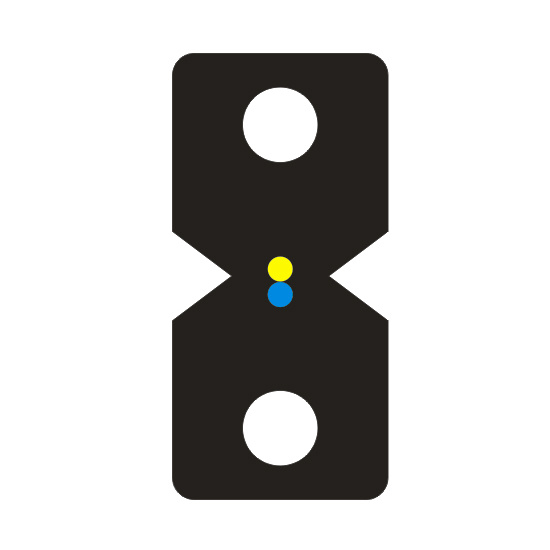

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

2. Optical Characteristics

Items		Fiber type
		G.652	G.657
Attenuation(+20ºC)	@1310nm	≤0.45dB/km	≤0.45dB/km
	@1550nm	≤0.30dB/km	≤0.30dB/km
Cable Cut-off Wavelength λcc		≤1260nm	≤1260nm


3. Technical Parameters

Cable type	Fiber count	Cable diameter	Cable weight	Tensile Strength	Crush resistance	Bending Radius
		mm	kg/km	Long/short Term N	Long/Short Term N/100mm	Static/Dynamic mm
GJXH/GJXFH	1	3.0*2.0	8	30/60	300/1000	10D/20D
GJXH/GJXFH	2	3.0*2.0	10	30/60	300/1000	10D/20D
GJXH/GJXFH	4	4.0*2.0	12	30/60	300/1000	10D/20D


4. Features:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the
fiber;
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.


5. Our Serivces
Any question will be replied within 24 hours.
Professinal manufacture,Welcom to vist our company.
100% test before shipping.
OEM/ODM is avaliable(As required print logo and customized color).
Fast delivery time(2 days for samples,order 3~7 days for bulk production)





6. FAQ
Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic Cables, PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
Can you send free samples?
Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
The cable marking can be as required to printing?
Yes,You have only to give us your marking.
