FTTH Communication and Telecom Drop Optical Fiber Cables Price

Prod Model:	Indoor FTTH
Product Name:	Drop Cable
Messenger Material:	Steel Wire
Other Messenger Material:	FRP, Kfrp
Jacket Material:	LSZH
Jacket Color:	Black, White
Optical Fiber Type:	G.657A
Outer Diameter Of Cable:	2.0mm*3.0mm
Diameter Of Messenger Wire:	0.45mm
Place Of Origin:	China (Mainland)
Fiber Count:	1-4 Fiber
Application:	Drop Cable
Type:	Single-mode Fiber
Certification:	Tel, Reach
Connection Structure:	Drop Cable
Core:	1-4 Core
Sheath Material:	LSZH

Product Description

FTTH Indoor Fiber Optical Cable of Round  Structure for Transmission


1. Recommended laying methods:
Drop Cable used in access networks or as access cable from outdoor to indoor in customer premises networks
Product Description


type	GJXH
core	1
gauge(mm)	2.0*3.0
weight (kg/km)	9.2
long-term tensile strength(N)	100
short-term tensile strength(N)	200
static bend radius(mm)	15
dynamic bend radius(mm)	30

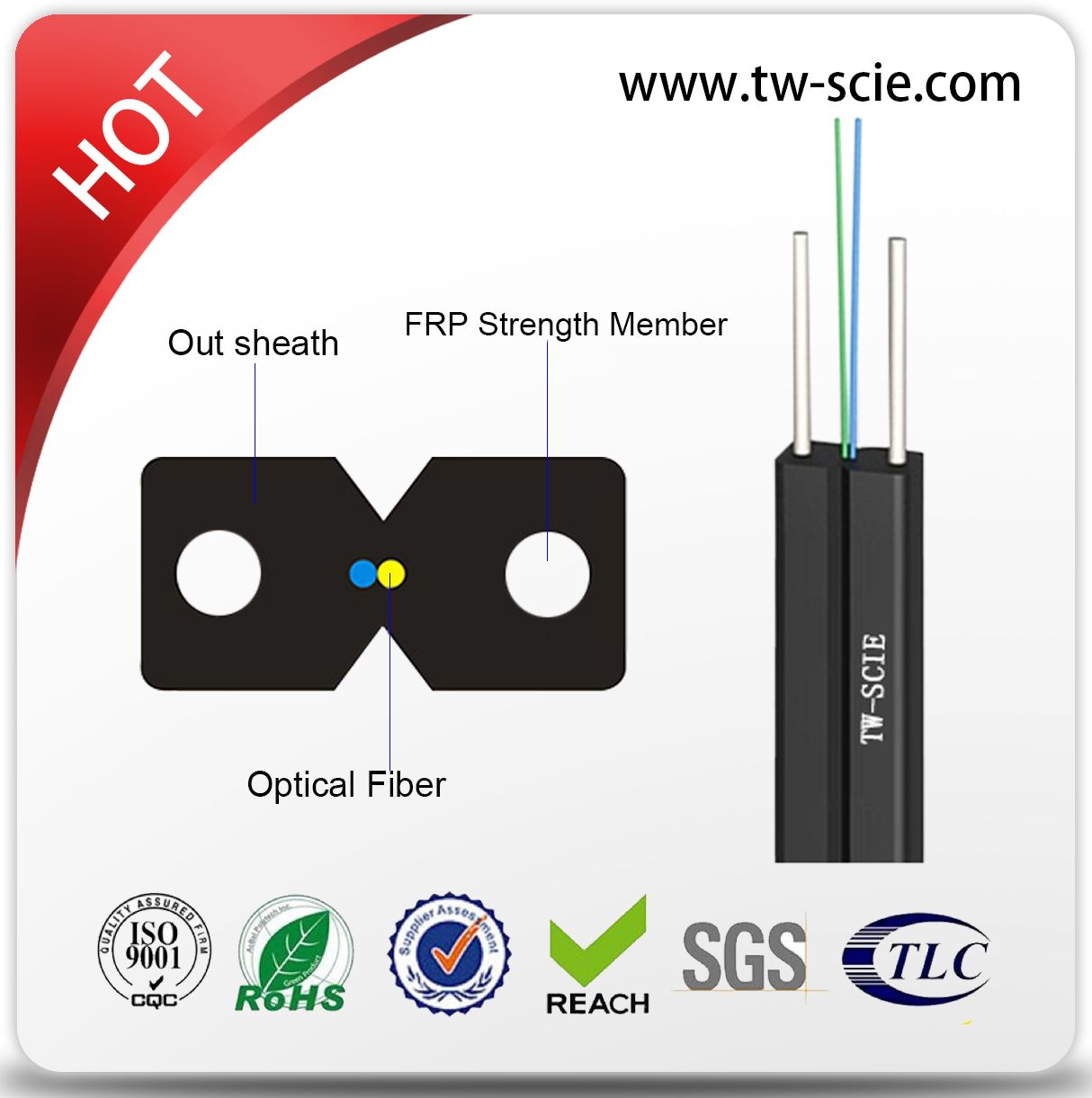

2. Drop Cable Structure characters:
Good mechanical and environmental characteristics
Drop Cable 's Flame retardant characteristics meet the requirements of relevant standard
The mechanical characteristics meet the requirements of relevant standard
Soft, flexible, easy to lay and splice and with big capacity data transmission
Meets various requirements of market and clients

3. Different FTTH SPECIFICATIONS

Fiber Count	Cable OD	Net weight	Tensile Strength Long/Short Term	Crush Resistance Long/Short Term N/100mm	Bending Radius  Static /Dynamic mm
1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
3	(2.0±0.2)×(3.5±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)×(4.0±0.2)	10	30/60	300/1000	15/30

4. Drop Cable should be used
Used in the access network or CPN introduced into the room from the outside cable
Integrated wiring in buildings used for the introduction of cable, especially when the introduction of indoor or outdoor overhead wiring

5. Drop Cable Features
Has good mechanical and environmental performance
Flame (or retardant) performance to meet the standards
Sheath of the mechanical and physical properties to meet the relevant standards
Easy installation, flexible, convenient connecting and supporting high-capacity data transmission
Meet market and user demands

6. Drop Cable Customization
Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber
Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material
Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color
Cable Size: Nominal fiber size, but also other agreed size
Delivery length: 1km or 2km, but also other agreed length
Other requirements: Other special requirements agreed

7. The main products of our enterprise are:
Drop cable, optical cable, drop cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
 It covers an area of 2 million square meters,construction area is 0.6 million square meters, main products form a big whole industry chain, and can be devided into 9 categories:
1.optical fiber
2.indoor & outdoor optical fiber cable (armored & nonarmored cable , drop cable etc)
3.CAT5 CAT5E CAT6 CAT7 network lan cable (both UTP and FTP)
4.municipal telephone cable (HYA,HYAC,HYAT,HYV etc)
5.patchcord, fiber jumper
6.fiber pigtail
7.EPON,GPON , data center solutions and equipments
8.FTTH products
9.OEM products, customized new cable

Its yearly productive capacity is 4 million core kilometers, 0.5 milliion boxes, and 6 million pair kilometers.

6 advantages:
1.top-class equipments imported from the US, Japan and EU
2.advanced technical arts
3.innovation team
4.modern management
5.high quality staff
6.CE,UL,ROHS,CCC,ISO9001 certicication


8. All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.

ITEMS	UNITS	SPECIFICATION
Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100
