FTTH Communication and Telecom Fiber Drop Cable

Prod Model:	FTTH
Fiber Count:	1 Fiber
Sheath Color:	Black
Material:	LSZH
Strengthen Member:	Steel Wire/ FRP
Cable Type:	Indoor
Certified:	ISO, Ce, UL
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Sheath Material:	PE

Product Description

FTTH Communication and Telecom Fiber Drop Cable





Application:
1. Adopted to indoor distribution.
2. As pigtail of communication equipment
3. Suitable for communication equipment
4. Can be installed conveniently

Characteristics:
1. Weight, low cost, and practicability.
2. Suitable for limited space field of the branch, indoor series
3. Laid to facilitate construction operations;part and the cable
4. Jacket use low smoke, halogen-free flame-retardant materials.
5. Prevent lightning and strong electric environment;
6. FRP or KFRP strengthen the component materials.

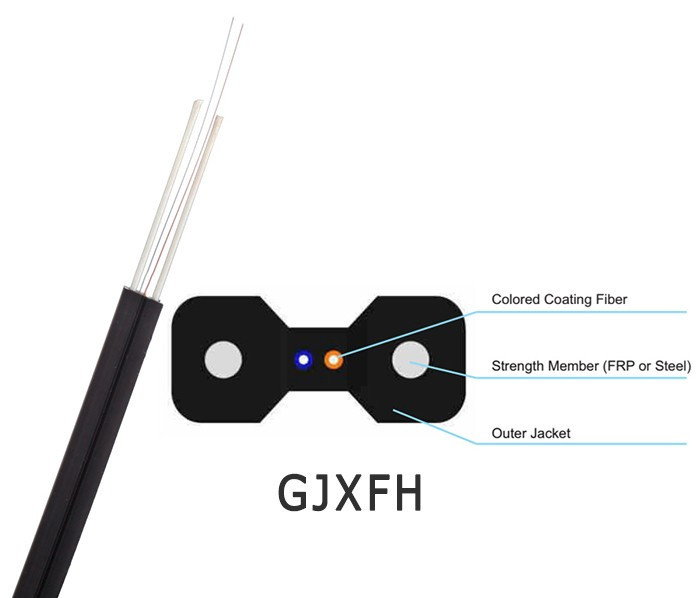

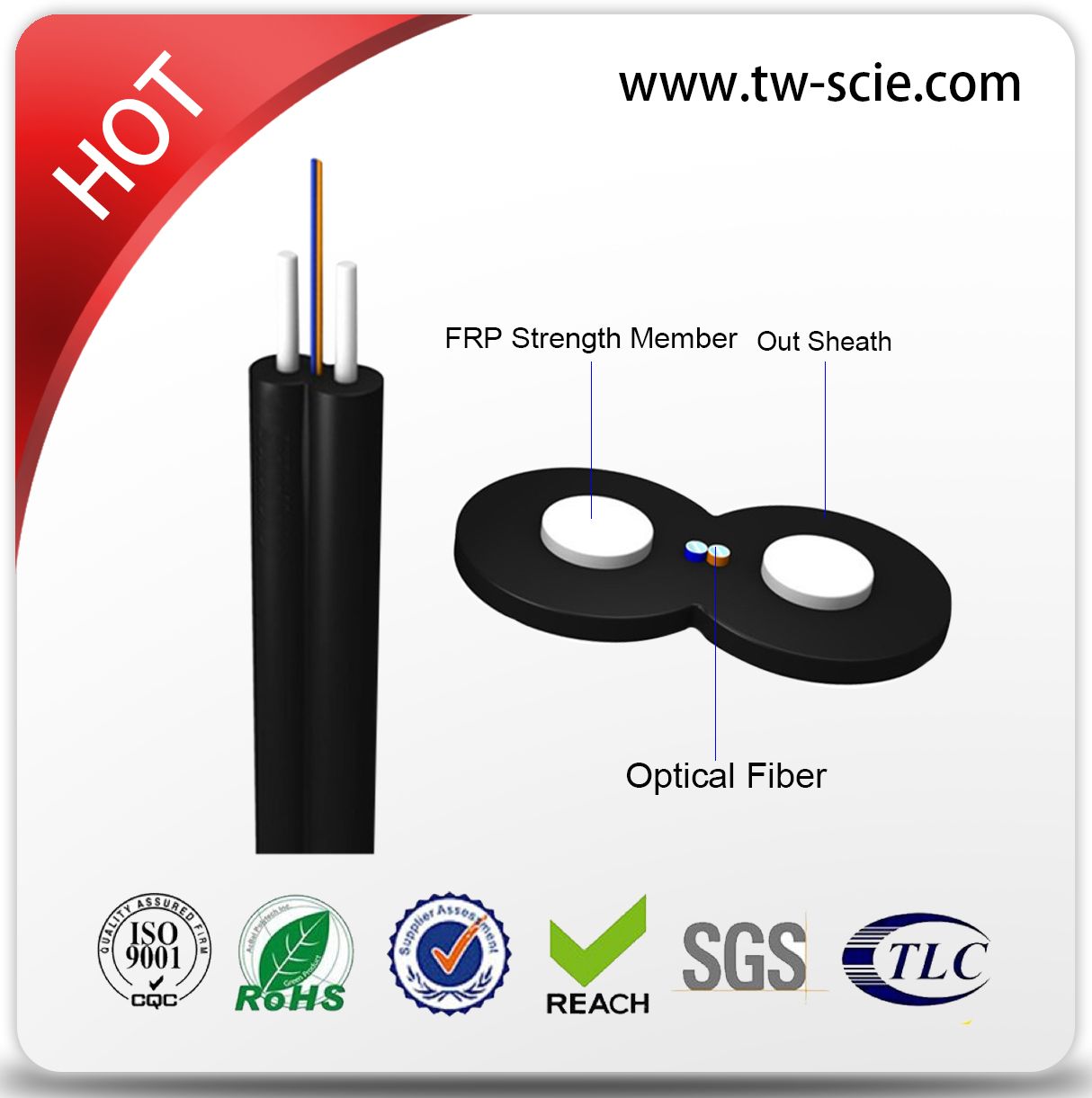

 Cable construction details :


Items			Description
Number of fiber			1core
Fiber	type		G657A
	diameter		250µm
Strength member	material		Galvanized steel wire/FRP/KFRP
Cable sheath thickness	/		Max. 0.8mm/Min. 0.4mm
	/		/
Outer sheath	material		LSZH
	diameter		1.8±0.2mm
Cable size (Height * width)			3.0(±0.1) mm ×2.0 (±0.2)mm
Cable weight			8.5 KG±1KG
Installation Temperature range(ºC)			-20+60
Operation and transport temperature(ºC)			-40+70
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	40
Min allowable Tensile Strength(N)		Short term	80
Crush Load (N/100mm)		Long term	500
Crush Load (N/100mm)		short term	1000



Fiber characteristic:


Fiber style		Unit	SM  G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
			0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	>=400	>=160	Bandwith
	1300nm	MHZ.KM	----	----	>=800	>=500
Zero dispersion wavelength		nm	1300-1324	>=1302, ≤1322	----	----	>= 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	>= 1180, ≤1330	>=1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----

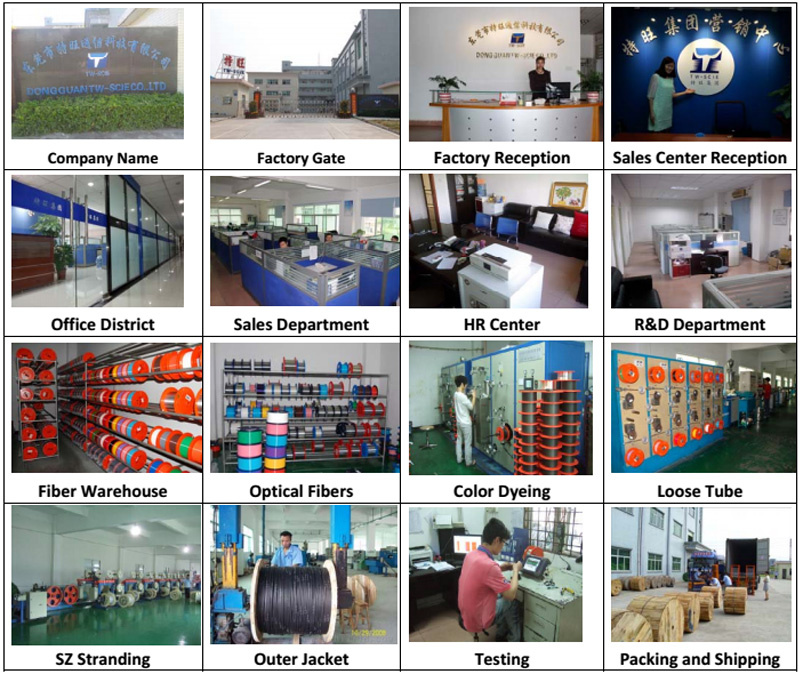

Our Company:
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.


Requirement for Order:
1. Fiber sort: Single mode G652,G655,G657, Multi mode 50/125,62.5/125,OM3,OM4.
2. Fiber brand: YOFC, Corning, Fiberhome Fujikura, OFS etc.
3. Sheath material: PE,LSZH, PVC( can be required).
4. Sheath color: Black ,can be required.
5. The fiber and tube color: according to stranded color, can be required.
6. The cable Size: shall be in accordance with the table, can be required.
7. Length of cable: generally is 2KM, can be required.
8. Other requirement:can be negotiated.

Package :
1. Packing material: Wooden drum
2. Packing length: Customzied

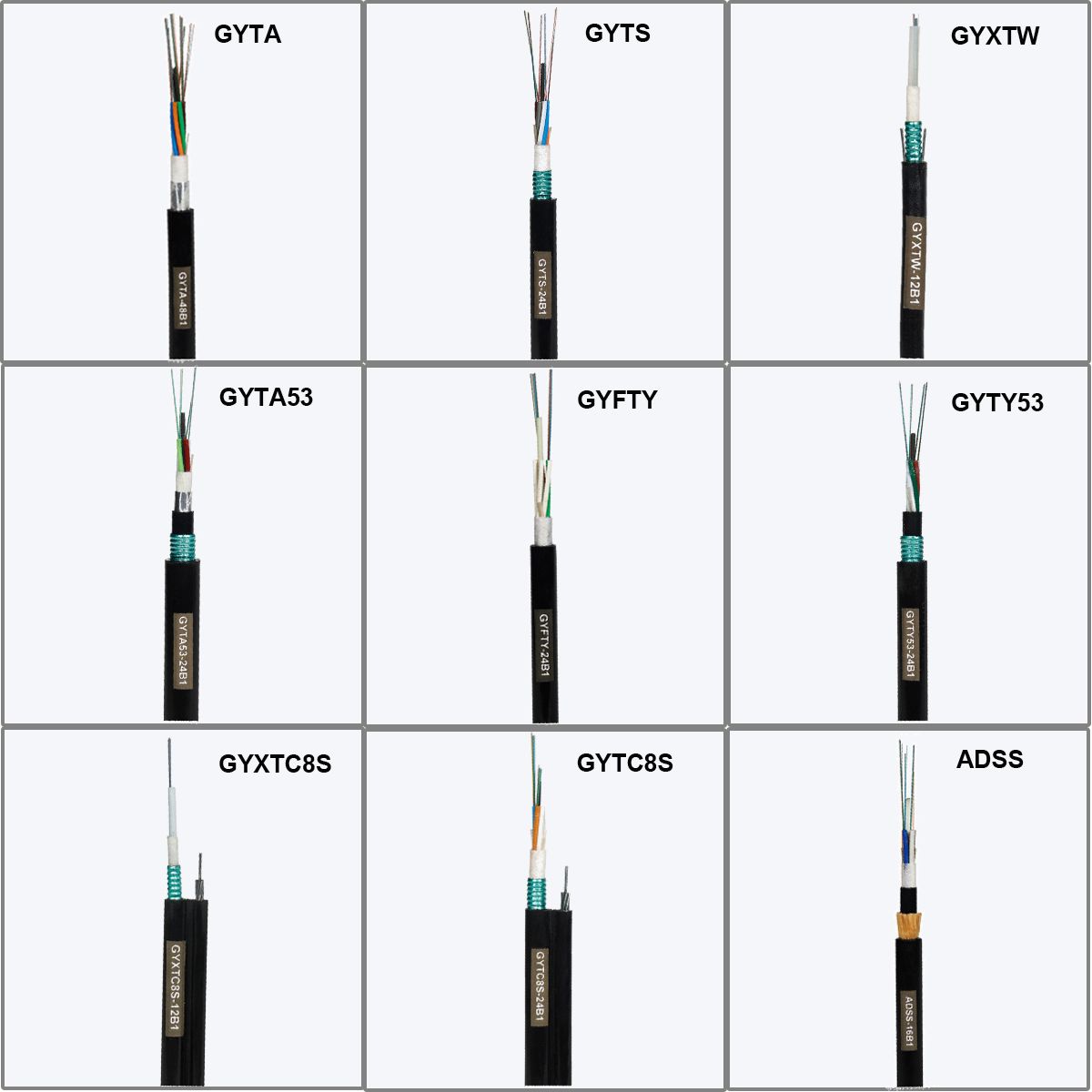

More Products:



FAQ:

1.Are you a real manufacturer?

Yes.  We are a real manufacturer  with 10 years' history.

2.What is your fiber brand ?

Corning, YOFC, FiberHome, etc



3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.



4.What is your warranty period?

25 years for fiber optic cable



5.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.



6.What is your delivery time?

Usually within 3-10 working days



7.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.



8.What is your payment way?

 T/T, L/C, Western Union and Paypal.
