FTTH Communication and Telecom Indoor Duplex Optical Fiber Drop Cable
| Price: |
US $ 0.1-2.5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
duplex drop cable |
| Characteristics: |
High Strength Yarn Member |
| Application For: |
as Building to Building Connecting Cable. |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
According to Customers Request |
Product Description
FTTH Communication and Telecom Indoor Duplex Optical Fiber Drop Cable
Characteristics:
1. High strength aramid yarn member.
2. Small outer diameter, lightweight, flame-retardant, soft and easy to strip
3. High quality tight buffered or loose tube.Application:
1. As building to building connecting cable.
2. As indoor soft cable along the wall, ceiling, between layers and in conduits.
3. As pigtails, movable, connectors and patch cord for communication equipment.

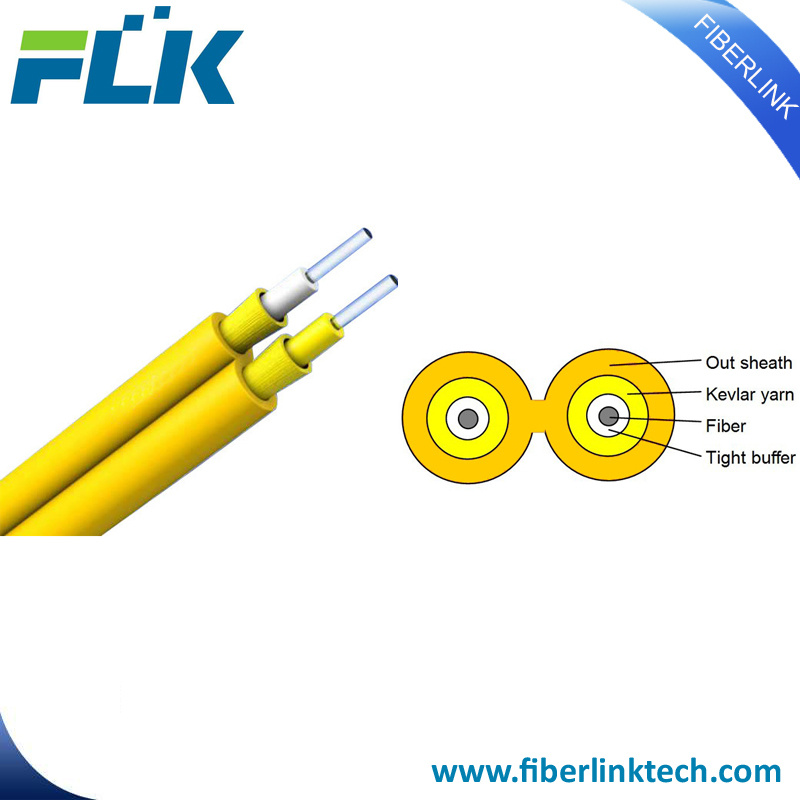

Technical Parameters:Out sheath
Diameter | Tight buffer
Diameter | Weight | Minimum allowable Tensile Strength(N) | minimum allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
temperature |
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (ºC) |
| 1.6×3.4 | 0.6 | 4.80 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 1.8×3.8 | 0.6 | 5.00 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 2.0×4.2 | 0.9 | 7.00 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 2.4×5.0 | 0.9 | 9.00 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 2.8×5.8 | 0.9 | 11.50 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
| 3.0×6.2 | 0.9 | 12.50 | 150 | 80 | 500 | 100 | 20D | 10D | -20+60 |
International standards:
IEC 61754; TIA/EIA 604-5 Related products

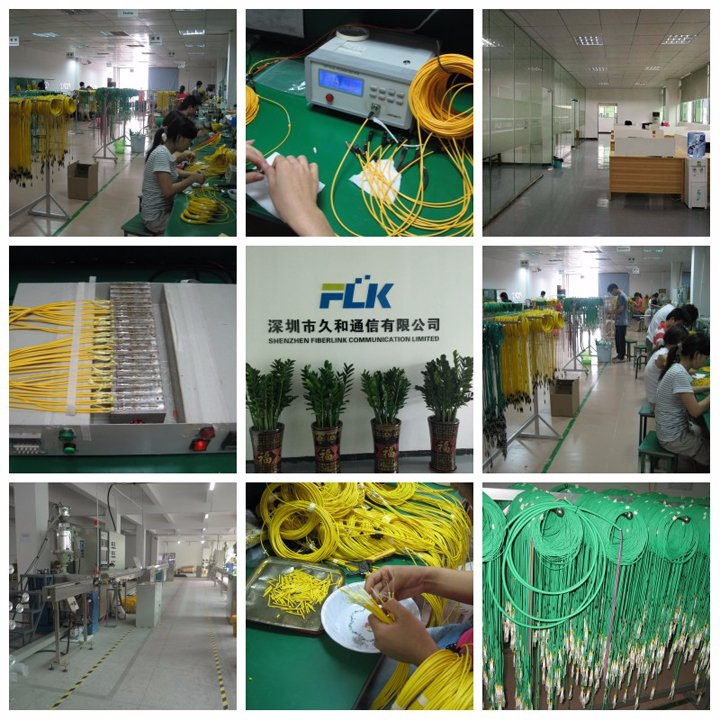

Our fiber patch cord production line:

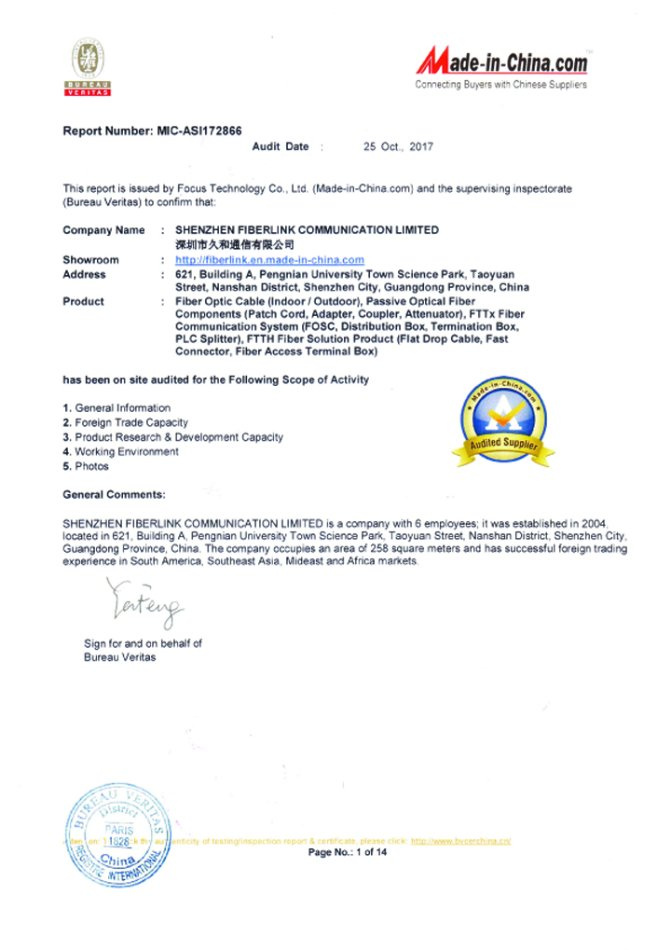

Certifications
Shipping:
Service:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.
FAQ
Q1:How can you guarantee the delivery time?
A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
2. We can regulate the penalty clause in the contract for the late delay.
Q2:What's your best price?
A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
Q3:What's your MOQ?
A:Low MOQ, 1pc for sample checking is available
Q4:Can I print our own logo on the product?
A:Yes, Please send your logo to us.
Q5:Can you provide OEM/ODM service?
A:Yes, we can. Please tell us the details of your requirements
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7:Why choose us to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
How to Contact with me
Hope this would be a good start for our cooperation!
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.
Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.
OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
