DONGGUAN TW-SCIE CO., LTD. >> FTTH Drop Fiber Optic Cable of G657A 1/2core with LSZH Material

FTTH Drop Fiber Optic Cable of G657A 1/2core with LSZH Material

FTTH Drop Fiber Optic Cable of G657A 1/2core with LSZH Material
Price: Negotiable/Meter
Min Order: 200/Meter
Pay Type: L/C,T/T
Prod Model: FTTH drop cable
Place Of Orign: Guangdong China
Package: 2km/Wooden Drum
Steel: 1.2mm or 1.0mm
Fiber: G652D,G657A1
Fiber Account: 1-2
Shape Or Structure: Can Be Produced as Per Buyer's Request
Model Number: FTTH
Jacket: PVC or LSZH
Application: Medicine
Connection Structure: SC
Certification: CCC
Type: Glass Fiber
Sheath Material: PE

Product Description

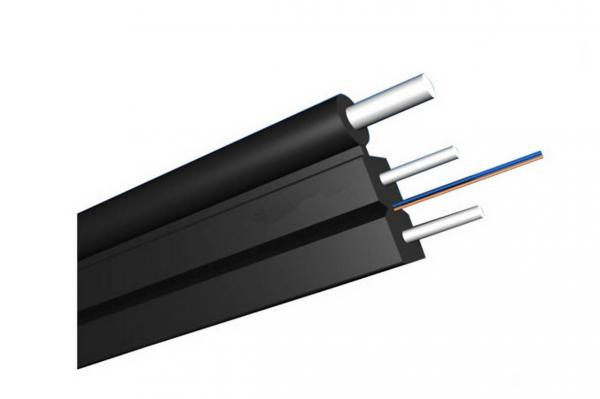

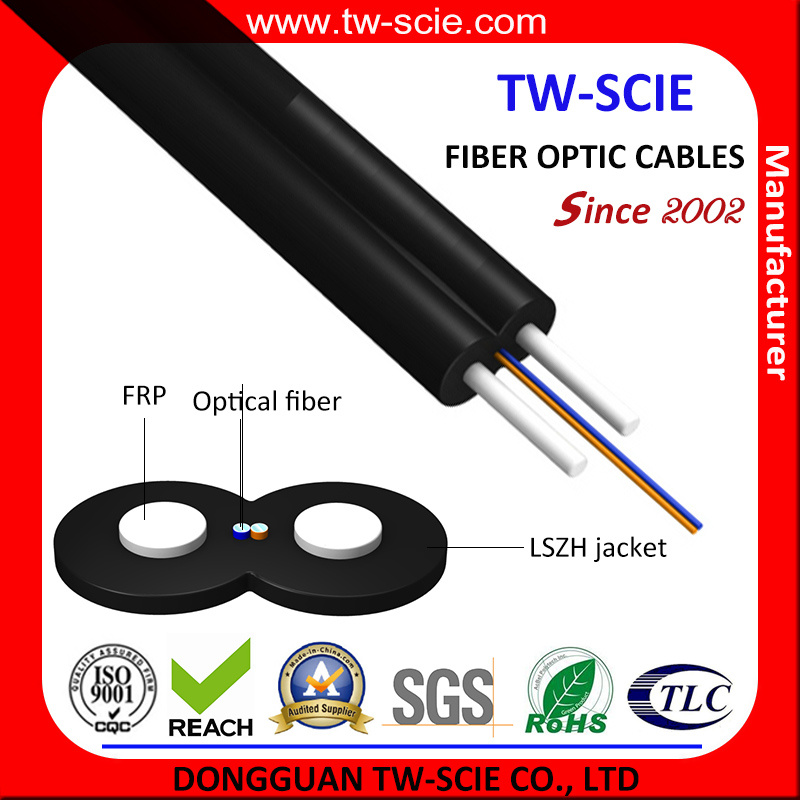

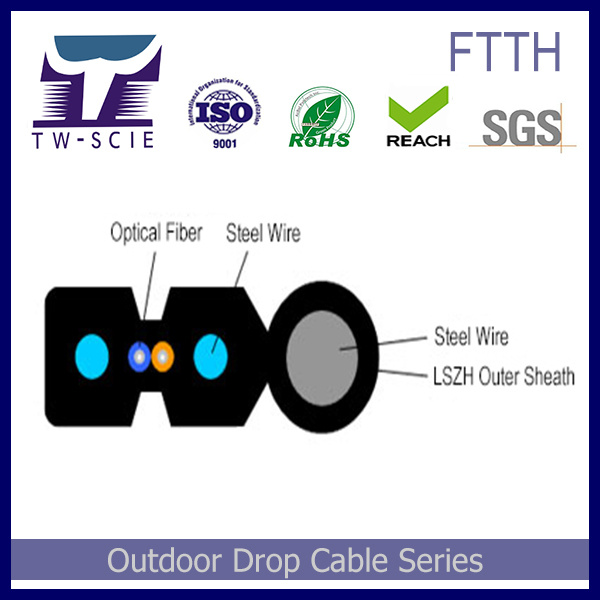

FTTH Drop Fiber Optic Cable of G657A 1/2Core with LSZH Material

Cable General Description
Should be used Used in the access network or CPN introduced into the room from the outside cable
Integrated wiring in buildings used for the introduction of cable, especially when the introduction of indoor or outdoor overhead wiring



Features
1. Has good mechanical and environmental performance;
2. Flame (or retardant) performance to meet the standards;
3. Sheath of the mechanical and physical properties to meet the relevant standards;
4. Easy installation, flexible, convenient connecting and supporting high-capacity data transmission.




Customization
--Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber;
--Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material;
--Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color;
--Cable Size: Nominal fiber size, but also other agreed size;
--Delivery length: 1km or 2km, but also other agreed length;
--Other requirements: Other special requirements agreed.

*The cable model specifications, size and strength can made the suitalbe adjust according to the customer's requirements.


Instructions:
1. "Xn" means the table that fiber models. Can use G. 652, G. 657, G. 655 single-mode optical fiber or A1a, A1b multimode fiber;
Delivery length: 1 km, 2km or other user-specified length;
3. According to the YD/T1258.5-2005 jacket color, or it can also be a user of other colors as customers requriements;
4. Jacket materials can also be use other materials as requriements;
Type

Cores

Cable diameter(mm)

Short stretch(N)

Long-term tensile(N)

Short squash(N/100cm)

Long-term squash(N/100cm)

Static

Dynamic

Weight (Kg/Km)

FTTH--1Xn

1

2.0*3.0

30

60

300

1000

15D

30D

8

FTTH--2Xn

2

2.0*3.4

30

60

300

1000

15D

30D

8.5

FTTH--4Xn

4

2.0*3.8

30

60

300

1000

15D

30D

10



TAG:
Single Mode Fiber Optic Cable, 1 Core Outdoor Sm/Mm ,High Quality Drop Cable FTTH
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
