| Prod Model: |
FTTH cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Drop Cable |
| Messenger Material: |
Steel Wire |
| Other Messenger Material: |
FRP, Kfrp |
| Jacket Material: |
Lszh |
| Jacket Color: |
Black, White |
| Installation Style: |
Indoor & Outdoor Aerial Drop Cable |
| Optical Fiber Type: |
G.657A |
| Fiber Color: |
Blue, Orange, Green, Brown |
| Outer Diameter Of Cable: |
2.0mm*5.0mm |
| Diameter Of Messenger Wire: |
1.0mm |
| Application: |
Drop Cable |
| Type: |
Single-mode Fiber |
| Certification: |
Drop Cable |
| Connection Structure: |
Drop Cable |
Product Description

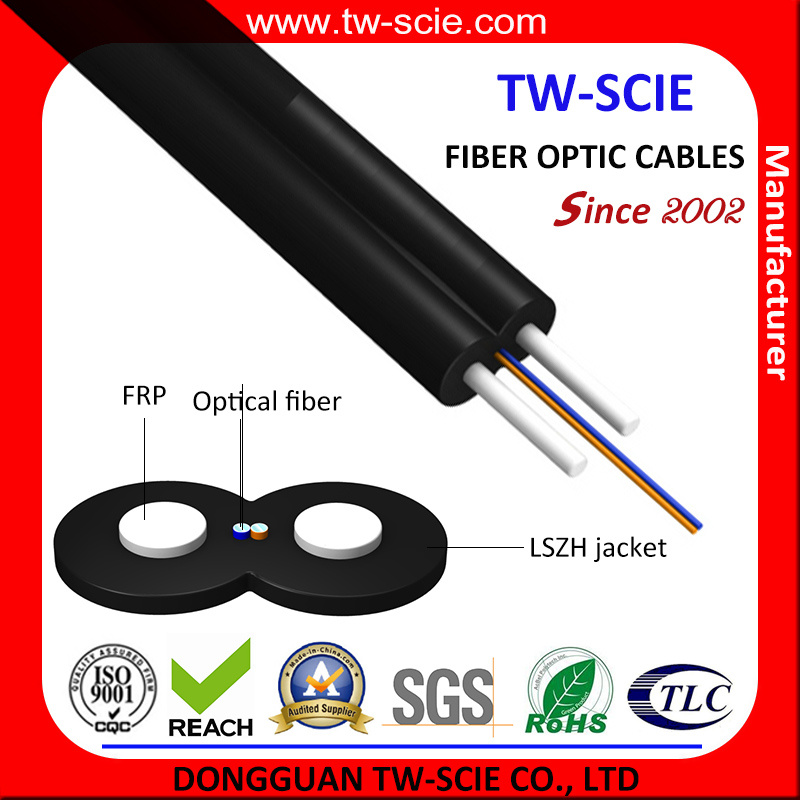

FTTH Fiber Optic Cable Flat Indoor 2 Core LSZH/PVC Aerial Use
Flat 2 Core Lszh/PVC Aerial FTTH Fiber Optic Cable

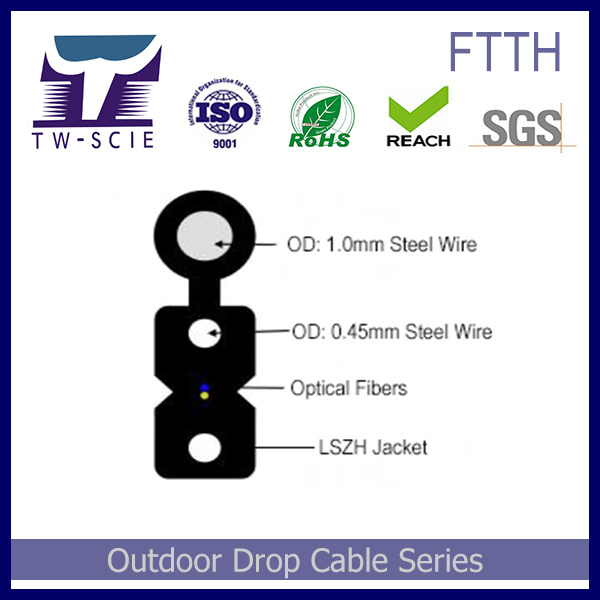

Product Construction:
Fiber:
1-12 fibers 250um colored coating fiber
Strength Member:
Steel wire or FRP (Fiber glass reinforced plastic)
Messenger Member:
1.0/1.2mm steel wire or 7*0.33mm wire
Outer Jacket:
UV and flame resistant LSZH
Features:
- Good UV and flame resistant.
- Bow type flat structure.
- Compact, soft, flexible, easy to install.
- Fig8 self-supporting design.
- Designed for use with cheap attachment hardware.
Applications:
- Used in access network or as access cable from outdoor to indoor in customer premises .
- Used as access building cable in premises distribution system,
- Especially used in indoor or outdoor aerial access cabling.
Options: Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
Structure and Technical Specification
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 1-4 | 5.2*2.0 | 18 | 600 | 300 | 2200 | 1000 |
| 6-12 | 3.0*9.0 | 27 | 1200 | 600 | 2200 | 1000 |
Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
We produce and test cable comply with following standard:
Mechanical Performance |
Max Tension Performance | IEC 60794-1-2-E |
Max. Operation Tension | IEC 60794-1-2-E1 |
Crush Test | IEC 6079 -1-2-E3 |
Impact Test | IEC 60794-1-2-E4 |
Repeated Bending | IEC 60794-1-2-E6 |
Torsion Test | IEC 60794-1-2-E7 |
Cable bend | IEC 60794-1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance |
Temperature Cycling | IEC 60794-1-2-F1 |
Water Penetration | IEC 60794-1-2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
Drop Cable Customization
Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber
Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material
Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color
Cable Size: Nominal fiber size, but also other agreed size
Delivery length: 1km or 2km, but also other agreed length
Other requirements: Other special requirements agreed
Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Drop cable, optical cable, drop cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
| ITEMS | UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
