| Prod Model: |
GJXFH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
According to Requirement |
| Fiber Cores: |
According to Requirement |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Singlemode Fiber or Multimode Fiber |
| Connection Structure: |
Fiber Optic |
| Material Shape: |
Glass Fiber |
| Brand: |
HNK or OEM |
| Sheath Material: |
LSZH, PVC, PE |
Product Description

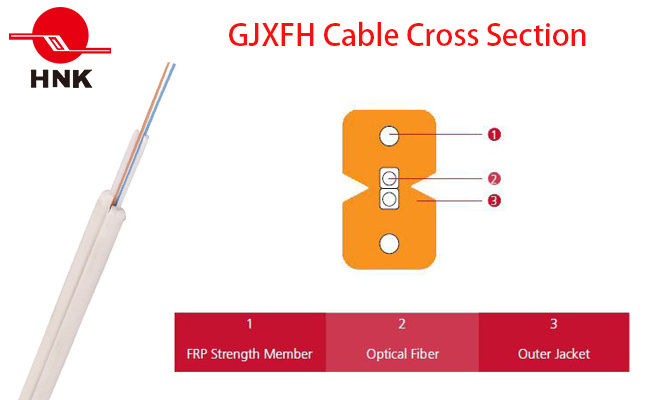

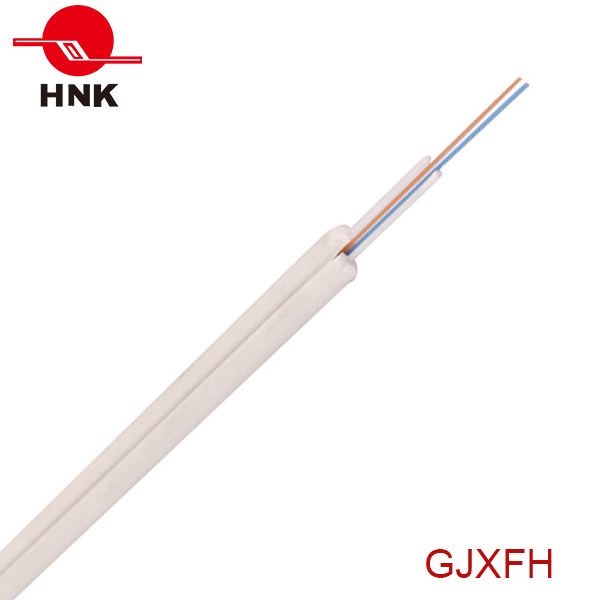

Two core flat drop cable for fiber To The Home (FTTH) application, the cable is constructed with two single
mode fibers protected by dielectric strength member made of fiber reinforced plastic (FRP) strength member
and LSZH outer jacket.
It is very light in construction and easy to install, generally used for connecting Main distribution frame to
consolidation point in home, apartment or offices. Industry standard connectors can be used for direct
termination because of standard 250µm fiber size.
Complied With Or Exceeds Standard
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)Mechanical & Environmental Characteristics| DESCRIPTION | CABLE SPECIFICATION |
| G652D | G657A |
| Cladding non-circularity | <1.0% | ≤0.7% |
| Mode eld diameter @ 1310nm | 8.7~9.5µm | 8.4~9.2µm |
| Cladding diameter | 125.0+1.0µm | 125.0+0.7µm |
| Core concentricity error | <0.6µm | <0.5µm |
| Primary coating diameter | 245±7µm | 245±5µm |
| Coating-cladding concentricity error | ≤12.0up |
| fiber bend radius | >4m |
| Proof level | >1.5% strain |
| Fiber type | G652D OR G657A |
| Tensile load | 80N |
| Temperature | -20~60°C |
Transmission Characteristics| CHARACTERISTICE | CONDITION | VALUE |
| Attenuation | @1310nm | <0.40db/km |
| @1550nnm | <0.30db/km |
| Macro bending loss | Ø 30 mm | G652D | G657A |
| 10 turns at 1550nm | <0.50db | <0.25db |
| Chromatic dispersion | @1310nm | <3.5ps/nm.km |
| @1550nnm | <18ps/nm.km |
| Cut-off wavelength | | <1260nm |
| Zero dispersion Slope | | ≤0.092ps/(nm².km) |
| Zero dispersion wavelength | | 1312~1324nm |
ANSI/TIA/EIA-598-B STANDARD Fiber COLOR CODE Fiber Number Fiber Color Fiber Number Fiber Color
Fiber 1 Blue Fiber 7 Red
Fiber 2 Orange Fiber 8 Black
Fiber 3 Green Fiber 9 Yellow
Fiber 4 Brown Fiber 10 Violet
Fiber 5 Slate Fiber 11 Rose
Fiber 6 White Fiber 12 Aqua
Note: Fiber Tube color will be followed with same order.
Ordering Information
Part Number: OC-XX-ABCDCLOrdering Guide| XX | A | B | C | CL |
| Cable Type | Jacket | Fiber Count | Fiber Type(FXX) | Jacket Color(CL) |
| GJXFH | 1=PVC
2=LSZH
3=PE | No. Of Fiber
01F,02F | OM1=62.5/125 OM1
OM2=50/125 OM2
OM3=50/125 OM3
OM4=50/125 OM4
G652D=9/125 G652D
G657A=9/125 G657A | As noted in
Color code chart |
Ordering Sample| Part Number | Description |
| OC-GJXFH-22G652DWH | 2 cores Singlemode G652D GJXFH Fiber Optic Cable,
LSZH jacket, White color. |
