| Prod Model: |
TK-FC-SCA-E001 |
| Insertion Loss: |
≤0.5dB(Typical 0.2dB) |
| Return Loss: |
>55dB |
| Allowed Tensile Strength: |
>40n |
| Certification: |
Ce, RoHS, ISO9001 |
| Operating Temperature: |
-40~+80c |
| Transport Package Way: |
Carton |
| HS Code: |
85479010 |
| Type: |
Field Installable |
| Gender: |
Male |
| Applications: |
Communication;FTTH |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Application: |
FTTH |
Product Description

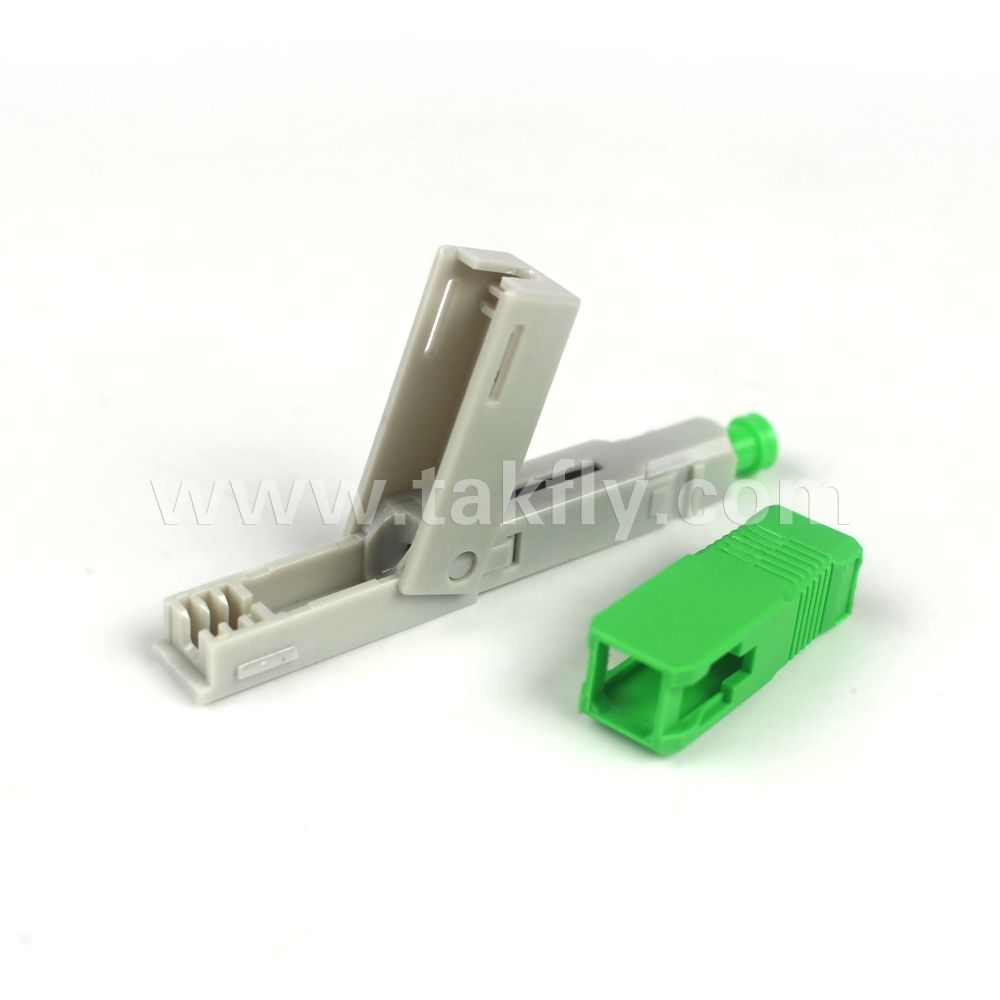

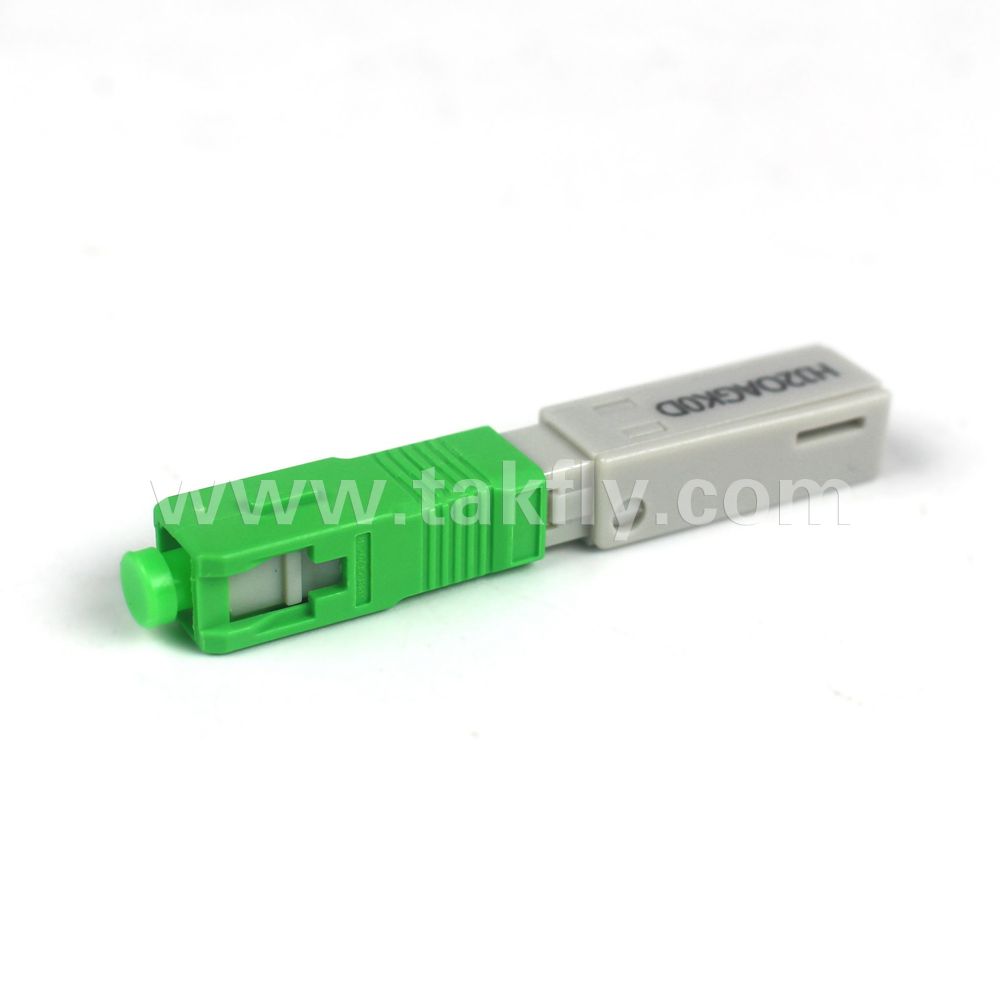

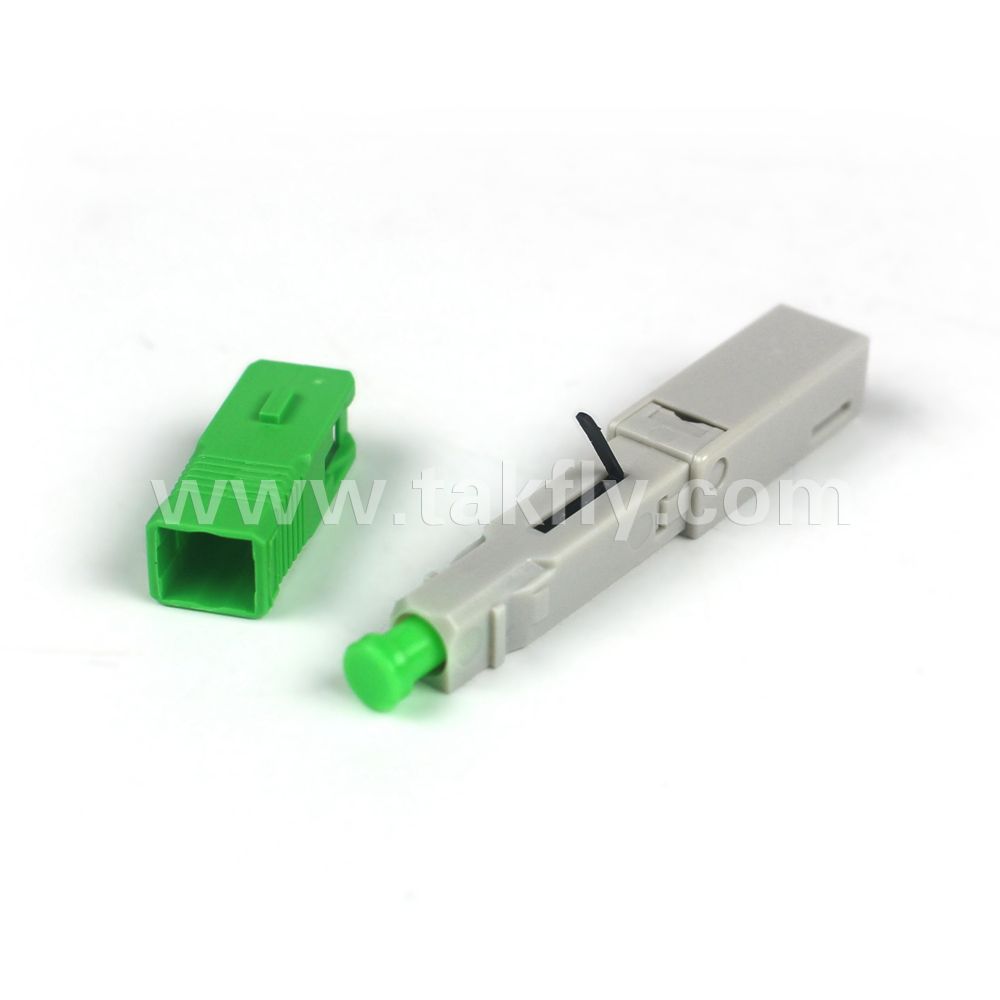

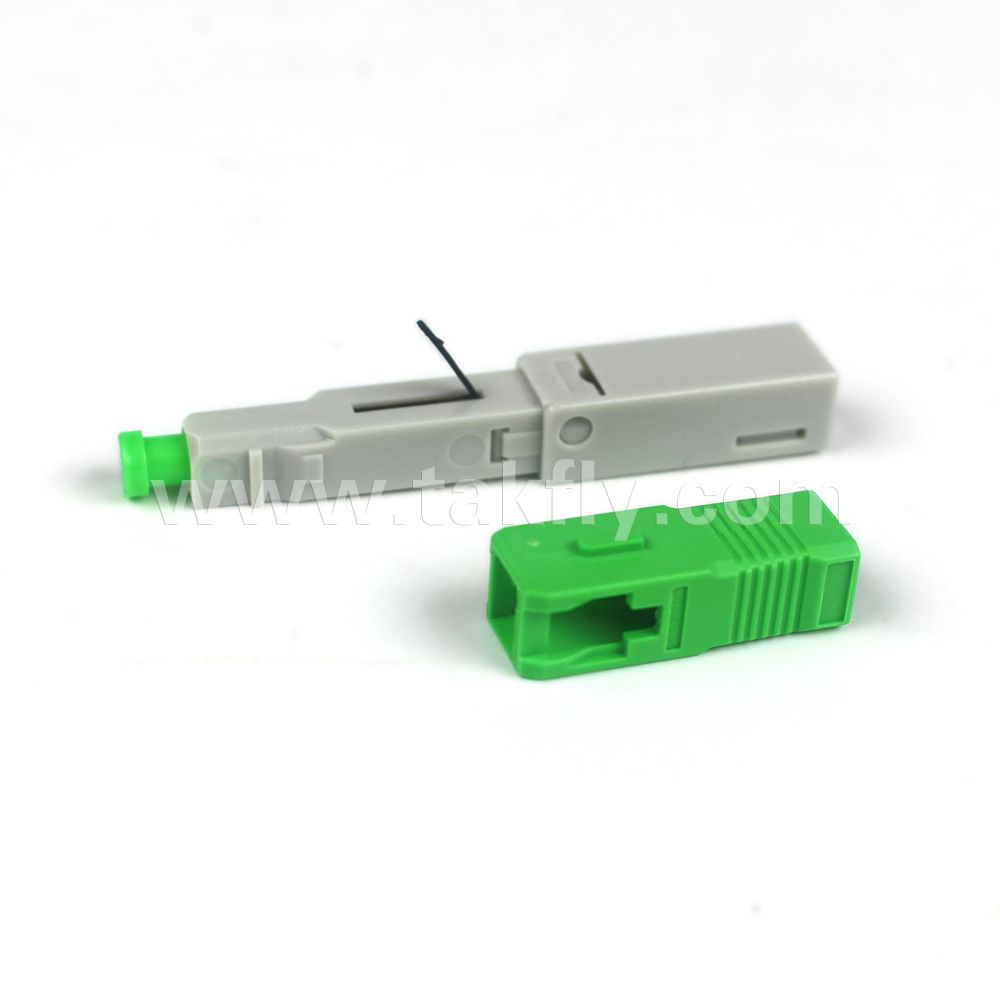

FTTH SC/APC Fast Connector Field Installable Fast Connector
SC/APC Field Installable Fast Connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm and the introduction of cable buffered type. With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.
Application1. Connections at the desk for LAN environments
2. Optical access network
3. Fiber to the Subscriber (FTTX) applications
4. Patch panels
5. Direct equipment termination
Feature1. Factory-installed fiber stub
2. No epoxy or polishing required
3. Quick and easy fiber termination in the field
4. Eliminates cable excess length and pigtail splice storage
5. Cost effective
Parameter: | Product Name | SC/APC Field Installable Fast Connector |
| Item No.: | TK-FC-SCA-E001 |
| Cable Diameter: | 0.9mm,2.0mm,3.0mm, 2.0*3.0mm |
| Fiber Diameter | 125um |
| Fiber Mode: | Single-mode or Multimode |
| Insertion Loss: | ≤0.5dB(Typical 0.2dB) |
| Return Loss: | ≥55dB |
| Tensile Stength: | >40N |
| Thermal Shock | △IL<0.3dB; △RL<0.5dB |
| Operating Temperature | -40°C~+85 °C |
Component| Back cover open tool | 1PC |
| Housing Body | 1PC |
| Field installable Mini-MT ferrule | 1PC |
| Small pieces | 1PC |
| Crimp eyelet | 1PC |
| Protective shell | 1PC |
Relevant Solutions1. Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
2. With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
3. Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

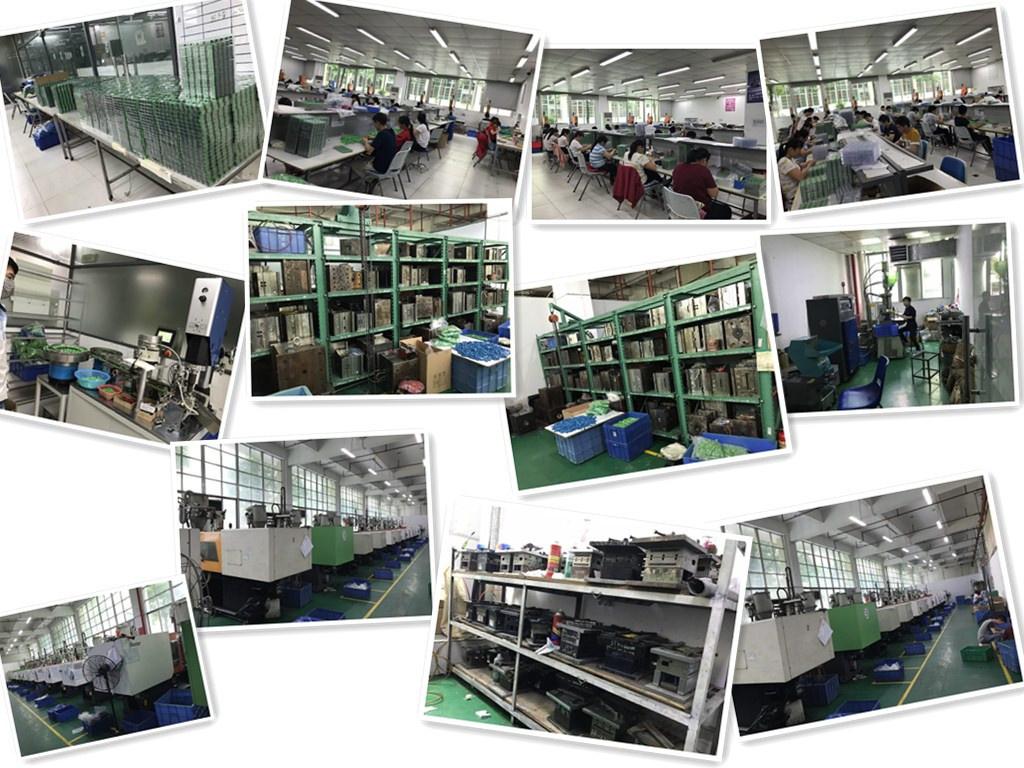

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
