| Prod Model: |
FTTH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Drop Cable |
| Messenger Material: |
Steel Wire |
| Other Messenger Material: |
FRP, Kfrp |
| Jacket Material: |
LSZH |
| Jacket Color: |
Black, White |
| Installation: |
Indoor & Outdoor Aerial Drop Cable |
| Optical Fiber Type: |
G657A |
| Fiber Color: |
Blue, Orange, Green, Brown |
| Od Of Cable: |
2.0mm*5.0mm |
| Diameter Of Messenger Wire: |
1.0mm |
| Application: |
Drop Cable |
| Type: |
Single-mode Fiber |
| Certification: |
Drop Cable |
| Connection Structure: |
Drop Cable |
| Sheath Material: |
LSZH |
Product Description
FTTH Fiber Optical Cable with LSZH Sheath MOQ 1KM Factory Produced
Description

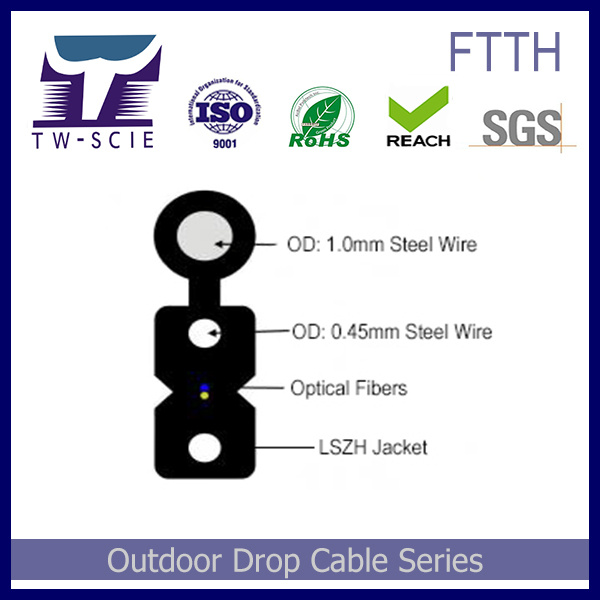

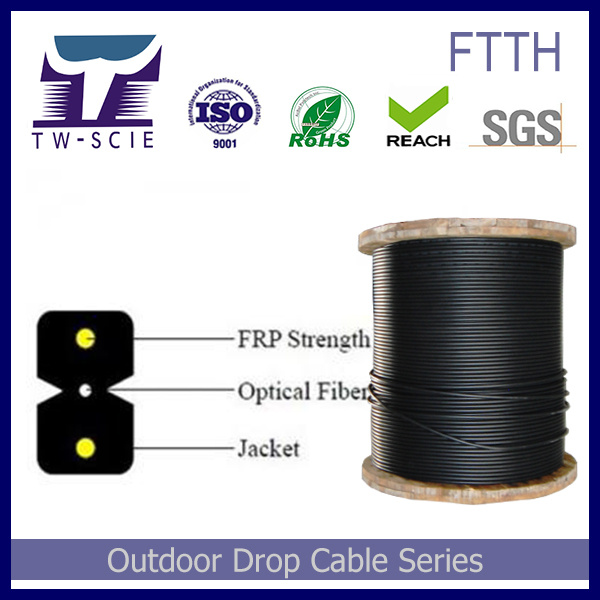

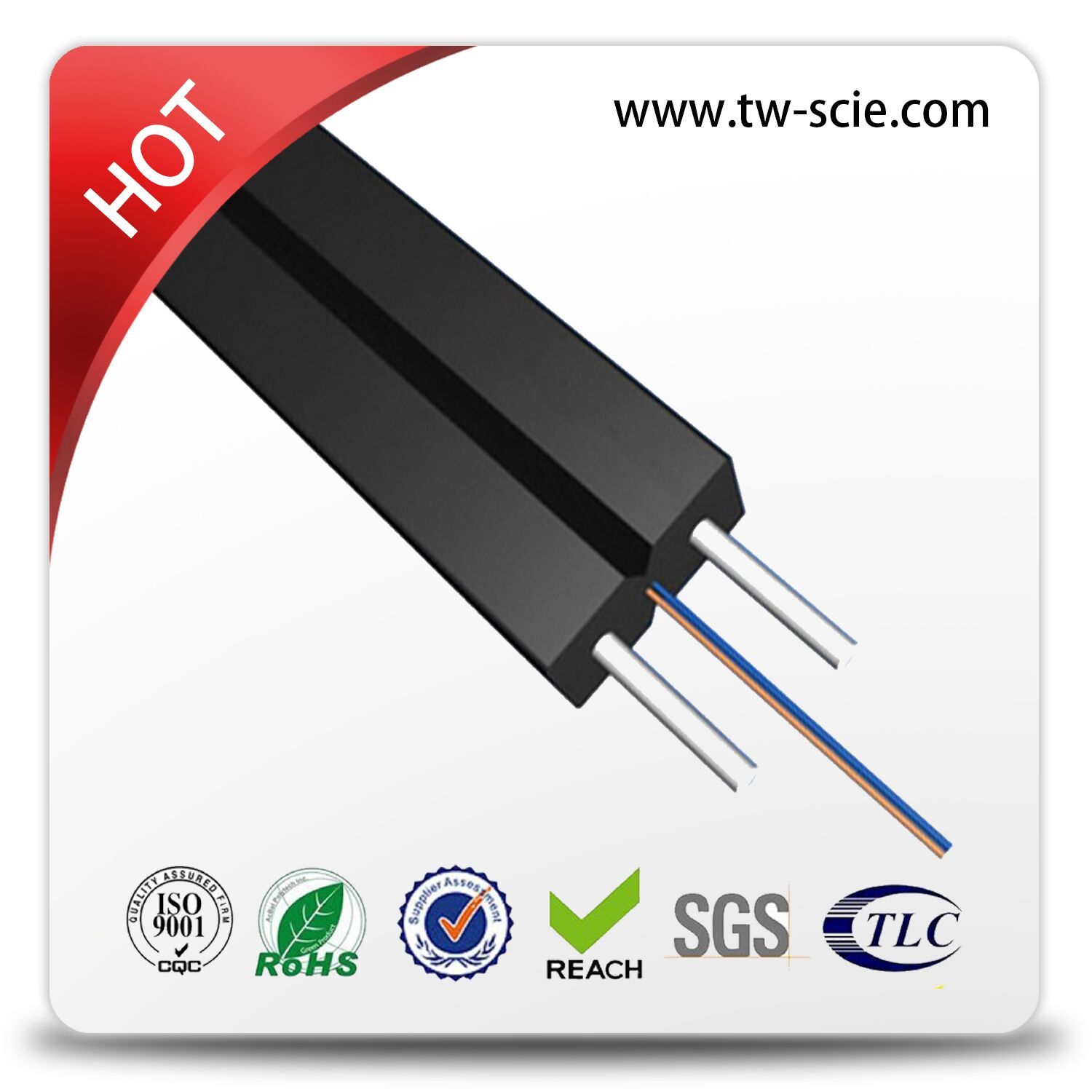

FTTH indoor cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced steel wires(or FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
Characteristics
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
Two parallel steel wire/FRP strength members ensure good performance of crush resistance to
protect the fiber.
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.
Product perameter
| Model Number | GJXH,GJXFH |
| Type | Coaxial |
| Number of Conductors | 1--12 |
| Certification | UL ROHS ISO |
| OEM | Welcome to OEM for FTTH Indoor Cable |
| Item | FTTH Indoor Cable |
| Jacket Material | LSZH |
| Laying method | FTTH/FTTX/FTTA |
| Standards | YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP |
| Application | indoor wiring, building introduction |
| Operating Temperature | -40 to 70 degree |
Technical Parameters
Fiber count | | Cable | Tensile Strength | Crush Resistance | Bending Radius |
Cable Diameter | weight | Long/short term | Long/short term | Static/Dynamic |
mm | kg/km | N | N/100mm | mm |
1 | (2.0±0.2)*(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
2 | (2.0±0.2)*(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
1 | (2.0±0.2)*(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
4 | (2.0±0.2)*(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2.What is your fiber brand ?
Corning, YOFC, FiberHome, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
6.What is your delivery time?
Usually within 2-3 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
| ITEMS | UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
