| Prod Model: |
Fiber Optic Fast Connector |
| Normal Life: |
30 Years |
| Connection Structure: |
Sc Fast Connector |
| Working Temperature: |
-40~70c |
| Allowed Lateral Pressure: |
100(N/100mm)<1000(N/100mm) |
| Mode: |
Single Mode or Multimode |
| Core: |
Single Core |
| Return Loss: |
More Than 45dB |
| Insertion Loss: |
Less Than 0.5dB |
| Business Type: |
Manufacturer |
| Payment Terms: |
Tt/Paypal/LC |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Shape: |
Long Type |
| Application: |
Communication |
| Brand: |
Takfly/OEM/Df |
Product Description

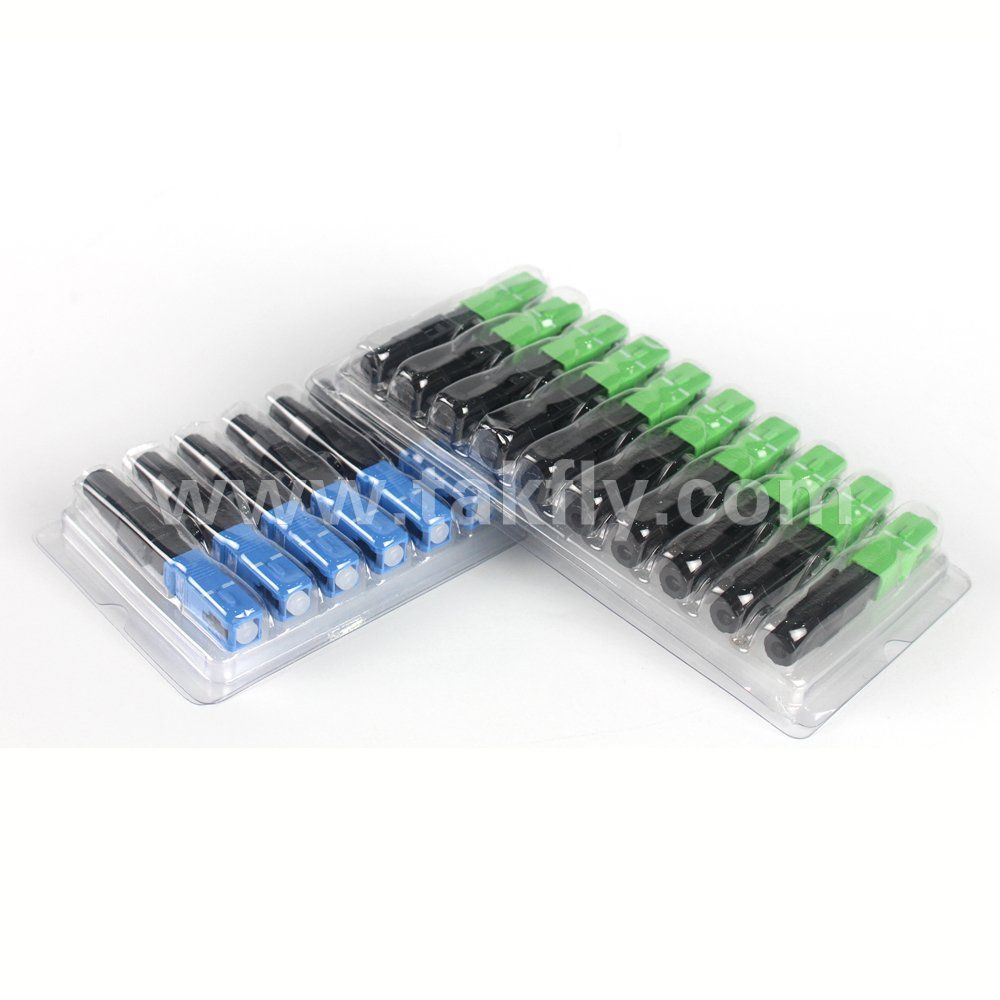

FTTH Field Connector 0.9/2.0/3.0mm Fiber Optic Fast Connector
Quick DetailsBrand Name: TAKFLY OR OEM
Model Number: DF-FSC-PC-C-1
Fiber type: Single mode 9/125
Inserion Loss: <0.5db
Return Loss: >55db
Features1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules
Applications1.Access Network
2.Telecom/CATV Systems
3.FTTx/FTTH
Specification| Series | SC/APC SC/UPC |
| Applicable Cable | P3 X 2 Rubber-insulated wire | Φ3.0 Fiber |
| Fiber Diameter | 125μm | 125μm |
| Coating Diameter | 250μm | 250μm |
| Fiber Mode | SM OR MM | SM OR MM |
| Installation Time | ≤40S | ≤40S |
| Construction Site Installation Rate | ≥99% | ≥99% |
| Insertion Loss | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) |
| Return Loss | 45dB(average 50dB) | 45dB(average 50dB) |
| Tensile Strength | >30 | >20 |
| Working Temperature |
-40°C~+70 °C
| -40°C~+70 °C
|
Reusability
| ≥50 | ≥50 |
Normal Life
| 30 years | 30 years |
Why choose Takfly ?Service1.Customer's logo: Acceptable2.General inspection on fixing before packing3.Third party inspection: Acceptable Quality ControlAll products must go through five checks before manufacturing process 1.Material incoming inspection before production2.Full check after every individual process finished3.Full check after production half-done4.Full check before packing5.Spots check after production packed before shipping Advantage1.15 years experience in manufacturing fiber optic products..2.Availability of R & D with more than 10 engineers.3.Available of design and making mold with special molding house.4.High quality, attractive price and fast delivery(2-7days)5.OEM, ODM customer designs are also welcomed6.More than 200 workers7.Excellent survice Delivery:1.Packing: Plastic bag& carton, Neutral packing or as your required.2.Sample time: 1-3 days after confirm3.Order lead time: 2-7working days depend on quantity and products.4.Shipping port: Shenzhen China or HK5.Shipping term: EXW or FOB Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
