FTTH Gjyxch/Gjyfch Figure-8 Single/Multi Mode Optical Fiber Cable for CATV

Name: FTTH Gjyxch/Gjyfch Figure-8 Single/Multi Mode Optical Fiber Cable for CATV
Brand: all-electronics-online.com
SKU: 801358385
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	US $ 0.5-20/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH-3
Tensile Strength:	Over 1000n
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	PE

Product Description

FTTH GJYXCH/GJYFCH figure-8 single/multi mode optical fiber cable for CATV

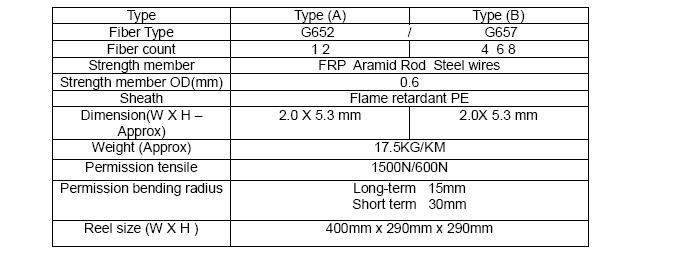

Cable Structure

Technical characteristics

-Simple structure ,light weight and high practicability;
-Novel flute design easily strip and splice, simplify the installation and maintenance;
-Two parallel FRP Aramid rod or steel wire strength members ensure good performance of
crush and tension resistance to protect the fiber;
-If G.657 fiber be put in the cable, ensure the very good bending
performance.
-Low smoke, zero halogen and flame retardant sheath.
- Have a messenger ensure cable tensile property.

Optical fiber cable technical parameters:

			µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
	@1300nm		≤1.0	≤1.0
	@1310nm	≤0.36
	@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
Bandwidth (Class A) (MHz·km)	@1300nm		≥1200	≥600
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)		≤1260

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

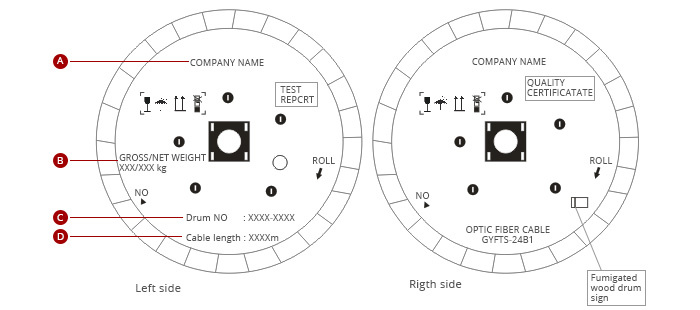

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX

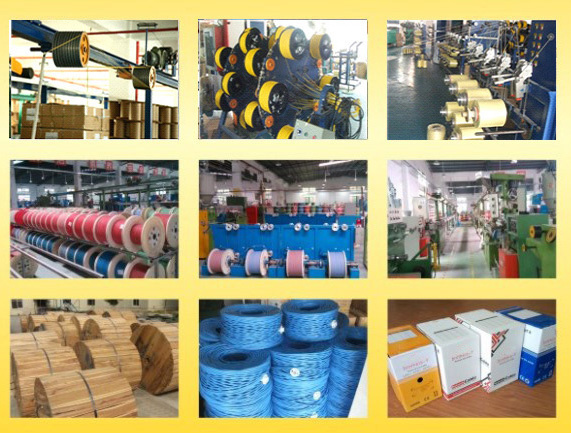

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.
