Takfly Communications Co., Ltd. >> FTTH Optical Fiber St Fast Connector

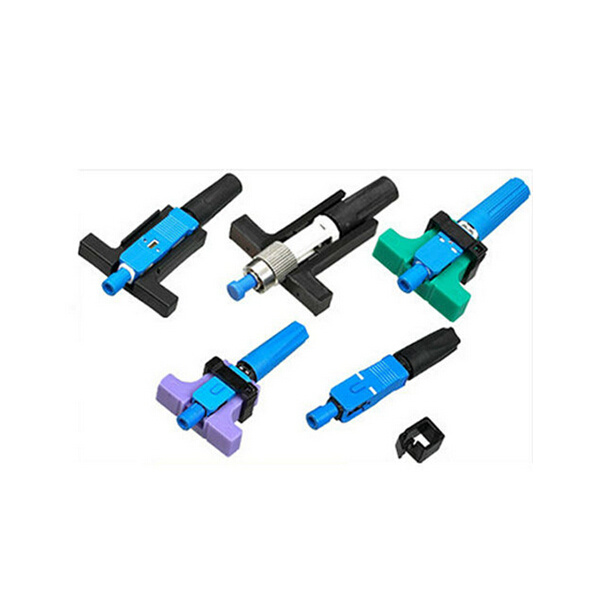

FTTH Optical Fiber St Fast Connector

FTTH Optical Fiber St Fast Connector
Price: US $ 0.75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: TK-Q7006
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Sc,FC Quick Connector
Warranty: 5 Years
Delivery Time: 3-5days
Samples: Available
Transmission Medium: Multimode
Structure: ST
Number Of Cores: Single-Core
Ferrule Endface: PC(',UPC)

Product Description

FTTH optical fiber quick connector


Applications:
Restoration
Premise environments
Fiber-to-the-Subscriber (FTTx) applications


Description:
The FTTH mechanical connector is a mechanical splice that provides an inexpensive, quick alternative to mating
Fibers. Using V groove technology, this splice maintains physical contact between the fibers., Applicable for FTTx
Optical fiber splicing and for repairing any damaged lines to realize firm and reliable splicing of fibers.
FTTH mechanical optical splice
1. Based on unique box-building crimping technology.
2. Precision metallic alloy components with coaxial self centering, excellent and durable optical property.
3. Axially firm fitting of optical fibers, reducing any performance degradation due to loss in the matching gel
4. Uninterrupted fitting and connecting technology, hence signals are free of impact from external force.
5. The naked fiber, tight buffer and cable, etc., can fully meet the environmental requirements from the terminals customer
6. Integrated protection of the casing to withstand harsh outdoor environment.
7. High success rate and easiness in installation with average splicing time of 500 sec;
ItemTechnical Parameters
Applicable for Φ0.25mm & Ø0.90mm Fiber Optic
Fiber Optic Diameter125μm(657A-657B)
Tight Buffer Diameter250μm & 900μm
Fiber ModeSingle Mode & Multimode
Installation Time20
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
