FTTX 2.0*5.0mm Fiber Optical Cable with Messenger

Name: FTTX 2.0*5.0mm Fiber Optical Cable with Messenger
Brand: all-electronics-online.com
SKU: 811094085
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 29.25-50/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYJXCH
Installation:	Aerial
Fiber Type:	G657A
Sheath:	LSZH
Strengthen Member:	Steel
Sheath Color:	Black
Application:	Telecommunication
Certification:	ISO9001
Type:	Indoor Cable
Connection Structure:	Patch Cable
Core:	1 Core or 2 Core
Sheath Material:	PVC or LSZH

Product Description

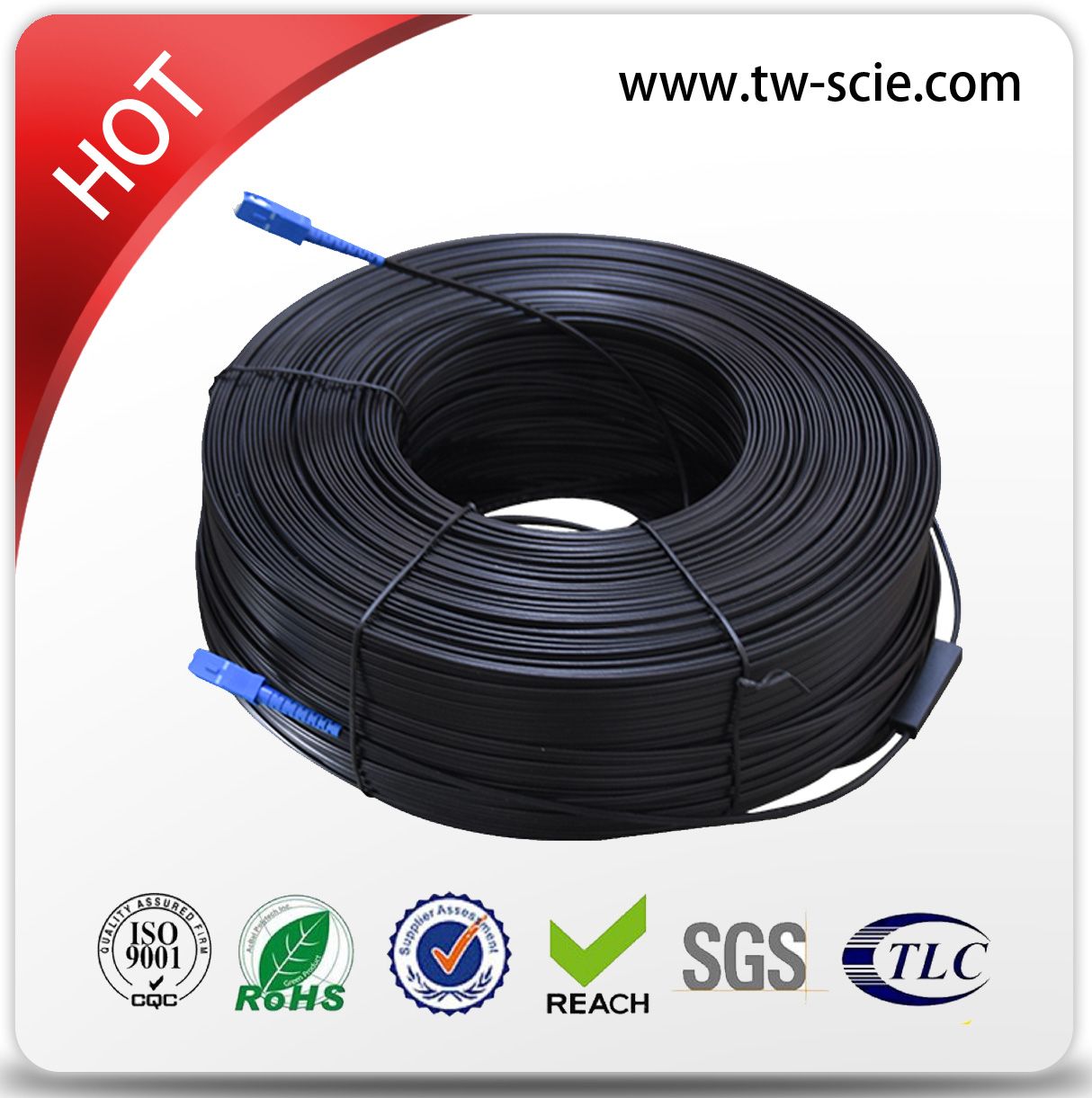

FTTX 2.0*5.0mm Fiber Optical Cable with Messenger

Product Description

SHG butterfly self-supporting drop FTTH Fiber optic Cable GJYXFCH, use selected G.652D or G.657A1,G.657A2 fibers, the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath, UV & Flame retardant.

Outdoor drop cable FTTH fiber optical cable Characteristics
1) Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2) Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
3) Simple structure, light weight and high practicability;
4) Novel flute design, easily strip and splice, simplify the installation and maintenance;
5) Low smoke, zero halogen and flame retardant sheath.

Certificates
ISO9001:2008, CE, RoHS, REACH

Package
1 or 2km/wooden reel, then in pallet.

Special packing acceptable , upon customers requirements!

Drop cable FTTH fiber optical cable Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0± 0.1)× (5.0± 0.1)	21	300/600	1000/2200	10/25
2	(2.0± 0.1)× (5.0± 0.1)	21	300/600	1000/2200	10/25
1	(2.0± 0.1)× (5.4± 0.1)	25	300/600	1000/2200	10/25
4	(2.0± 0.1)× (5.6± 0.1)	25	300/600	1000/2200	10/25

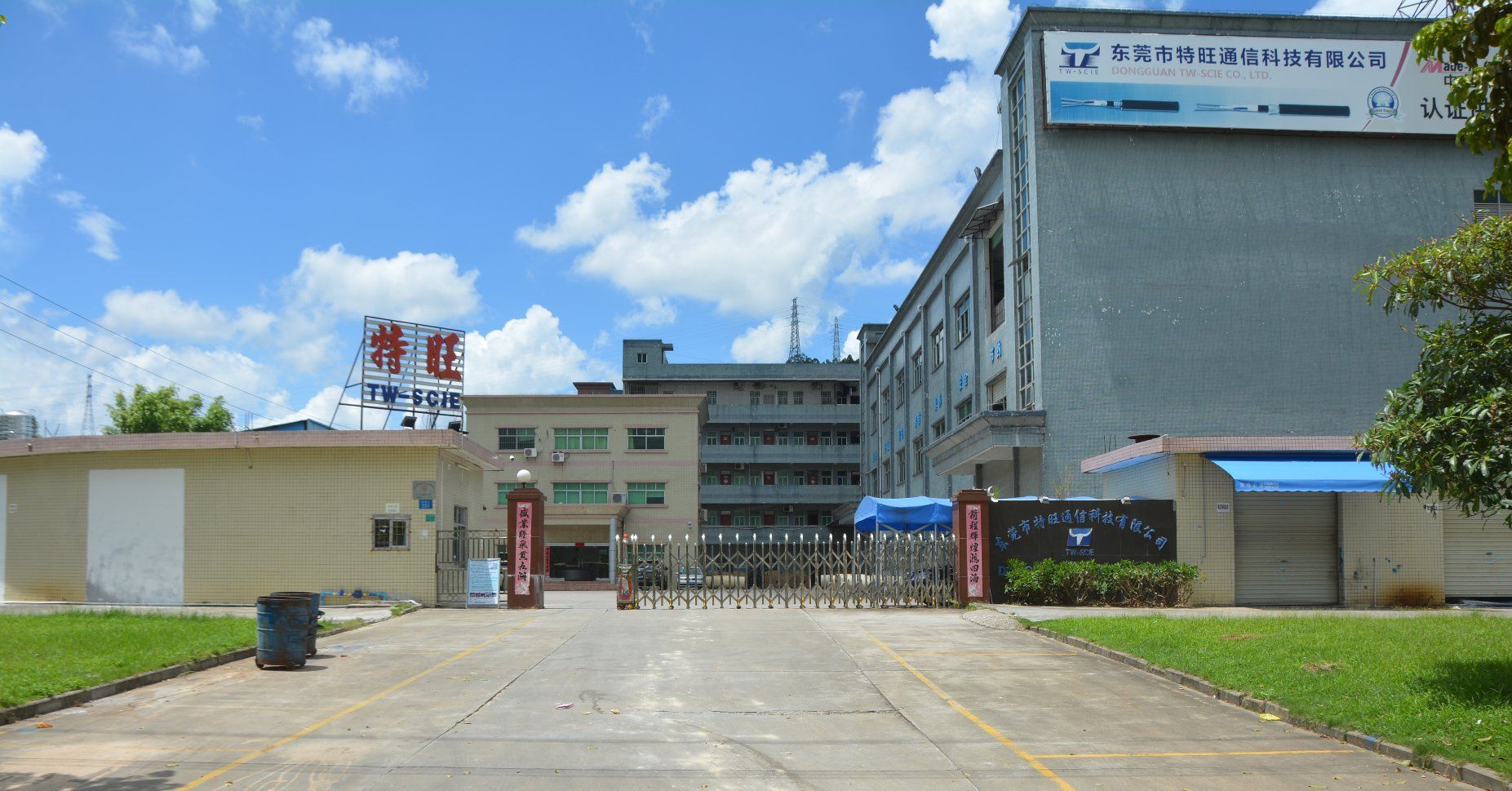

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
