FTTX Mini 2~24 Core Sm/mm Air Blowing Fibre Optic Cable

Name: FTTX Mini 2~24 Core Sm/mm Air Blowing Fibre Optic Cable
Brand: all-electronics-online.com
SKU: 820343615
Availability: InStock
Rating: 4.9 (107 reviews)

Price:	US $ 0.2-0.8/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MINI
Installation:	Air Blowing in Microduct
Fibre Count:	2~24 Core
Drum Length:	2km, 4km, 6km
Max. Crushing Resistance:	600n/100mm
Application:	Communication
Certification:	CCC
Sheath Material:	HDPE

Product Description

FTTX MINI 2~24 Core SM/MM Air Blowing Fibre Optic Cable

A. Product Description
Air Blown Mini Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.
It is usually applied in FTTX.

B. Features and Benefits
1. 2, 4, 6, 8, 12, 24 cores fiber optic cable
2. Small diameter
3. Accurate fiber length balance, stable mechanical and temperature performance
4. Particular technique control, prevent sheath from crinkling during installation
5. Frees up capital to expand network and client base
6. Network design flexibility
7. 5/3.5mm, 7/5.5mm microduct suitable
8. Easy to upgrade
9. Fiber: G.G652D, G.657A1, G.657A2 & multimode fiber

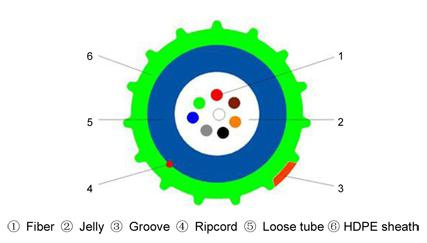

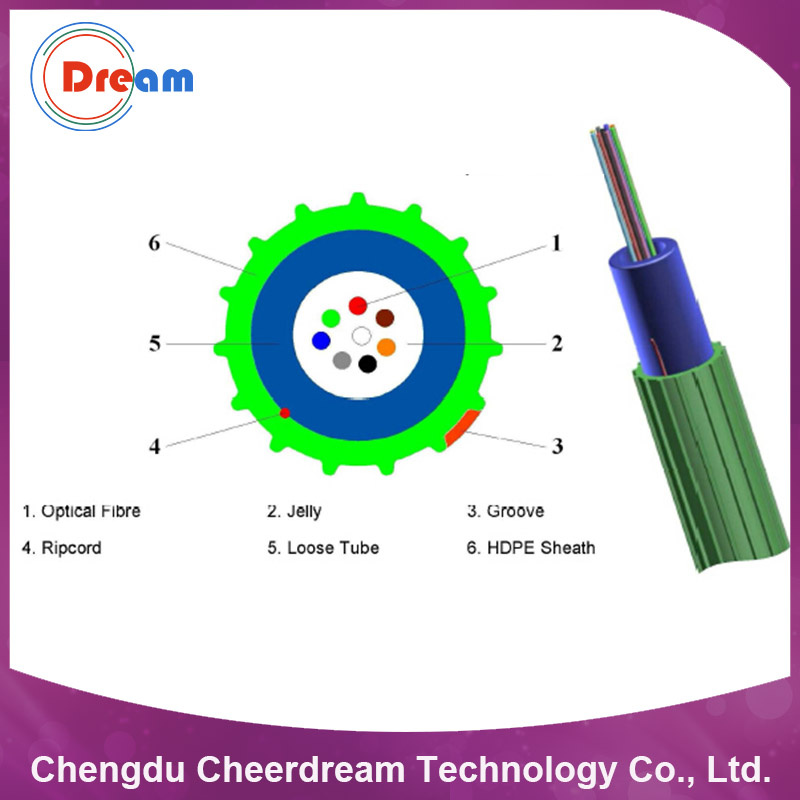

C. Cable Structure

D. Parameter

Fiber Count	2 Fibers	4 Fibers	6 Fibers	8 Fibers	12 Fibers	24 Fibers
Outer Diameter(mm)	2.0±0.1	2.0±0.1	2.3±0.1	2.3±0.1	2.3±0.1	2.8±0.1
Weight (kg/km)	4	4	5	5	5	7.5
Min Bend Radius(mm)	20 times of cable diameter
Temperature	Storage:-30ºC ~ +50ºC Operation:-20ºC ~ +50ºC Installation:-5ºC ~ +50ºC

E. Blowing Performance

Fiber Count	2~12 Fibers	24 Fibers
Blowing Machine	PLUMETTAZ PR-140; MiniJet-400
Microduct	5/3.5mm or 7/5.5 mm
Blowing Pressure	13bar
Blowing Distance In 5/3.5mm Duct	800	500
Blowing Distance In 7/5.5mm Duct	1500	1500

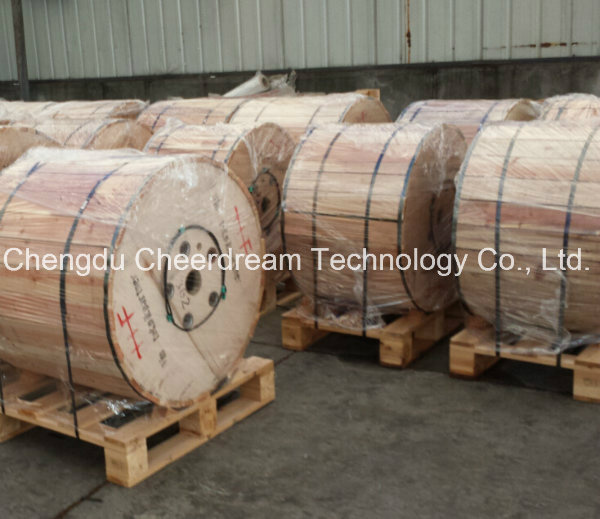

F. Packing:

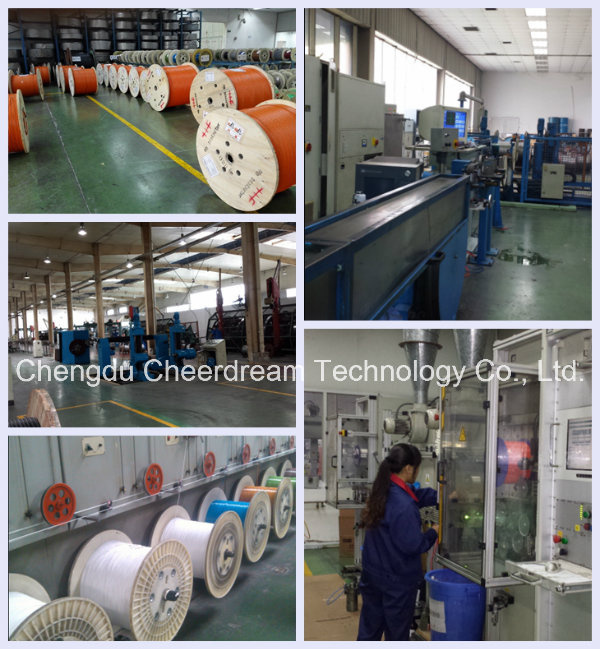

G. Factory:

H. FAQ:

1. Where is your company?

Our company lacated in Chengdu City, Sichuan Province. Welcome to visit our company.

2. Is the air blown fiber optic cable sample available?

Yes, we can provide free samples of the fiber optic cable for you to check the quanlity.

3. Can you provide OEM service?

Yes, we can provide OEM service.

I. Our Services:

1. Your inquiry related to our products or prices will be replied in 6 hours

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. Best after-service

4. Supply full accessories related to our main products

Chengdu Cheerdream Technology Co., Ltd. Was established in 2008, specialized in fiber optic area. Our company has established cooperation relationship with more than 20 countries for years.

We are specialized in air blown project for FTTH, including air blown fiber optic cable, microducts and accessories. And we supply plastic fiber optic, EL wire and glass fiber optic for years.

Our company has provided full types of fiber optic products and accessories for our clients from more than 20 countries, such as Thailand, Indonesia, U. S. A., Saudi Arabia, Zambia, Colombia, Philippine, Bulgaria, and so on.

Cheerdream Company has passed ISO9001 Quality Management System Certification. From the raw materials selection to manufacturing, from industrial design to brand management, we always focus on every detail. Our principles are "Quality-cored", "Customer-obligated". We have full desire for the future and unremitting efforts, willing to work with you to create brilliant.
