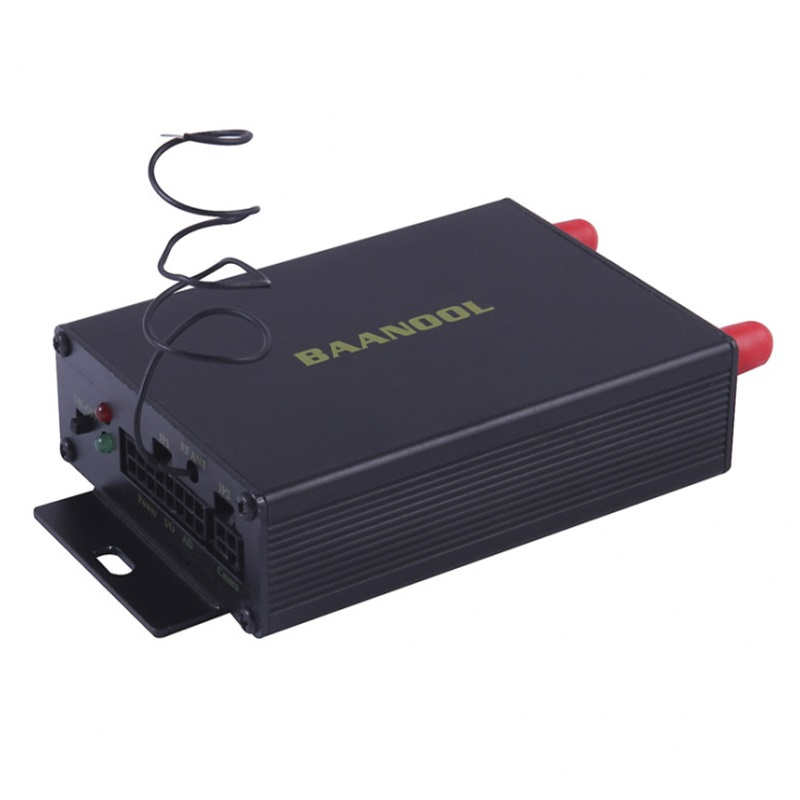

Fuel Sensor Application Program Tracking System GPS Bn-105A Vehicle Tracking System

Prod Model:	BN-105A
Type:	GPS Tracker
Use:	Automotive
Model:	Bn-105A

Product Description

Fuel Sensor Application Program Tracking System GPS Bn-105A Vehicle Tracking System


Product description
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
1.Function Introduction
1.1 GPS/LBS (location based service) double way tracking solution.
1.2 SMS/GPRS/Internet Network data transmission.
1.3 Configure by remote terminal, remote control vehicle.
1.4 Snapshoot photo automatically when alarm triggered
1.5 RFID.
1.6 Fuel level measurement, Oil leakage or theft alarm.
1.7 Vehicle Speed Detection.
1.8 Kilometragereport.
1.9 Tracking and monitoring by SMS, web server and mobile app.
2.Applications
Used widely for vehicle and other moving objects tracking and management.

Basic functions:
1. Tracking by GPS and location base service both even in building, underground and garage
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, SOS button ,Low battery alarm, Geo fence,Overspeed Alarm , Power off alarm
10 Engine -cut and restore alarm by SMS GPRS
11, Door, windows alarm get by SMS
12, Movement alert sensor
13, Forward the third parties' message
14. With direction and heading value
15. Optional vibration sensor and fuel sensor
16. Optional camera
17 Support SD card function
Installation wiring diagram
Unit installation wiring diagram
6.2.1.1.choose only one from vehicle Speed detection and fuel measurement.
6.2.1.2.For vehicle Speed detection, white with black wire directly connect to speed sensor signal wire of car gearbox.
6.2.1.3.For fuel measurement, white with black wire connect to fuel sensor signal wire
Package Include: (No retail box)
1pc* GPS Tracker BN-105A
1pc* GPS Antenna  3 meters long
1pc* Microphone
1pc* Relay
1pc* User Manual
