Fuel Sensor to Do Fuel Consumption Monitoring

Name: Fuel Sensor to Do Fuel Consumption Monitoring
Brand: all-electronics-online.com
SKU: 674184442
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fuel Sensor:	Fuel Level Sensor
Resolution: 0.5mm:	Accuracy: 0.5%
Could Be Cut Off According To Different:	Esay Install
Output:	Digital Sensor, Analog Sensor
Usage:	Fuel Sensor
Theory:	Fuel Sensor
Material:	Industrial Aluminium

Product Description

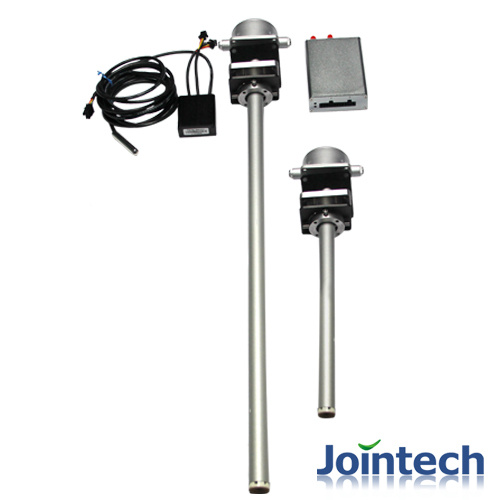

Fuel sensor to do fuel consumption monitoring

Combined with the top sensor technology in the world, JT606X capacitive fuel level sensor was independently developed by JOINTECH, a number of innovative patented technologies enable JT606X to continuously detect the liquid level with the high resolution(<1mm), as well as adjust the length to fit different fuel tanks on the spot, and replace the original vehicle fuel level sensor to connect the original fuel meter.

Fuel sensor JT606X has been widely applied to the remote fuel consumption monitoring and management of logistics fleet, genset, buses, coaches, construction machineries, etc.

Fuel sensor JT606X Features:
1.     Resolution: <1mm , Accuracy: <0.5%
2.     Cuttable on site to fit the tank height
3.     Wide voltage input: 4-70V
4.     Patented technology: Simple-installation flange
5.     Multi-signal output: RS485/RS232/Voltage/Resistance/Current
6.     On-site calibration and remote parameter configuration

Dimension(LWH)	1218229mm
Weight	820g(including standard accessories)
Working Current	60-100mA
Working Voltage	10-30V
Backup Battery	8.4V 400mAh NI-MH battery
GPS Chip	SIRF Star III
GSM	850/900/1800/1900 Mhz
