Full Range AC/DC T-60d Triple Output Power Supply, 5V 12V 24V 48V

Name: Full Range AC/DC T-60d Triple Output Power Supply, 5V 12V 24V 48V
Brand: all-electronics-online.com
SKU: 839679605
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 12.5-14/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-60
Output Type:	Single
Warranty:	1 Year
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

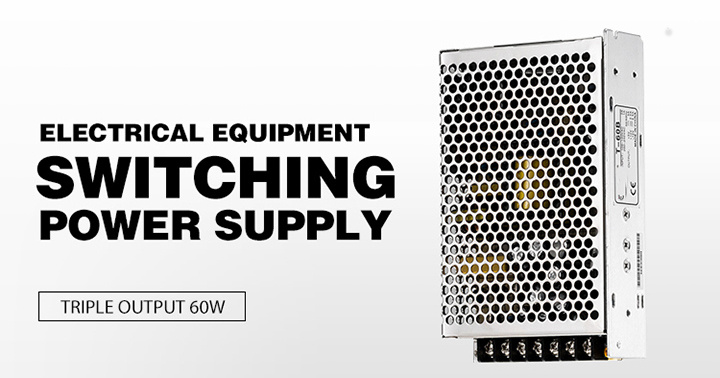

60W Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

Full range ac/dc T-60D triple output power supply

Model	T-60A			T-60B			T-60C
Model	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
DC output voltage	5V	12V	-5V	5V	12V	-12V	5V	15V	-15V
Output voltage range(Note:2)	±2%	±6%	±8%	±2%	±6%	±8%	±2%	±6%	±8%
Rated output current	5A	2.5A	0.5A	5A	2.5A	0.5A	5A	2A	0.5A
Output current range	0.5-7A	0.2-3.5A	0-0.1A	0.5-7A	0.2-3.5A	0-1A	0.5-7A	0.2-3A	0-0.1A
Wave and noise(Note:3)	100mVp-p	120mVp-p	100mVp-p	100mVp-p	120mVp-p	120mVp-p	100mVp-p	120mVp-p	120mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load stability(Note:5)	±0.5%	±4%	±6%	±0.5%	±4%	±6%	±0.5%	±4%	±4%
DC output power	57.5W			61W			62.5W
Efficiency	72%			72%			72%
Adjustable range for DC voltage	CH1; +10, -5%			CH1; +10, -5%			CH1; +10, -5%
Input current	2A/115V 1A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	CH1: 5.75~6.75V
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	1.6ms, 50ms, 16ms/115VAC 800ms, 50ms, 60ms/230VAC
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	159×97×38mm
Weight	0.56Kgs
Safety standards	CSA international mark approved (CSA950, UL 1950, IEC950, EN60950)
EMC standards	CISPR22(EN55022), IEC801-2,-3,-4,IEC555-2 Verification

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
