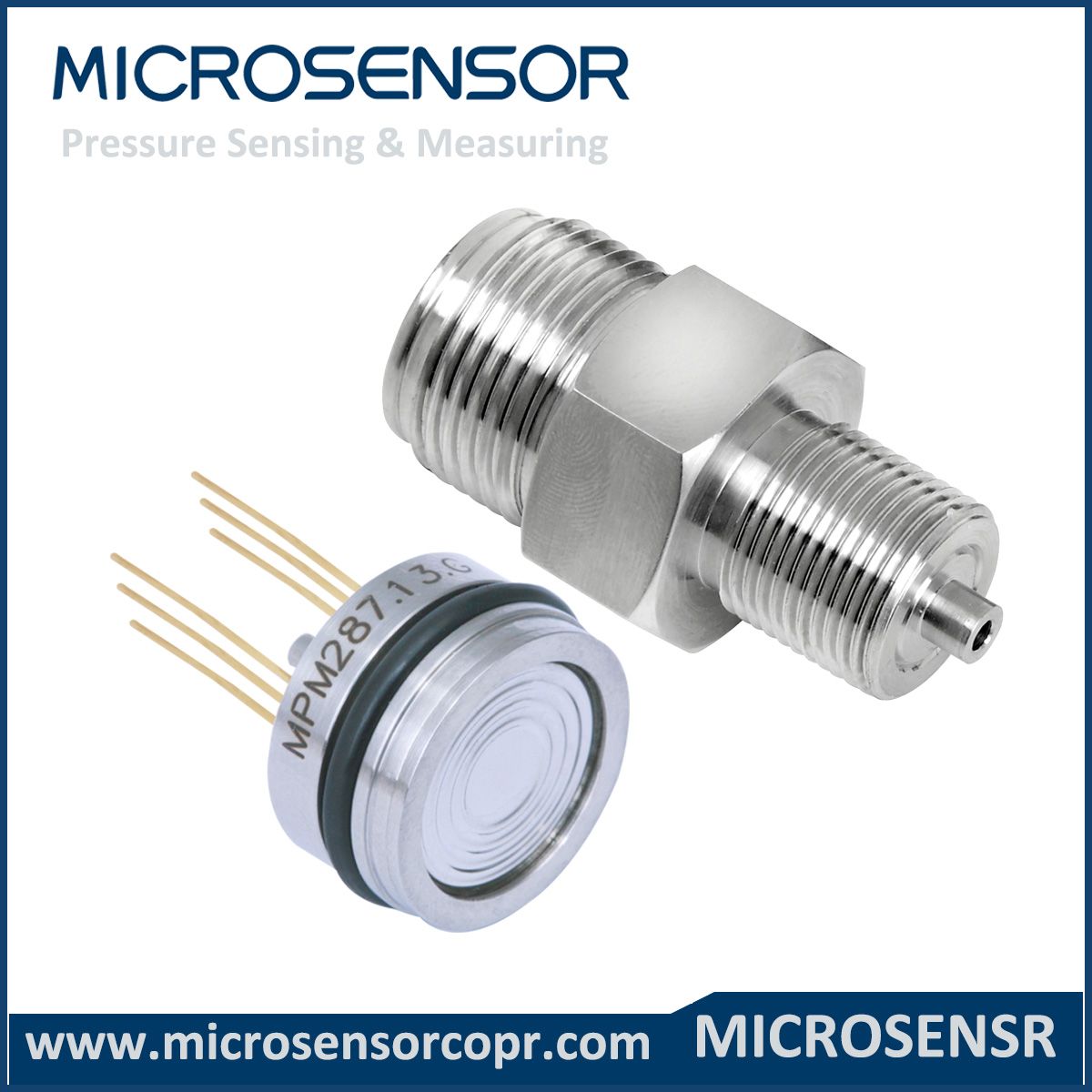

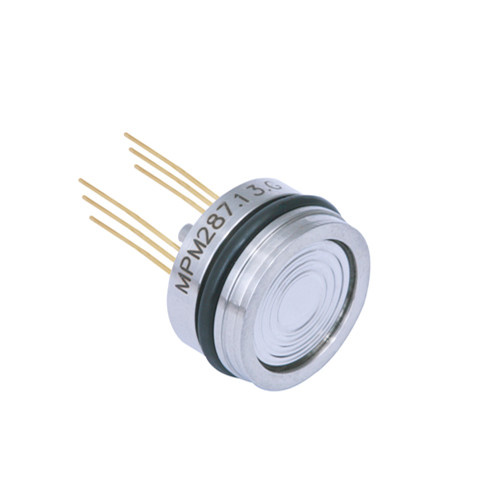

Full Stainless Steel 19mm Pressure Sensor Mpm287
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MPM287 |
| Pressure Range: |
0kpa~100kpa...3.5MPa |
| Pressure Type: |
Gauge/ Absolute / Sealed Gauge |
| Total Accuracy: |
0.075%Fs |
| Diaphragm: |
Ss316L |
| Diameter: |
19mm |
| Over Pressure: |
1.5 Times Fs |
| Protection: |
IP65 |
| Storage Temp: |
-40-125c |
| Working Temp: |
-40-125c |
| Compansated Temp.: |
0-70c |
Product Description
Full Stainless Steel 19mm Pressure Sensor Mpm287 Features:1. Full Stainless Steel;
2.19mm;
3.Compact size;
4. Cost-effective;
5.Isolated Construction
Application:1. Industrial process control 2 .Level measurement 3.
Gas, liquid pressure measurement3.Pressure checking meter 4 .Pressure calibrator 5.Liquid pressure system and switch6.Cooling equipment and air conditioning system 7.Aviation and navigation inspectionElectric PerformancePower supply: ≤2.0mA DC Electric connection: Kovar pin / 100mm silicone rubber flexible wireCommon mode voltage output: 50% of input (typ.) Input impedance: 2.5kΩ~5kΩOutput impedance: 3.5kΩ~6kΩResponse (10%~90%):<1msInsulation resistor: 100MΩ, 100V DC Overpressure: 1.5 times FSConstruction PerformanceDiaphragm: stainless steel 316L Housing: stainless steel 316L Pin: Kovar O-ring: Viton Net weight: ~11gEnvironment ConditionPosition: deviate 90°from any direction, zero change ≤±0.05%FSShock: no change at 10gRMS, (20~2000)Hz Impact: 100g, 11msMedia compatibility: the gas or liquid which is compatible with construction material and VitonBasic ConditionMedia temperature: (35±1)ºC Environment temperature: (35±1)ºC Shock: 0.1g (1m/s2 )Max Humidity: (50%±10%)RHLocal air pressure:(86~106)kPa Power supply: (1.5±0.0015)m ADCOrder Guide:| MPM287 | Pressure Sensor |
| | | c | Pressure range | Ref. | Range code | Pressure range | Ref. |
| 03 | 0kPa~100kPa | G.A | 10 | 0kPa~1000kPa | G.A |
| 07 | 0kPa~200kPa | G.A | 12 | 0MPa~2MPa | G.A |
| 08 | 0kPa~350kPa | G.A | 13 | 0MPa~3.5MPa | G.S.A |
| 09 | 0kPa~700kPa | G.A | | | |
| | | Code | Pressure type |
| G | Gauge |
| | A | Absolute |
| | S | Sealed gauge |
| | | Code | Pressure connection |
| 0 | O-ring |
| | | Code | Compensation |
| L | Laser trimming |
| | | Code | Electric connection |
| 1 | Kovar pin |
| | 2 | 100mm silicone rubber flexible wire |
| | |
| MPM285 08 G 0 L 1 the whole spec |
Order Note 1. We suggest you to use Floating construction when you install the sensor to prevent affecting sensor stability;2. Please pay attention to protect sensor isolated diaphragm and ceramic compensated board, to avoid damaging sensor or affecting the performance;3. Temperature resistant range of standard Viton O-ring of sensor is -20ºC ~ 250ºC. When working temperature is lower than -20ºC, or sensor is applied in critical environment, please contact us.
Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.
With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.
Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.
Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.
Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
