| Prod Model: |
SVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
130-250V 160-250V |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
Product Description

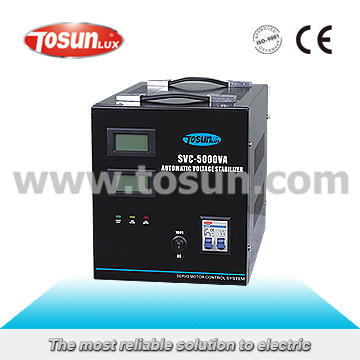

SVC Single Phase Voltage Stabilizer

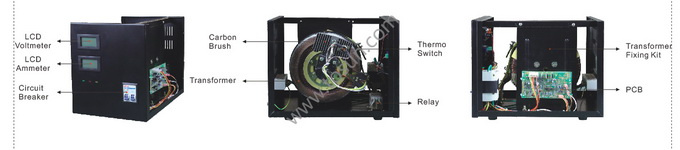

ApplicationSVC fully automatic AC voltage stabilizer consists of cotnact voltage regulator, sampling control circuit and servo motor. When input voltage or load changes, sampling control circuit will sample and amplify the voltage, and the servo motor will ratate in the desired direction, which turns the arm, adjusting voltage until the output voltage is regulated into the rated output voltage.
The product I of small size, light weight, less output waveform distortion and reliable performance. To guarantee its quality, foreign advanced technology and main parts are introduced and imported. It's widely used in electrical appliances which need constant voltage power supply, and in fields of industry producing, scientific research and medical hygiene.
The product itself consumes little and can be continuously used for a long time.
SpecificationInput Voltage | 130V-250V 160V-250V |
Output Voltage | 220±3% with 110V±3% |
Phase | Single Phase |
Frequency | 50/60Hz |
Response Time | Within 1 sec.against 10% input voltage deviation |
Efficiency | Better than 90% |
Ambient Temperature | -5ºC~+40ºC |
Relative Humidity | Less than 95% |
Waveform Distortion | Non-lack fidelity in waveform |

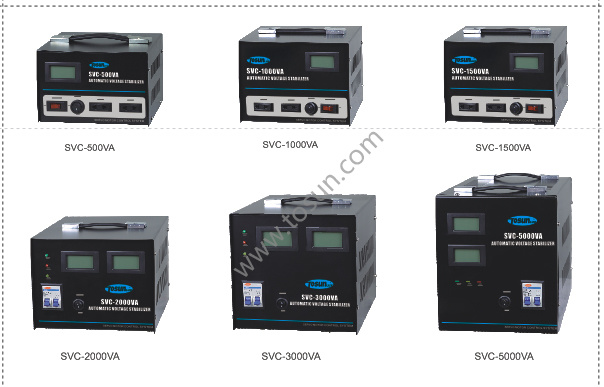

Model | Output Power | Dimension |
Length(mm) | Width(mm) | Height(mm) |
SVC-500VA | 500VA | 197 | 186 | 140 |
SVC-1000/1500VA | 1000/1500VA | 217 | 210 | 173 |
SVC-2000VA | 2000VA | 245 | 303 | 203 |
SVC-3000VA | 3000VA | 239 | 317 | 240 |
SVC-5000VA | 5000VA | 227 | 351 | 275 |
SVC-8000VA/10000VA | 8000/10000VA | 246 | 424 | 327 |
