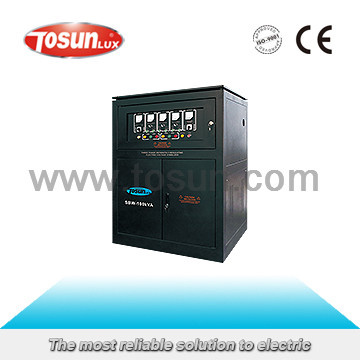

SBW Three Phase Compensated Voltage Stabilizer

Name: SBW Three Phase Compensated Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 766395135
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 1800-29800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-100KVA Separately-regulating type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ambient Temperature Of Use:	0ºC-40ºC
Relative Humidity:	<90%
Current Type:	AC
Phase:	Three Phase
Frequency:	Intermediate Frequency

Product Description

Application

SBW Three Phase Compensated Voltage Stabilizer is a contact adjustable automatic voltage compensation high-power regulating power device. When volatge from supply network is varied or due to loading current effect, it automatically regulates the output voltage to ensure the normal function of the variesd of electric equipments.
1.Whole power-supply of small plant.
2.Power-supply of workshop or department of large, medium industrial or mining enterprises.
3.Form a complete set with single-machine

Demanded Environment
1.Ambient temperature of use: 0ºC-40ºC
2.Ambient temperature of storage and transport: -40ºC-60ºC
3.Relative humidity: <90%
4.Without corrosive, flammable and explodable and other conductive gas which might influence insulation of voltage regulator.

Features
1.Input: three phase and four-line system Voltage: 176V-250V Line Voltage: 304V-432V
2.Output: three phase and four-lines system Voltage: 210V-230V Line Voltage: 361V-399V
3.Input & Output terminal(phase line and middle line) can bear sinusoidal voltage with power frequency 50Hz 3000V to machine stand for 1 minute
4.Efficiency: it is better than 98% if voltage regulator operates with normal power
5.Additional waveform distortion of output voltage <1%

Output Current

Norminal Power (KVA)	50	100	150	200	250	300	350	400	450	500	600	800	1000
Rated Phase Current (A)	76	152	228	304	379	455	531	607	682	758	910	1213	1516
