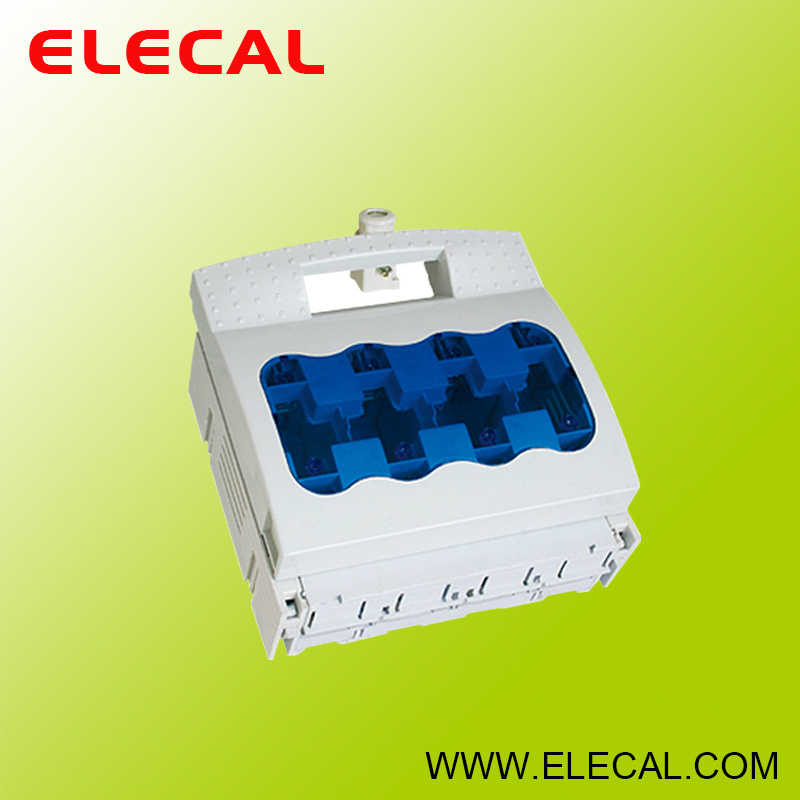

Fuse Disconnector

Name: Fuse Disconnector
Brand: all-electronics-online.com
SKU: 766398535
Availability: InStock
Rating: 4.8 (43 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fuse Disconnector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low
Type:	Current Fuse
Usaga:	Low Voltage

Product Description

1.Application
The product is used in distribution circuit and motor circuit of current 50Hz, rated operational frequency 660V under, and rated current 100-630A, also used in high-short-circuit as power switch, isolating switch and emergency switch protecting circuit. Fitted with NT(RT16)fuse. It conforms to IEC60947-3.

1.Specification

Switch Rating Heat Current (A)	Number of Poles	Assorted Fuse	Rated Current (A)
160	3, 4	NT00	4,6,10,16,20,25,32,35,40,50,63,80,100,125,160
250		NT1	80,100,125,160,200,224,250
400		NT2	125,160,200,224,250,300,315,355,400
630		NT3	315,335,400,425,500,630

2.Dimension

Model	Assorted Fuse	A	B	C	D	a	b	c
HR17-160/30	NT00	106	200	83	205	66	25	7
HR17-250/30	NT1	185	247	110	295	114	50	11
HR17-400/30	NT2	210	290	125	340	130	50	11
HR17-630/30	NT3	256	300	145	360	162	50	11
HR17-160/40	NT00	138	200	83	205	100	25	7
HR17-250/40	NT1	242	247	110	295	172	50	11
HR17-400/40	NT2	276	290	125	340	195	50	11
HR17-630/40	NT3	340	300	145	360	243	50	11

Model	Assorted Fuse	A	B	C	D	E	a	b	c
HR18-160	NT00	105	184	88	160	43	73	25	7
HR18-250	NT1	184	268	116	230	66	115	50	9
HR18-400	NT2	210	285	129	256	81	140	50	9
HR18-630	NT3	250	328	138	315	86	150	50	9

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
