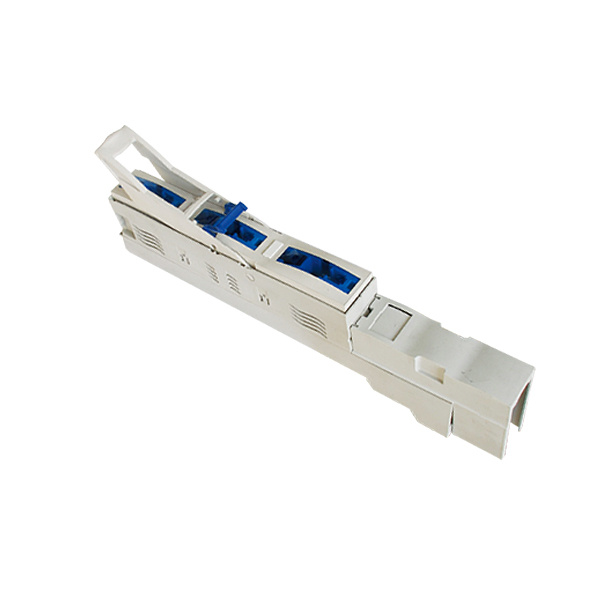

Hg2b Fuse Disconnector

Name: Hg2b Fuse Disconnector
Brand: all-electronics-online.com
SKU: 766398605
Availability: InStock
Rating: 4.3 (75 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low
Type:	Current Fuse
Usaga:	Low Voltage

Product Description

1.Application
The product is used in distribution circuit and motor circuit of current 50Hz, rated operational frequency 660V under, and rated current 100-630A, also used in high-short-circuit as power switch, isolating switch and emergency switch protecting circuit. Fitted with NT(RT16)fuse. It conforms to IEC60947-3.

1.Specification

Model	Assorted Fuse	Switch Rating Heat Current (A)	Rated Current (A)
HG2B-160A	NT00	160	4,6,10,16,20,25,32,35,40,50,63,80,100,125,160
HG2B-250A	NT1	250	80,100,125,160,200,224,250
HG2B-400A	NT2	400	125,160,200,224,250,300,315,355,400
HG2B-630A	NT3	630	315,335,400,425,500,630
