| Prod Model: |
OnAccess G4104C-W |
| LAN Port: |
4X RJ45 Ports |
| Voltage: |
DC 5V , < 5W |
| Operating Temperature: |
0 ~ 55 Degrees |
| G.Hn Port: |
1 X G.Hn Ports |
| WiFi: |
Support |
| Dimension: |
174mmx 130mm X 33mm |
| Weight: |
400g |
| Certification: |
RoHS |
| Condition: |
New |
| Wiring Devices: |
Coaxial Cable |
Product Description
G.hn Gigabit Ethernet over Coax Cable EOC Modem Node
OverviewOnAccess G4104C-W is an CPE designed for "triple play" services based cable network. It is a high-performance and cost-effective device supporting Ethernet-based data and 802.11n WLAN services.
The integrated 802.11n WLAN network offers stable and reliable wireless connections for speed multimedia and data traffic.

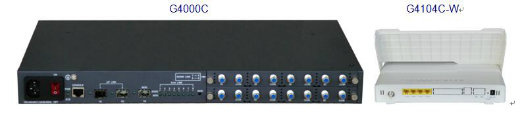

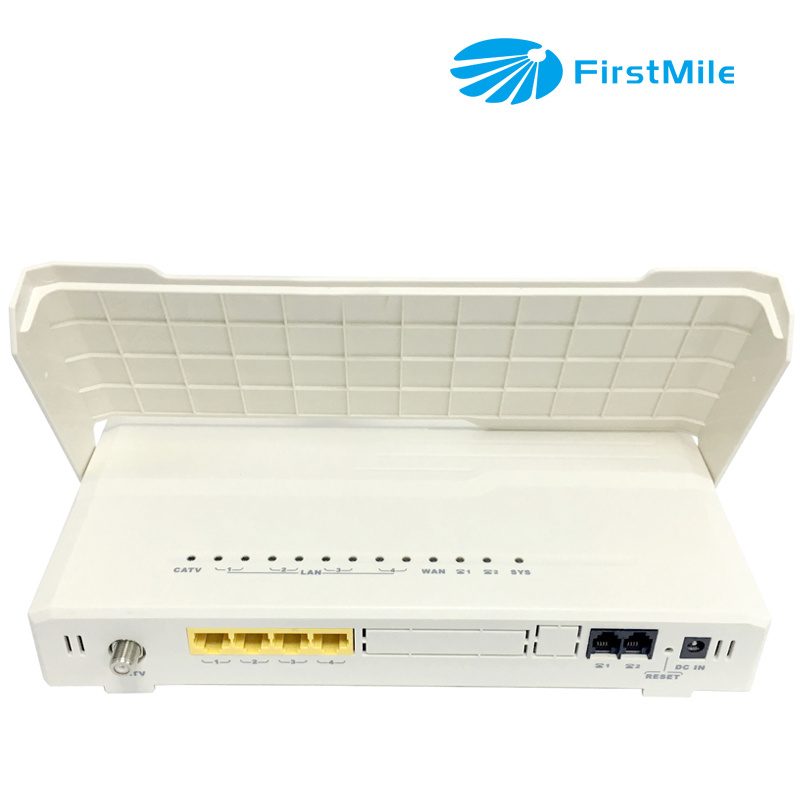

OnAccess G4104C-W belongs to OnAccess G4000C system which includes headend device(G4000C) and client device(G4104C-W). Product photos are shown as below.
OnAccess G4104C-W is also ready to serve packet television (IPTV) and VoD (Video on Demand) applications.
FeaturesManagement
Web-based user interface (HTTP), CLI and SNMP
Supports TR-069 Management
Quick Start Wizard
Configuration backup and restore
Firmware upgrade via TFTPManagement session time out
Three levels of user authorization (superuser, administrator and guest)
SFP internal ID and status monitoring capability
Built-in Diagnostic Function
Syslog
Supports IP Version IPv4 and IPv6
System memory up to 64M Bytes
System CPU frequency up to 384Mhz
Provides one reset button.
Network
Provides one RF connector for G.hn connection
Provides four 10/100Mpbs auto-negotiation Ethernet LAN ports
Supports 802.3x flow control
Supports four LAN ports configuration
Maximum packet lengths up to 1518 / 1522 (Default) / 1536 bytes
Supports port aging timer configuration
Supports 802.1p, port-base, DiffServ QoS package classification with four priority queues
Supports SP, WRR Queue Scheduling Algorithm
High speed Layer 3 routing
Network Address Translation (NAT)
Maximum number of concurrent NAT sessions up to 32768
Supports Multi-VLAN
Supports DHCP Server and DHCP Option
Dynamic DNS
Supports NTP Client
Supports UPnP
IGMP Proxy V1/V2
Static NAT
Supports DMZ host
VPN Pass-through(IPSec/PPTP/L2TP)
Port Forward
Supports LLTD
Supports 802.1D STP
MAC Address/IP/Port Filter
Web URL/Host Filter
Content Filter
SPI (Stateful Packet Inspection) firewall
DoS (Denial of Service) Defense
WAN network interface support Fixed IP, DHCP Client, PPPoE, PPTP and L2TP
Supports VPN
Support 8 VPN Tunnels
Remote Dial in or LAN to LAN
Tunnel Protocol: IPSec, PPTP, L2TP, L2TP over IPSec
Encryption: 3DES, AES
Authentication: MD5, SHA
IKE Authentication: Pre-shared Key
PPTP Encryption MPPE
VPN Aggressive Mode/Main mode
VPN Pass-through (IPSec/PPTP/L2TP)
Wireless Access Point
Compatible with wireless IEEE802.11b, IEEE802.11g and IEEE 802.11n standard product
Provides 300Mbps transmission rates
Wireless Client List
Supports 64/128-bit WEP, WPA, WPA2, WPA1WPA2, WPA-PSK, WPA2PSK, WPAPSKWPA2PSK and 802.1X encryption methods
Supports Hidden SSID and Multiple SSID
Supports TxPower adjustment
Supports Wireless Client Access Control
Supports Wireless WAN.
Supports WDS Lazy mode, Bridge Mode and Repeater Mode
Supports WPS, provides one WPS button(Multi-function button with Wireless on/off)
Supports WMM (Wi-Fi Multimedia)
Supports AP Discovery
Technical Spec
Physical and Environmental| G.hn Port | One G.hn input port |
| LAN Ports | Four RJ-45s, Automatic MDI/MDIX crossover for 100BASE-TX and 10BASE-T ports.
IEEE 802.3u Auto-Negotiation support for automatic speed and duplex selection.
10BASE-T/100BASE-TX cable length up to 100 meters |
| Power Supply | DC5V using external adaptor |
| Power Consumption | < 5 W |
| Operating Temperature | 0ºC~+60ºC |
| Storage Temperature | -40ºC~+85ºC |
| Humidity at 85 °C | 5%~95% |
| Size | 174mm X 130mm X 33mm |
| Weight | 0.3Kg |
| Installation | Indoor |
Protocols and Standards
IEEE802.3 10Base-TX Ethernet
IEEE802.3u 100Base-TX fast Ethernet
IEEE802.3u 100Base-FX fast optical Ethernet
IEEE802.3ah 100Base-BX10 fast optical Ethernet (Single bi-directional fiber)
IEEE802.3x flow control
802.1D STP
IEEE802.11 b/g/n
IEEE802.1x
TCP/IP, DHCP, RTCP, HTTP, NTP, IGMP, SNMP and UPnP
Approvals
| Safety | EN60950 |
| Emission | EN55022 1998 Class B, EN55011 |
| Immunity | EN55024 1998, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 |
| ESD | EN61000-4-2 |
Reliability
MTBF: >50,000 Hours

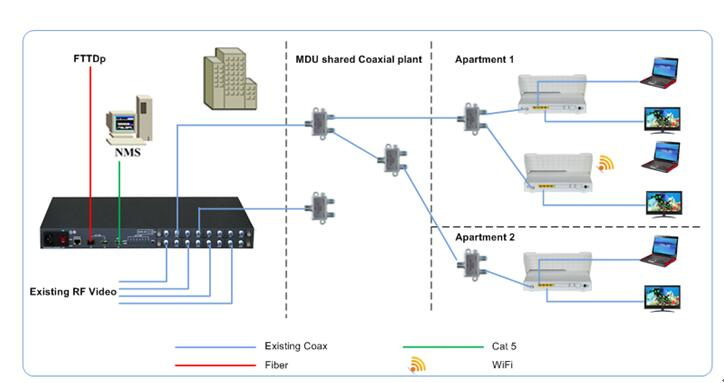

Application Diagram
