| Prod Model: |
OnAccess SC2602 |
| Dimension: |
440mm*265mm*44mm |
| Operation Temperature: |
0°c to +55°c |
| Ambient Relative Humidity: |
10% to 90% |
| Warranty: |
5 Years |
| Downlink: |
24xg.Now |
| SFP Port: |
10ge SFP |
| Weight: |
4kg |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
G.Hn |
| Wiring Devices: |
Fiber Optic Switch |
Product Description
Pon Uplink Ethernet over Coaxial Cable FTTH Solution with Reverse POE
OnAccess SC2602 is based G.hn technology that enable data rates up to 1Gbit/s over existing cable infrastructure to address issues associated with FTTH(Fiber to the home) applications. FTTH is expensive to implement in brown fields because of expensive labor, scattered population, problems with home fiber wiring, and slow roll-outs. OnAccess SC2602 G.hn-Based FTTDp (Fiber to the distribution point) solution has an impressive performance, is easier to deploy and provides substantial CAPEX savings when compared to traditional FTTH alternatives.
OnAccess SC2602 enable SP to deliver FTTH-class service to MDU apartments while avoiding the costs of replacing copper wires with fiber. These increased data rates ensure the access network is future-proof and ready to provide new services such as multi-stream 4K IPTV, cloud-based storage or 802.11ac wireless hotspots.
Features
Available spectrum up to 100MHz
Configure downlink rate ratio flexibly
Radio frequency slotted function
Automatic management NEXT and FEXT
Built-in low-attenuation voice separator
Centralized management remote, such as configure remote, batch upgrade remote firmware, remote status, performance control
High performance 2 layer Ethernet switching
STP,RSTP,MSTP
Port-based VLAN and Tagged VLAN(802.1Q)
IGMP Snooping
DHCP Snooping,ARP detection
Strong 1~4 layer packet filter
Port isolation
Port rate limit
Port mirroring
Each port MAC address limit
Storm control
Various QoS capability (IEEE 802.1p / port / DSCP/ToS)
SP,WRR queue scheduling
Various management ways(Web,CLI,Telnet,SNMPv1/v2c/v3)
Fan status control
Local firmware upgrading, configuration document back up, configuration document restore
System log
Web management
CLI management
SNMP management
Performance parameters
| Uplink port | 1×GPON port, 1×1G Combo port |
| Downlink port | 1×24G.now port |
| Shell | Aluminum |
| Operation temperature & storage temperature | -25ºC ~ 65ºC/-40ºC~85ºC |
| Environment | Indoor |
| Input voltage & consumption | 100VAC~240VAC ≤90W |
| Humidity | 10% ~ 90% RH Non-condensing |
| Dimension, weight | 440mm*265mm*44mm,4.5Kg |

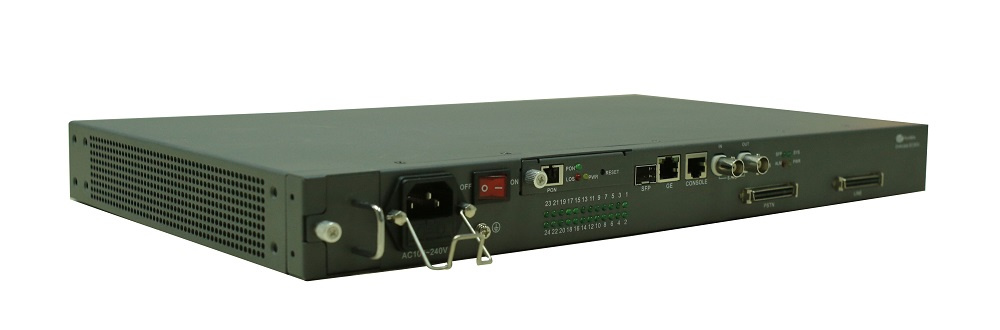

Product photo
Application diagram
Ordering Information
| Model | Port configuration | Description |
| OnAccess SC2602 | 1×GPON Port, 1×1G Combo Port
1× PSTN DB50 Telephone Port,1×G.now DB50 Port
Console:RS232(RJ45) | Local device which Applied to twisted pair |
| OnAccess SC2602-1 | 1×GPON Port, 1×1G Combo Port
1×G.now DB50 Port
Console:RS232(RJ45) | Local device which Applied to twisted pair |
| OnAccess CM2604P | Input: 1×G.now Uplink Port(RJ-11)
Output: 1×10/100/1000BaseT Ethernet Port;1×10/100BT iTV Port(RJ-45);1×SIP telephone output port(RJ-11) with converse POE | Client access device which applied to twisted pair |
DB50-3-5
(Accessory) | G.now Output orTelephone line input | G.now output line,
Length: 3m,
Wire diameter:0.5mm |
