| Prod Model: |
OnAccess SC2604-P |
| Dimension: |
440mm*265mm*44mm |
| Operation Temperature: |
0°c to +55°c |
| Ambient Relative Humidity: |
10% to 90% |
| Warranty: |
5 Years |
| Downlink: |
24xg.Now |
| SFP Port: |
10ge SFP |
| Weight: |
4kg |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
G.Hn |
| Wiring Devices: |
Fiber Optic Switch |
Product Description
Pon Uplink G.hn G.now Slave CPE Reverse Poe
FirstmileG.now system includes local device and client device.OnAccessG4024T,OnAccessSC2602 deployed fiber distribution point are local devices. OnAccessG4102T,OnAccessCM2604 OnAccessCM2604-P installed customer's home are client devices.
In a Fiber to the Building (FTTB) network solution, FirstmileG.now system devices can deliver high-speed networking over legacy home wires with significantly lower installation and operating costs, the legacy home wires are those using coaxial cables, telephone lines or power lines.
SIP VoIP function, which can make for copper, PTSN device back network,is built in OnAccessCM2604. So this kind of device comes up to the trend of IP-based network.
Features:- Network access modem function, uplink supports G.hn protocol standard
- VoIP
- Customer side LAN access function
- Customer side iTV access function
- Remote management device and configuration by using ITMS system
Network service - IPv4/IPv6 dual stack
- DHCP server, DHCP relay
- WAN port support static IP,DHCP customer port, PPPoE dialing
- DNS agency
- Network address transform
- Static routing
- Application gateway
- DMZ
- Virtual server
- SNTP
- PPPoE pass-through
- uPnP
- DSCP/802.1p tag
- IGMP Snooping v1/v2/v3
- IGMP QoS
- Port banding
- Port-based VLAN
- Bandwidth control
- Traffic shaping, SP, WRRScheduling Policy
- IPAlias
- VPN(IPSec,PPTP,L2TP) pass-through
- DHCP option 60
VoIP- G.711 A/U
- G.711 VAD/CNG
- G.729 Annex A/B
- G.722
- G.726
- FAX: G.711 pass-through/T.38
- Eliminating echo up to 48ms
- RTP/RTCP,measure up to RFC3350
- Static & adaptive jitter buffer, up to 700ms
- Caller ID, type1 & type 2
- Call transfer, call back, Do Not Disturb
- Anonymous call, call blocking
- Three-way calling
- Digit map, dial plan
- Volume adjustment
- DTMF generation and detection, in band DTMF&RFC2833 DTMF
Security- Block port scanning and message attacking
- DoS attack protection
- SYN flood protection
- Ping of Death
- LAN and WAN side management access control
- Smurf attack, TCP empty scan
- Stateful packet inspectionSPI
- IP filter
- MAC address filter
Device Management- Web interface configuration
- Telnet management
- Firmware upgrade
- TR064, TR06, TR098,TR-111,TR-143
- SNMP v1/v2c/v3
- IP Ping, diagnosis tool
- 2 levels user authority
- Performance parameters
| Specifications |
| Input | 1×G.now uplink port(RJ-11) |
| Output | 1×10/100/1000BaseT Ethernet port; 1×10/100BTiTV port(RJ-45); 1×SIP phone output port(RJ-11) |
| Shell | Aluminum |
| Operation temperature and storage temperature | 0ºC ~ 40ºC/-40ºC~85ºC |
| Environment | Indoor |
| Input power and consumption | 12VDC adapter |
| Humidity | 10% ~ 90% RH non-condensing |
| Dimension,weight | 160mmX120mmX32mm,0.35Kg |

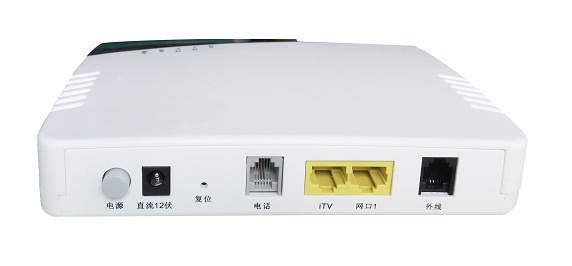

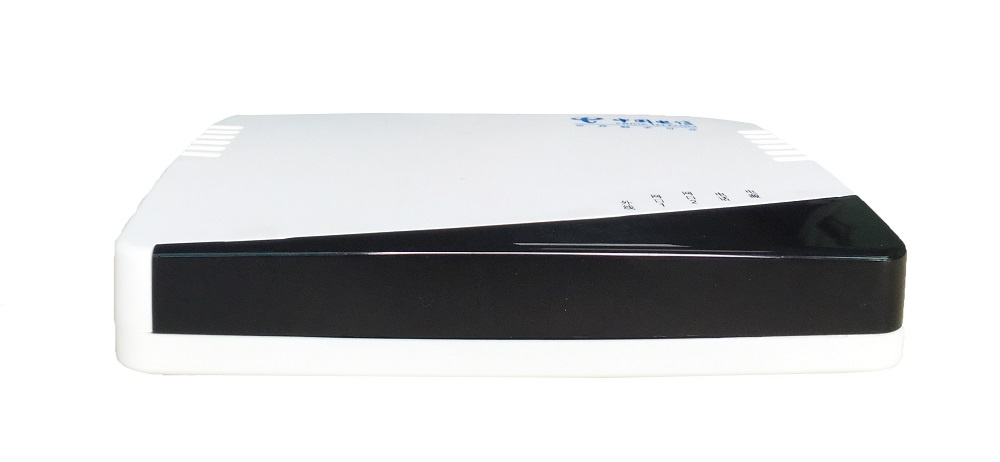

Product photo

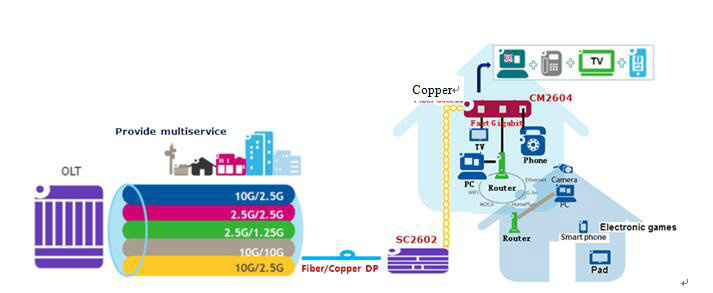

Application diagram
Ordering Information
Model | Port configuration | Description |
OnAccess SC2602 | 1×GPON Port, 1×1G Combo Port 1× PSTN DB50 Telephone Port,1×G.now DB50 Port Console:RS232(RJ45) | Local device which Applied to twisted pair |
OnAccess SC2602-1 | 1×GPON Port, 1×1G Combo Port 1×G.now DB50 Port Console:RS232(RJ45) | Local device which Applied to twisted pair |
OnAccess CM2604P | Input: 1×G.now Uplink Port(RJ-11) Output: 1×10/100/1000BaseT Ethernet Port;1×10/100BT iTV Port(RJ-45);1×SIP telephone output port(RJ-11) with converse POE | Client access device which applied to twisted pair |
DB50-3-5 (Accessory) | G.now Output orTelephone line input | G.now output line, Length: 3m, Wire diameter:0.5mm |
